Park Systems Z-Servo True Non-Contact AFM for Critical Dimension Metrology

Topic List

Background
AFM and the Semiconductor Industry
High Performance Z-Servo
High Aspect Ratio CD Measurement
Conclusion

Background

Park Systems is the Atomic Force Microscope (AFM) technology leader, providing products that address the requirements of all research and industrial nanoscale applications. With a unique scanner design that allows for the True Non-Contact imaging in liquid and air environments, all systems are fully compatible with a lengthy list of innovative and powerful options. All systems are designed with ease-of-use, accuracy and durability in mind, and provide your customers with the ultimate resources for meetiong all present and future needs.

Boasting the longest history in the AFM industry, Park Systems' comprehensive portfolio of products, software, services and expertise is matched only by our commitment to our customers.

AFM and the Semiconductor Industry

Atomic Force Microscopy (AFM) is emerging as an essential tool in the semiconductor industry. As aspect ratios become higher, features become smaller, and requirements for planarity tighten, AFM has begun to replace profilometry both in development and in production, for topographic measurements such as trench and via depths, step height, and micro-planarity measurements. The critical dimensions remain as a major challenge to previous AFMs employed as a semiconductor metrology tool. These AFMs based on tube scanners do not have the sufficient Z-servo speed to properly measure the high aspect ratios of feature sizes. Park Systems, the original pioneer of AFM technology, has changed the concept of AFM by introducing the XE-series AFM (See XE-series product datasheets). With its revolutionary XE scan system, the Z-scanner has a ten times higher bandwidth than previous AFMs in the market. Such extraordinary Z-servo performance can afford high speed Z-scanner feedback and enable True Non-Contact AFM. In this application note, the high performance of Z-servo is demonstrated in the critical dimension measurement of high aspect ratio trenches using XE's True Non-Contact AFM.

High Performance Z-Servo

The XE scan system is a core feature that gives the XE-series AFM its competitive edge. Park Systems's innovative scanner design separates the Z-scanner from the XY, as shown in Figure 1 (a), enabling exceptional Z-servo performance and scan accuracy, unmatched by other AFMs.

The Z-scanner, being separate from the XY-scanner, is designed to have a higher resonant frequency than conventional piezoelectricelectric tube scanners. For this reason, a stacked piezoelectric actuator is used for the Z-scanner, which has a very fast response speed with at least 10 kHz resonant frequency, resulting in a high push-pull force. This enables more than 10 times the scan rates of a conventional piezoelectric tube type scanner, vastly increasing the speed of the measurements as shown in see Figure 1 (b)). Since the Z-servo response of the XE scan system is very fast, the probe can precisely follow the steep curvature of a sample without crashing or sticking to the surface, enabling True Non-Contact AFM (see True Non-Contact XE Mode notes). The majority of sample images by the XE-series AFM is done in True Non-Contact AFM. Therefore, the high performance of Z-servo not only boosts the speed of a profiling scan (consequently the throughput), but also protects the tip, resulting in XE's ability to acquire clear images for an extended period of time.

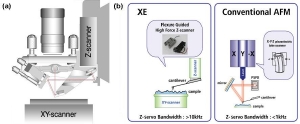

Figure 1. (a) XE Scan System separates the Z-scanner from the x-y, enabling exceptional Z-servo performance and scan accuracy. (b) Comparison of Z-scanner designs between XE and conventional piezoelectric tube based AFM. The XE's Z-scanner is a flexure guided high force Z-scanner with Z-servo bandwidth of more than 10 kHz.

Figure 2. (a) Image of a shallow trench sample by True Non-Contact mode. (b) SEM image of a high aspect ratio tip before imaging, and (c) SEM image of the same high aspect ratio tip after imaging the same area ten times.

High Aspect Ratio CD Measurement

The high performance of the Z-servo in XE-series AFM is exemplified in Critical Dimension (CD) Metrology, as shown in Figure 3. The image was taken in True Non-Contact mode using a normal 5:1 high aspect ratio tip. This high aspect ratio sample has a very narrow and deep trench, where the width and the depth are about 160 nm and 550 nm accordingly. Not only are these kinds of images impossible to obtain using a conventional AFM, but they can also rival the performance of a CD SEM without having to cut the sample. It is the high performance of the Z-servo that allows the tip to go down and reach the bottom of the trench and climb up the trench wall instantly without distorting the sample image. Sufficient bottom travel allows the collection of enough data points to effectively represent the bottom of the trench.

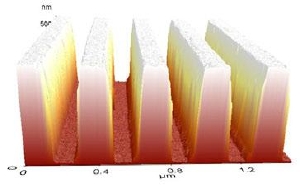

Figure 3. True Non-contact-AFM image of 0.16 µm wide, 0.55 µm deep trenches shown in 1:1 aspect ratio 3D rendering (1.5 × 1.5 µm).

What is more powerful in this image is the accurate detection and imaging of the sidewall and trench edges. In XE's True Non-Contact mode, the probe senses not only at the end of the probe, but also in every direction of the probe. As the probe approaches a side wall, it senses the wall at the side of the probe. The resonance frequency will change and the z-scanner will instantly pull up until it reaches an equilibrium. This provides the semiconductor industry customers with an ultimate solution for CD metrology, including the side wall angle measurements. On the contrary, tapping mode's interaction is limited to the bottom of the tip and the top surface of a sample, and the feedback measures the amplitude change of the tip bouncing off the sample. Therefore, when it comes to the side of a wall, the tapping mode feedback does not comprehend the lateral force causing the tip to break.

A troublesome CD metrology tool in the market is the so-called 'lateral roughness AFM' with a flared tip as shown in Figure 4. One must question the effectiveness of such an AFM in the intended application of CD metrology. The flared tip used is very large; (~ 200 nm), and as aspect ratios become higher and features become smaller (~ 60 nm), one must wonder how these questionable flared tips would fit into high aspect ratio trenches to perform the lateral roughness in the first place. It is, with out a doubt, going against the trend and the requirements of the industry.

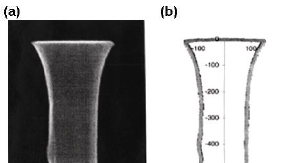

Figure 4. (a) SEM image of a flared tip and (b) its dimension. The width of a flared tip is more than 200 nm.

Conclusion

With its revolutionary XE scan system, the XE's Z-scanner has ten times the bandwidth than that of other AFMs in the market. The unprecedented high performance of XE's Z-servo allows for True Non-Contact AFM that can accurately trace high aspect ratio features, and obtain accurate detection and imaging of the sidewall and trench edges. This provides the customers in the semiconductor industry with the ultimate solution in the CD metrology including side wall angle measurement.

Source: Industrial Application Note: Critical Dimensions - Application Note by Park Systems

For more information on this source please visit Park Systems

Date Added: Apr 16, 2008 | Updated: Sep 19, 2013
