CytoViva Hyperspectral Imaging System - An Overview of Hyperspectral Imaging by CytoViva

Topics Covered

Background
CytoViva Hyperspectral Imaging System (HSI)
Confirming the Presence of Nanoscale Elements
Applications of CytoViva Hyperspectral Imaging System

Background

CytoViva is a leading provider of advanced optical microscopy and hyperspectral imaging technologies. These technologies have been specifically designed to support research initiatives in the areas of nano-technology, nano-medicine and other bio-medical related areas.

CytoViva's proprietary, advanced optical microscope system creates a high contrast, high signal-to-noise ratio, darkfield-based image. This enables fast, easy observation of a wide range of nanoscale materials as well as live cells and pathogens. When utilized with its Dual Mode Fluorescence Module (DMF), the CytoViva microscope also provides the ability to observe multiple fluorescent signals and non-fluorescent sample structure simultaneously and in real time.

CytoViva Hyperspectral Imaging System (HSI)

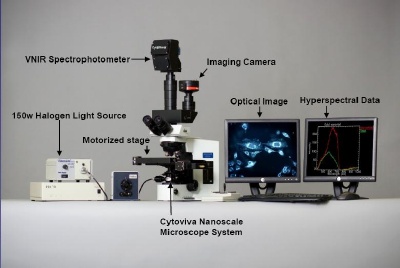

The CytoViva Hyperspectral Imaging System (HSI) provides spectral analysis of materials and biologicals imaged with the CytoViva Nano-scale Optical Microscope. Operating in the visible near infrared spectral range (VNIR), CytoViva HSI supports research in areas such as nano-drug delivery and nano-toxicology. This spectral analysis method supports both non-fluorescent and fluorescently labeled components in live cells and nano-materials.

In each application, the CytoViva Nano-scale Microscope and Hyperspectral Imaging Systems work together as a seamless solution to provide analytical confirmation of nano-scale materials and their interactions with biologicals or other composite materials.

Confirming the Presence of Nanoscale Elements

The CytoViva Hyperspectral Imaging System (HSI) confirms the presence of nanoscale elements by

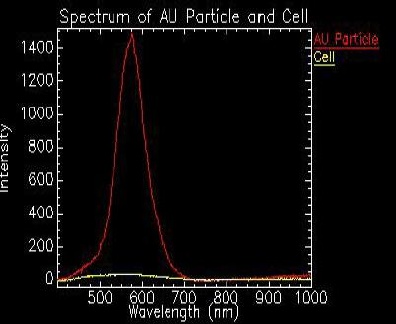

  • Collecting all VNIR spectral data within each pixelof the scanned area.
  • Storing unique spectral signatures of selected elements in a library database.
  • Matching spectral signatures in the library database against newly scanned samples.

This confirmation process can be conducted with up to 99.9% accuracy.

Applications of CytoViva Hyperspectral Imaging System

The applications for the CytoViva Hyperspectral Imaging System (HSI) include

  • Confirming the presence, location and abundance of nano-scale materials within a sample.
  • Identifying pathogens or other biological materials based on their unique spectral signature.
  • Distinguishing between multiple fluorescent probes and auto-fluorescence.

Source: "Hyperspectral Imaging Overview" by CytoViva

For more information on this source please visit CytoViva.

Date Added: Sep 6, 2008 | Updated: Jun 11, 2013
