Focused Ion Beam (FIB) Microscope - Automated Gas Chemistry in Focused Ion Beam (FIB) Microscope by Omniprobe

Topics Covered

Background
Gas Chemistries in the Focused Ion Beam (FIB) Microscope
FIB In-Situ Lift-Out Process
OmniGIS™ System

Background

Omniprobe, Inc. is an industry leader in the manufacturing of accessories enabling "nano-lab" capabilities for electron and ion beam microscopes. Products include innovative nano-manipulation products for electrical/mechanical testing and sample preparation as well as gas injector systems. The original flagship product is the AutoProbe™ 100.1 for TEM sample prep via the "in-situ lift-out" method.

Incorporated in 1999, Omniprobe has leveraged their vision of "time-saving tools designed by expert users" into a successful enterprise that has become the number one volume seller of in-situ chamber-mounted manipulation tools for TEM sample prep. The products service all sectors of the science community, from nanotechnology to biology to semiconductor.

Omniprobe's development team includes several employees that formerly held Senior Member of Technical Staff or higher positions at Texas Instruments in Dallas, as well as diverse education backgrounds ranging from Microbiology to Materials Science, Physics and Electrical Engineering.

Gas Chemistries in the Focused Ion Beam (FIB) Microscope

Gas chemistries in the Focused Ion Beam (FIB) microscope play an important role in semiconductor metrology and process control. Patterned ion and electron beam-assisted chemical vapor deposition (CVD) of materials and etch removal of material have made the FIB an efficient platform for design-edit, mask revision verification, fault isolation, failure analysis and materials analysis.

FIB In-Situ Lift-Out Process

In the FIB in-situ lift-out process, gas-assisted etching speeds the milling process. Beam-assisted CVD in the FIB is important for attachment of lift-out samples to the probe tip and TEM sample holder, for the deposition of protective layers on the surface prior to TEM lift-out, and for the deposition of gap-fill materials, such as silicon dioxide, so that inspected wafers can be returned to the process flow. There is a need for accurate and rapid feedback control of these etch and deposition processes to enable high-throughput TEM sample preparation in the FIB.

By integrating the computer control of the AutoProbe™ nanomanipulator and the OmniGIS™, the in-situ lift-out process can be streamlined and automated for high throughput and improved reproducibility. There is also a need for more efficient use of existing ports on commercial FIB vacuum chambers due to the variety of gas chemistries in use and competition for port locations from other accessories such as optical microscopes and x-ray detectors.

OmniGIS™ System

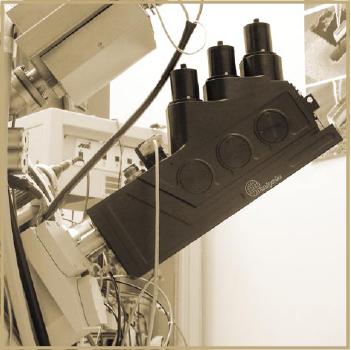

The OmniGIS™ system (Fig. 1) makes three sources available on one FIB GIS port as well as one external carrier/purge gas. The three crucible sources can be individually accessed for discrete layers, or combined for more complex deposits or custom etches. The external purge gas will quickly clear the remnants of the previous precursor before a subsequent process is begun. The operational flowchart of the OmniGIS™ is shown in Fig. 2. The OmniGIS™ system contains three crucibles, a carrier/purge gas, gas flow feedback control, and programmable process flows (“recipes”). The individual sources can be maintained at different temperatures to maintain the desired vapor pressure of each precursor. Computer-controlled metering valves determine the flow from each crucible and the flow of the carrier/purge gas. The individual transfer tubes from the crucibles to the mixing chamber are heated to prevent condensation or decomposition of the precursors. The source gases from the transfer tubes are combined in the final mixing chamber before being presented to the sample surface through a single injection tube.

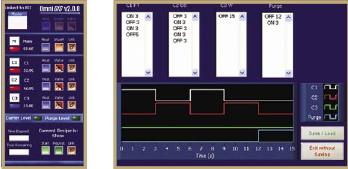

User-programmable process flows, called “recipes”, can be easily created, stored and recalled for single or multiple source processes (fig 4). These recipes can be initiated from the OmniGIS™ control software, or can be triggered by standard GIS activation from the FIB. For example, this would enable a complicated deposition and etch process to be programmed and then recalled for improved reproducibility and automation. Gas flow feedback control eliminates the uncertainty about whether the source is depleted or not, and maintains a constant monitoring of crucible output.

A performance monitor feature in the OmniGIS™ software tracks crucible output and warns if the source is nearing depletion based on hours of use and the trend in crucible output. An example of a via obtained using an automated etch and deposition routine with the OmniGIS™ is shown in Figure 3. The importance of using the carrier gas to enhance the deposition or etch rate has been widely discussed. The OmniGIS™ provides a powerful and flexible platform not only for controlling and automating routine deposition and etch processes, but also for the exploration of innovative gas chemistries for both ion beam and electron beam induced reactions.

Source:Omniprobe

For more information on this source, please visit Omniprobe

Date Added: Oct 14, 2010 | Updated: Jun 11, 2013
