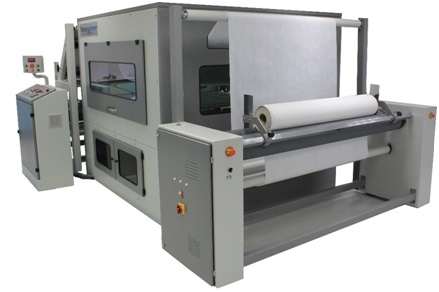

Electrospinning systems have great value at the point of converting the nanofiber materials from R&D to industrial production. INOVENSO, a world leader in the field of electrospinning machines, has manufactured the "NS416 Industrial Scale Electrospinning Line". The NS416 series has high production capacity, and enables easy monitoring and management of all parameters that are useful in the production of nanofibers.
In order to achieve effective commercial production, the production of materials in uniform and specific standards is paramount. The NS416, designed and manufactured by INOVENSO engineers, passed all of the applicable tests successfully.
The NS416 is fitted with 110 electrospinning needles and a homogenization system, allowing the surface to be evenly and continuously at a width of 1 m. Its advanced automation system and air conditioning equipment enable uninterrupted production at the determined quality even under varying environmental conditions.
The NS416’s production capacity can achieve up to 5000 g of nanofiber per day based on the properties of the polymer solution used. Nanofiber webs up to 500 m in length can be manufactured with the constant substrate feeding system.
Technical Specifications
General Description
| Model |
NanoSpinner 416 |
| Description |
Industrial Scale Multi Nozzle Electrospinning Unit |
| Spinning Type |
Bottom-Up Spinning |
| Produced in |
Turkey |
Construction
| Chassis |
Electrostatic Painted Sheet Metal |
| Feeding Area Material |
PE 1000(High Density, Chemical resistant) |
| Collector Material |
Stainless Steel |
| Windows |
4 mm Transparent Glass |
| Total Weight |
400 - 600 kg (Depends on options) |
| Dimensions |
W:3640 mm H: 1940 mm D: 1600 mm |
High Voltage Power Supply
| Voltage Range |
0 - 40 kV Positive and 0 - 20kV negative polarity 2 pieces |
| Voltage Precision |
0.1 kV |
| Max. Current |
3 mA |
High Precision Micropump
| Flow Rate |
0.1 - 1000 ml/h |
| Flow Rate Precision |
0.1 ml |
| Available Syringes |
1, 5, 10, 20, 50, 100, 200 ml
Or continuous peristaltic pump feeding |
Feeding Area
| Number of Nozzle on Each Feeding Pipe Set |
22 pcs |
| Number of Feeding Pipe Set |
65 pcs |
| Number of Nozzle |
110 pcs |
| Single Nozzle Production |
Available |
| Feeding Pipe Material |
Aluminum |
| Nozzle Material |
Electrically Conductive Brass |
| Nozzle Inner Diameter |
0.8 mm (0.315”) |
| Min. Required Solution for Single Nozzle Feeding |
3 ml |
| Min. Required Solution for Each Feeding Pipe Set |
38 ml |
| Min. Required Solution for Full Loading |
195 ml |
Coating Area
| Collector Type |
Continuous Roil To Roll Production |
| Fiber Deposition Width |
1000 mm |
| Substrate Winding Speed |
max. 10 m/min - min. 0.1 m/min |
| Coating Homogenity System |
X-axis repetitive motion |
| Stroke & Speed of Coating Homogenity System |
Stroke: 30 mm - 80 mm, Speed: 5-50 mm/sec |
Spinning Distance
| Distance Between Nozzle and Collector |
30 mm - 280 mm |
| Distance Adjustment Precision |
1 mm |
Automation
- Collector Block In/Out Motion
- Emergency Stop Button
- Safe Door On/Off Button
- LED Illumination On/Off
- Exhaust Fan On/Off
- Winding On/Off
- Winding Speed Adjustment
- Winding Direction Selection
- Coating Homogenity System On/Off
- Coating Homogenity System Stroke Adjustment
- Coating Homogenity System Speed Adjustment
- Spinning Distance Adjustment
- Pump 1-2 On/Off
- Flow Rate Adjustment
- High Voltage Adjustment
- Max. Current Limitation
- Temperature Indicator
- Relative Humidity Indicator
Temperature and Humidity Control - Changes in ambient humidity and temperature cause the fiber morphology to change based on the solvent evaporation rate. Also, the electrospinnability of certain extreme solutions may vary based on ambient conditions. Therefore, the control of environmental conditions improves the reliability of research data. Temperature control system will enable users to control temperature between room temperature and 40 °C, and humidity can be controlled to 25% RH.

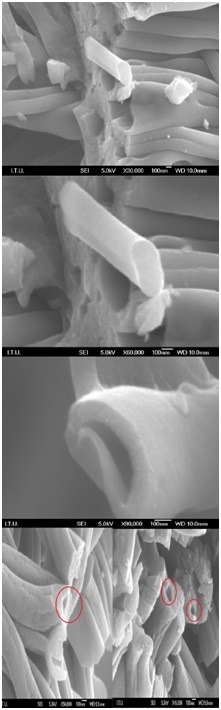

Bicomponent Nozzle - Core-shell nanofibers can help the progress of nanofiber studies to the next level. A coaxial nozzle is all that is needed to give secondary characteristics to nanofiber media. The specially designed coaxial nozzle has an inner diameter of 0.8 mm and an outer diameter of 1.6 mm. An extra syringe pump is present to obtain core-shell, hollow and bicomponent nanofibers.
Gas-Jacket Module - Gas shield is a solution for clogging polymers on the top of needle by solvent saturated N2 gas.
