When it comes to data storage, density and durability have always moved in
opposite directions - the greater the density the shorter the durability. For
example, information carved in stone is not dense but can last thousands of
years, whereas today's silicon memory chips can hold their information for only
a few decades. Researchers with the U.S.
Department of Energy's Lawrence Berkeley National Laboratory (Berkeley Lab)
and the University of California (UC) Berkeley have smashed this tradition with
a new memory storage medium that can pack thousands of times more data into
one square inch of space than conventional chips and retain this data for more
than a billion years!

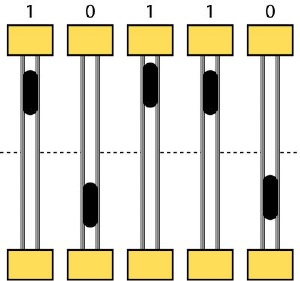

The nanoscale electromechanical memory device can write/read data based on the position of an iron nanoparticle in a carbon nanotube. Here the memory devices are displaying a binary sequence 1 0 1 1 0.
Credit: Courtesy of Zettl Research Group, Lawrence Berkeley National Laboratory and University of California at Berkeley
"We've developed a new mechanism for digital memory storage that consists
of a crystalline iron nanoparticle shuttle enclosed within the hollow of a multiwalled
carbon nanotube," said physicist Alex Zettl who led this research. "Through
this combination of nanomaterials and interactions, we've created a memory device
that features both ultra-high density and ultra-long lifetimes, and that can
be written to and read from using the conventional voltages already available
in digital electronics."
Zettl, one of the world's foremost researchers into nanoscale systems and devices,
holds joint appointments with Berkeley Lab's Materials Sciences Division (MSD)
and the Physics Department at UC Berkeley, where he is the director of the Center
of Integrated Nanomechanical Systems. He is the principal author of a paper
that has been published on-line by Nano Letters entitled: "Nanoscale Reversible
Mass Transport for Archival Memory." Co-authoring the paper with Zettl
were Gavi Begtrup, Will Gannett and Tom Yuzvinsky, all members of his research
group, plus Vincent Crespi, a theorist at Penn State University.
The ever-growing demand for digital storage of videos, images, music and text
calls for storage media that pack increasingly more data onto chips that keep
shrinking in size. However, this demand runs in sharp contrast to the history
of data storage. Compare the stone carvings in the Egyptian temple of Karnak,
which store approximately two bits of data per square inch but can still be
read after nearly 4,000 years, to a modern DVD which can store 100 giga (billion)
bits of data per square inch but will probably remain readable for no more than
30 years.
"Interestingly," said Zettl, "the Domesday Book, the great survey
of England commissioned by William the Conqueror in 1086 and written on vellum,
has survived over 900 years, while the 1986 BBC Domesday Project, a multimedia
survey marking the 900th anniversary of the original Book, required migration
from the original high-density laserdiscs within two decades because of media
failure."
Zettl and his collaborators were able to buck data storage history by creating
a programmable memory system that is based on a moveable part – an iron
nanoparticle, approximately 1/50,000th the width of a human hair, that in the
presence of a low voltage electrical current can be shuttled back and forth
inside a hollow carbon nanotube with remarkable precision. The shuttle's position
inside the tube can be read out directly via a simple measurement of electrical
resistance, allowing the shuttle to function as a nonvolatile memory element
with potentially hundreds of binary memory states.
"The shuttle memory has application for archival data storage with information
density as high as one trillion bits per square inch and thermodynamic stability
in excess of one billion years," Zettl said. "Furthermore, as the
system is naturally hermetically sealed, it provides its own protection against
environmental contamination."
The low voltage electrical write/read capabilities of the memory element in
this electromechanical device facilitates large-scale integration and should
make for easy incorporation into today's silicon processing systems. Zettl believes
the technology could be on the market within the next two years and its impact
should be significant.
"Although truly archival storage is a global property of an entire memory
system, the first requirement is that the underlying mechanism of information
storage for individual bits must exhibit a persistence time much longer than
the envisioned lifetime of the resulting device," he said. "A single
bit lifetime in excess of a billion years demonstrates that our system has the
potential to store information reliably for any practical desired archival time
scale."
The multiwalled carbon nanotube and enclosed iron nanoparticle shuttle were
synthesized in a single step via pyrolysis of ferrocene in argon gas at a temperature
of 1,000 degrees Celsius. The nanotube memory elements were then ultrasonically
dispersed in isopropanol and deposited on a substrate. A transmission electron
microscope provided high-resolution imaging in real time while the memory device
was in operation. In laboratory tests, this device met all the essential requirements
for digital memory storage including the ability to overwrite old data.
"We believe our nanoscale electromechanical memory system presents a new
solution to the challenge of ultra-high density archival data storage,"
Zettl said.
