New structures of a botulism toxin interacting with a mimic of the nerve-cell
protein it destroys suggest new ways to block this often-fatal interaction.
Indeed, the mimic molecules have such high affinity for the toxin and bind to
it so tightly that they themselves could possibly serve as anti-toxin drugs
with further modification, the Brookhaven

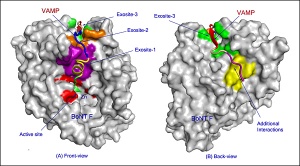

The catalytic domain of Clostridium botulinum neurotoxin type F (represented as a molecular surface, gray) bound to an inhibitor molecule (colored ribbon) designed to mimic the nerve-cell protein the toxin cleaves. The mimic protein interacts with the toxin at several exosites (purple-, brown-, and green-shaded areas) in addition to the active site (red) that performs the cleaving action, suggesting that blocking these interactions could thwart the toxins deadly action.
Botulism toxins are among the deadliest known poisons. Minute quantities in
improperly canned goods can cause a fatal form of food poisoning. Recently,
some forms have been used in medical settings to smooth facial wrinkles and
to quell bladder spasms to stem urinary leakage. But fear of their use as a
bioterror weapon has made the toxins notorious — and the push for developing
antitoxin drugs or vaccines a high priority.
The toxins come in seven distinct varieties, but all work the same way: One
portion of the toxin binds to a nerve-cell membrane; another portion moves a
smaller “catalytic domain” into the cell; then this catalytic domain
binds to and cleaves a nerve-cell protein, making it impossible for the nerve
cell to “fire,” or send signals. The result is paralysis —
and often, death.
“This study looked specifically at how the catalytic domain of one type
of neurotoxin, neurotoxin F, recognizes and binds to its target nerve-cell protein
to perform this final, paralyzing step,” said Brookhaven Lab biologist
Subramanyam Swaminathan, who led the research team.
The team first synthesized two different mimics of the target nerve-cell protein.
They then allowed each to bind to the catalytic domain of the toxin, and analyzed
the structures using high-intensity x-rays at Brookhaven’s National Synchrotron
Light Source (NSLS). Analyzing how the x-rays bounce off the structure allows
scientists to reconstruct extremely high-resolution, 3-D images showing the
positions and relative orientations of the atoms making up the proteins.
“Our structures reveal that portions of the toxin that are distant from
the ‘active site’ that cleaves the nerve-cell protein are crucial
to the toxin’s ability to bind to and destroy this protein,” Swaminathan
said. Biochemical analysis confirmed the existence and importance of these “exosites,”
further validating the crystal structures.
“Because these exosites play such an essential role in the toxin’s
ability to bind to and cleave the nerve-cell protein, they could serve as additional
targets for the development of drugs designed to interfere with the toxin’s
deadly action,” Swaminathan said.
The scientists are also exploring the possibility that the inhibitor molecules
they used in this study as mimics for the nerve-cell protein could themselves
serve as anti-toxin drugs.
“These inhibitors are attractive candidates for anti-botulinum drug development,”
Swaminathan said. “To do so, we’d need to find a way for the inhibitor
to reach the toxin inside nerve cells.” One possibility would be to add
a transmembrane sequence or some other means of intracellular transport to the
Work on all seven variations of the toxin is essential to understanding common
mechanisms that may aid in the design of drugs that work across several different
types, or ideally, broadly against all seven. Swaminathan’s group has
studied six of the seven varieties. (See related links, below.)
“The mere existence of a vaccine or anti-toxin drugs would help mitigate
the extreme fear of a bioterror attack,” Swaminathan said.
Understanding the detailed structures of the toxins and how they interact with
their target proteins could also lead to advances in the ways they can be used
safely in a medical setting.
This research was funded by grants from the Defense Threat Reduction Agency/Joint
Science and Technology Office for Chemical and Biological Defense, U.S. Department
of Defense. Data for this study were measured at beamline X29 and X12C of the
NSLS, which is supported by the offices of Biological and Environmental Research
and of Basic Energy Sciences within DOE’s Office of Science.
