Using a pair of exotic techniques including a molecular-scale version of ice
fishing, a team of researchers working at the National
Institute of Standards and Technology (NIST) have developed methods to measure
accurately the length of "nanopores," the miniscule channels found in cell membranes.
The "molecular rulers" they describe in a recent paper* could serve as a way
to calibrate tailor-made nanopores-whose diameters on average are nearly 10,000
times smaller than that of a human hair-for a variety of applications such as
rapid DNA analysis.
Studies at NIST and other research institutions have shown that a single nanometer-scale
pore in a thin membrane can be used as a "miniature analysis laboratory"
to detect and characterize individual biological molecules such as DNA or toxins
as they pass through or block the passage. Such a system could potentially fit
on a single microchip device, for a wide variety of applications. However, making
the mini-lab practical requires an accurate definition of the dimensions and
structural features of the nanopore.

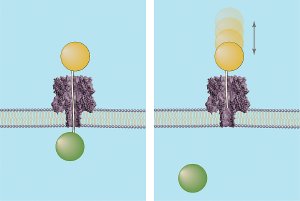

Graphic depicting how the "ice fishing" method determines the distance across a membrane nanopore. Both images show DNA strands of known lengths topped by a polymer cap (orange sphere) being driven through the nanopore. If the DNA strand is long enough to completely transverse the channel (left), it will “hook” a circulating polymer (green sphere) on the other side of the membrane and define the nanopore's length. If not long enough, the DNA probe will bounce out of the pore (right). Credit: J. Robertson, NIST
In new experiments, researchers from NIST and the University of Maryland first
built a membrane-a bilayer sheet of lipid molecules-similar to that
found in animal cells. They "drilled" a pore in it with a protein**
designed specifically to penetrate cell membranes. When voltage is applied across
the membrane wall, charged molecules such as single-stranded DNA are forced
into the nanopore. As the molecule passes into the channel, the ionic current
flow is reduced for a time that is proportional to the size of the chain, allowing
its length to be easily derived.
If a chain is long enough to reach the narrowest part of the nanopore-known
as the pinch point-the force of the electrical field behind it will push
the molecule on through the rest of the channel. Exploiting this characteristic,
the NIST/Maryland team developed a DNA probe method to measure the distances
from the openings on each side of the membrane to the pinch point, and in turn,
the entire length of the nanopore by adding the two measurements together. The
probes consist of DNA strands of known lengths topped on one end by a polymer
sphere. The sphere prevents the probe from completely moving through the nanopore
while leaving the DNA chain dangling from it free to extend into the channel.
If the chain reaches the pinch point, the force that would normally drive a
free DNA chain past the junction instead holds the probe in place (since the
polymer sphere "locks" it at the other end) and defines the distance
to the pinch point. If the chain is shorter than the distance to the pinch point,
it will be bounced out of the nanopore, telling researchers that a longer-length
chain is needed to measure the distance to the gap.
The NIST/Maryland researchers also developed a second means of measuring the
length of the nanopore to confirm the results of the "single lollipop"
method. In this system, polymer molecules are allowed to circulate freely in
the solution found on the inner side of the membrane. Polymer-capped DNA probes
of different lengths are forced one at a time into the nanopore from the opposite
side. If the end of a probe’s chain is long enough to completely transverse
the channel, it will grab hold of a free polymer molecule in solution. This
defines the length of the channel.
Additionally, this "ice fishing" method provides insight into the
structure of the nanopore. As the DNA chain winds its way through, changes in
electrical voltage correspond to the changing shape of the channel. This information
can be used to effectively map the passageway.
* S.E. Henrickson, E.A. DiMarzio, Q. Wang, V.M. Stanford and J.J. Kasianowicz.
Probing single nanometer-scale pores with polymeric molecular rulers. The Journal
of Chemical Physics 132, 135101 (published online April 2, 2010).
** Alpha-hemolysin, produced by the Staphylococcus aureus bacteria
