A chip-scale device that both produces and detects a specialized gas used in biomedical analysis and medical imaging has been built and demonstrated at the National Institute of Standards and Technology (NIST). Described in Nature Communications,* the new microfluidic chip produces polarized (or magnetized) xenon gas and then detects even the faintest magnetic signals from the gas.

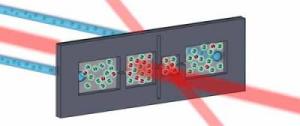

This is an illustration of a NIST chip that makes polarized xenon gas. Xenon atoms (green) are loaded into the chamber on the left. The xenon flows into the next chamber, where the atoms are polarized through collisions with rubidium atoms (red) that are illuminated with circularly polarized light. Then the xenon flows into the smaller chamber, where its polarization is measured, using the rubidium atoms in the same chamber as magnetometers. Atoms exit the chip from the chamber on the far right. Credit: NIST
Polarized xenon—with the atoms' nuclear "spins" aligned like bar magnets in the same direction—can be dissolved in liquids and used to detect the presence of certain molecules. A chemical interaction with target molecules subtly alters the magnetic signal from the xenon; by detecting this change researchers can identify the molecules in a complex mixture. Polarized xenon is also used as a contrast agent to enhance images in experimental magnetic resonance imaging (MRI) of human lungs, but conventional systems for producing and using this gas can be as big as a car.
Researchers from NIST and three other institutions developed the new chip, which might be used to reduce the size and cost of some instruments that, like MRI, rely on nuclear magnetic resonance (NMR). The chip's sensitive internal detector boosts the response of microfluidic NMR on small samples and eliminates the need for the powerful magnets associated with larger NMR devices such as those used in MRI. The microfabricated chip could be mass produced and integrated easily with existing microfluidic systems.
"We envision this device being an element in a more complex microfluidic NMR system, maybe for medical diagnostics," NIST physicist and co-author John Kitching says.
The new device is related to NIST's chip-scale magnetometer** but has additional capabilities and different applications, Kitching notes. Like the older NIST device, the new chip uses rubidium atoms as magnetometers to detect the xenon polarization, but they also multitask. The novel design also uses the rubidium atoms to polarize the xenon atoms, boosting their NMR response, and mixes the two types of atoms in the same chamber at the detection stage, which enhances the signal strength 500-fold.
The device is housed in a silicon and glass chip about 3centimeters long with four small chambers connected by microchannels. In one chamber, circularly polarized light transfers angular momentum to the rubidium atoms' electrons. The rubidium atoms then exchange spin with the nuclei of the xenon atoms, enhancing their polarization and hence the NMR signal.
The polarized xenon and rubidium atoms then flow into a detection chamber. Thanks to the atoms' magnetic interactions the sensor can detect weak signals corresponding to fewer than 1 trillion polarized xenon atoms, a result competitive with low-field optical magnetometry.
The combination of a xenon polarizer and detector in the same device, together with the extraordinary sensitivity of the chip device, could help make polarized xenon technology portable and less expensive for biomedical and other applications outside research laboratories.
