Submicroscopic particles that contain even smaller particles of iron oxide could make magnetic resonance imaging (MRI) a far more powerful tool to detect and fight disease.

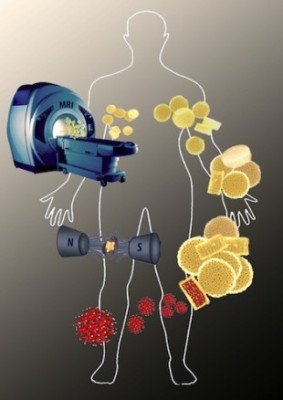

Nanoconstructs that contain iron oxide particles could make magnetic resonance imaging a far more powerful tool to detect and fight disease. Illustration by Ayrat Gizzatov
Scientists at Rice University and The Methodist Hospital Research Institute (TMHRI) led an international team of researchers in creating composite particles that can be injected into patients and guided by magnetic fields. Once in position, the particles may be heated to kill malignant tissues or trigger the release of drugs at the site.
The “nanoconstructs” should fully degrade and leave the body within a few days, they reported.
The research appears online in the journal Advanced Functional Materials.
The team led by Rice chemist Lon Wilson and TMHRI scientist Paolo Decuzzi was searching for a way to overcome the challenges presented by iron oxide particles that are good at some things but not others, depending on their size.
Iron oxide particles have many excellent qualities: They can be manipulated with magnets, provide excellent contrast under MRI, create heat when triggered and degrade quickly. But they can’t do all that at once. The team needed a way to decouple the functions from their sizes.
The answer was to package thousands of iron oxide particles – with magnetic cores as small as 5 nanometers across – inside larger particles.
The researchers made two such nanoconstructs, embedding iron oxide particles in silicon mesoporous particles (SiMPs) and discoidal polymeric nanoconstructs (DPNs). They knew from previous research that submicron-sized SiMPs and DPNs naturally accumulate within the tumor’s blood vessels.
Iron oxide enhances the ability to position and hold the particles in place with magnets, said lead author and Rice graduate student Ayrat Gizzatov. “They get attracted by the magnet, and that induces another dipole-dipole magnetic interaction among the particles and increases their interparticle communication mechanism,” he said.
Tests showed iron oxide particles made the nanoconstructs 10 times better than traditional contrast agents with what amounted to significantly lower doses of iron than used in current practice.
The new research also showed that, as a general principle, confining MRI contrast agents (like iron oxide) in geometric structures enhances their relaxivity – the property that makes the agents appear in MRI images. (The shorter the relaxation time, the greater the contrast in the image.)
While the particles are too big to target specific proteins, Gizzatov said it might also be possible to modify them with elements that will increase their accumulation in tumors.
Co-authors are Adem Guven of Rice; Jaehong Key, Santosh Aryal, Jeyarama Ananta, Xuewu Liu and Meng Zhong, all of TMHRI; Anna Lisa Palange and Daniele Di Mascolo of TMHRI and the University of Magna Graecia, Italy; Matteo Fasano and Antonio Cervadoro of TMHRI and the University of Turin, Italy; Cinzia Stigliano of TMHRI and the University of Bari, Italy; Eliodoro Chiavazzo and Pietro Asinari of the University of Turin; and Mauro Ferrari of Weill Cornell Medical College, New York.
The Cancer Prevention and Research Institute of Texas, the National Institutes of Health, the Welch Foundation, the Interpolytechnic Doctoral School of Turin, the Italian Ministry of Research, the Doctoral School of the University of Magna Graecia, the European Social Fund and the Regione Calabria supported the research.
