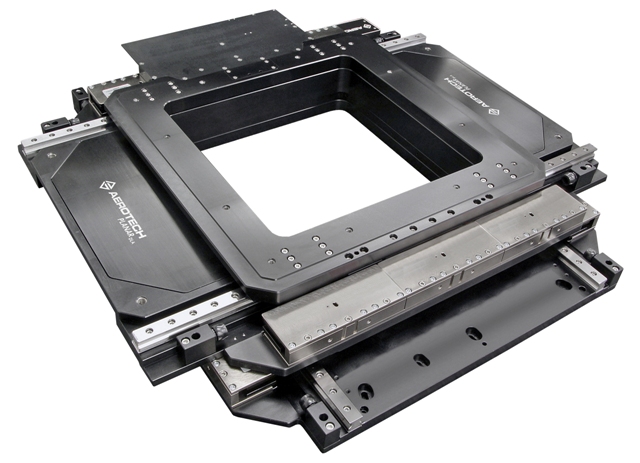

Aerotech has introduced a series of integrated open-frame stages with precise geometric performance and micrometer-level straightness. The new PlanarDLA stages include high precision roller bearings, precision machined surfaces and non-contact linear motors that drive through the axes’ center of stiffness. These features result in straightness to ±0.5µm and flatness to ±1.25µm.
PlanarDLA XY linear motion stages from Aerotech provide high throughput, high accuracy processing for applications where straightness and flatness are critical.
Applications include:
- Semiconductor manufacturing
- Electronics manufacturing (LEDs)
- Test & Inspection
- Laser Processing
- Metals inspection
- Micro-machining
- Nanotechnology
- Medical
- Laboratory
- Optical metrology
- Wafer processing
- Metrology
- Automation
The low-profile stages are designed for a wide range of applications from highly dynamic two-sided LED wafer processing to quasi-static optical metrology. There are nine models in the series to accommodate customer requirements for travel and accuracy.
The PlanarDLA enables high-throughput, high-accuracy processing with 2 m/s velocities and 2 g accelerations, resulting in superior process yield and a low total cost of ownership. It achieves high servo bandwidths while maximizing the clear aperture available and keeping the overall height to a minimum.
Aerotech’s proprietary direct-drive technology offers high speed and accurate positioning coupled with maintenance-free operation and long service life. The stages are available with one or two motors per axis allowing optimization of each axis for the specific application and process.
Aerotech is a leading global supplier of positioning and motion control products for industry, government, science and research institutions. Its products provide critical performance for demanding applications requiring high precision, high-throughput motion control solutions.
