The Importance of a Sapphire Viewport in a HV or UHV

It is vital for the procedure in-situ to be observed in many high vacuum and ultra-high vacuum (HV/UHV) processes. The challenge is that any optical component must penetrate the hermetically sealed chamber but not compromise the quality of the vacuum. Engineering has been undertaken to create specialized flanged windows and viewports, which will then allow the observation of vacuum processes directly or with the assistance of an internal mirror array.

When done in this way, there is no risk of the loss of pressure. The quality of materials used in the flange and gasket largely determines this mechanical performance.


Reliable stainless steel alloys such as type 304 typically make up viewport flanges, while high-purity copper (Cu) is considered to be the ideal gasket material in UHV conditions. However, there is a wide range of materials that are available for creating the transparent pane, which ranges from synthetic sapphire down to standard borosilicate glass.

This article details in what circumstances and why a sapphire viewport might be used in HV/UHV applications.

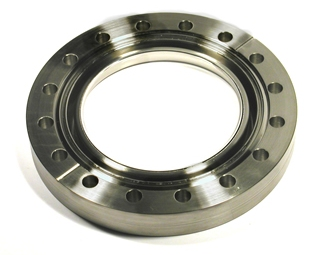

Outlining Sapphire Viewports

In engineering applications, sapphire is one of the hardest optical materials utilized. A transparent, single-crystal aluminum oxide (Al2O3), sapphire additionally has superior thermomechanical properties as compared to almost every other window material that is used in HV/UHV processing.

Compressive strength of approximately 2000 Megapascal (MPa) and a flexural strength upwards of 400 MPa are the typical mechanical properties of sapphire. Sapphire viewpoints are notoriously hard and exploit the material’s excellent Young’s modulus (~350 GPa), which helps to make sure that the pane’s stress-strain ratio is ideal for operation at pressures on an order of trillionths of the atmosphere.

To undertake high-temperature vacuum processing applications, sapphire viewports are also suitable. Such applications might include physical vapor deposition (PVD). It has been demonstrated that the pane can reliably withstand continuous operating temperatures in the region of 400 °C (752 °C), although this limit is a restraint of the chamber architecture. Sapphire alone can endure temperatures of up to 1800 °C (3272 °F).

Despite this, there are myriad alternative viewport materials that can operate in applications that are similarly pressurized and related to thermal processing. Sapphire’s primary advantage over other window types is the excellent optical transmissivity that the material possesses.

To wavelengths of light between 150—5500 nanometers (nm), sapphire viewports are highly transparent, spanning a great deal of the ultraviolet (UV) and visible spectrum with excellent extension into the near-infrared (IR) range. Optimal viewing of HV/UHV processing conditions is ensured, without necessitating additional surface coatings.

Sapphire’s unparalleled mechanical properties are a key contributor towards this excellent quality of transmissivity, given that wavelength transmission can be significantly affected by poor surface finish, particularly for short-wave radiation.

Sapphire is the third hardest engineering material that exists on our planet, which guarantees incredible resistance to scratching and abrasion. Sapphire viewports can retain their as-installed transmission properties for long-service in rugged processing environments as a result of this hardness.

Sapphire Viewports from Allectra

Allectra is a specialist when it comes to the design and supply of these HV/UHV components. Allectra’s sapphire viewports are available with diameters of 15 – 49 mm, which therefore provides both wide and narrow fields of view into thermal processing chambers. Every one of Allectra’s available sapphire viewports can also be DUV-rated for the widest transmission range that is currently available.

This information has been sourced, reviewed and adapted from materials provided by Allectra Limited.

For more information on this source, please visit Allectra Limited.
