Electrical Characterization of 2D Transition Metal Dichalcogenides via SPM

In a conventional planar silicon field effect transistor (FET), when its lateral dimension becomes smaller than the transistor thickness, the gate controllability becomes weaker. This leads to adverse short-channel effects, including saturation of the carrier mobility in the channel, leakage current, time-dependent dielectric breakdown, and channel hot-carrier degradation.

To ensure efficient electrostatic control from the gate, the transistor body thickness must be reduced. Theoretical studies have demonstrated that particularly 2D transition metal dichalcogenides (TMDs) can:

  • Have excellent electrostatic gate control
  • Decrease off-state power consumption
  • Outperform Si as the channel material
  • Enable the atomic-level scaling
  • Further extend Moore’s Law [1-6]

This is because of the atomic thickness and dangling bond-free surface of two-dimensional (2D) materials.

Suitable methods to characterize the intrinsic electrical and physical properties of as-deposited 2D materials are a key link between the performance of 2D materials-based electronic devices and the quality of as-deposited 2D materials.

The performance of 2D materials-based devices can be better understood, controlled, and improved thanks to this link. However, there are limited methods for analyzing the intrinsic electrical properties of as-deposited 2D materials on the nanoscale without any transfer and patterning process.

To investigate the intrinsic electrical properties of as-deposited 2D TMDs, scanning probe microscopy (SPM) is utilized in this article. Conductive atomic force microscope (C-AFM) is carried out directly on the surface of as-grown 2D materials without any patterning.

C-AFM enables the correlation of the electrical conductivity of as-grown 2D materials to their topography, linking the electrical properties of 2D materials to their physical properties such as layer thickness, etc.

C-AFM supplies comprehensive information of as-deposited 2D materials and helps the user assess the effect of these intrinsic properties on 2D materials-based nanoelectronics.

Experimental Details

Pt/Ir coated Si probes (spring constant k~3 N/m, resonance frequency f0~ 75 kHz, PPP-EFM) on a Park NX-Hivac AFM under high vacuum (~10-5 Torr) are utilized to assess the intrinsic electrical properties of the as-grown MoS2 and WS2 layers on sapphire are evaluated by C-AFM.

The water layer which always exists on the sample can be reduced by the high vacuum environment.[4,6] The bias of the C-AFM measurement is applied to the sample chuck and the resulting current is measured via a linear current amplifier.

The applied bias to gather all the C-AFM current maps is all at 1 V. Silver paint is applied to the top and side of the samples to ensure electrical contact.

Results and Discussion

As seen in Figure 1b, the as-deposited MoS2 layer on on-axis cut sapphire shows a non-uniform conductance over the whole surface in the C-AFM current maps, even though the topography maps in Figure 1a exhibit a fully coalesced monolayer MoS2 with ~37% superficial crystals on top of it (named as 1.3 ML)...

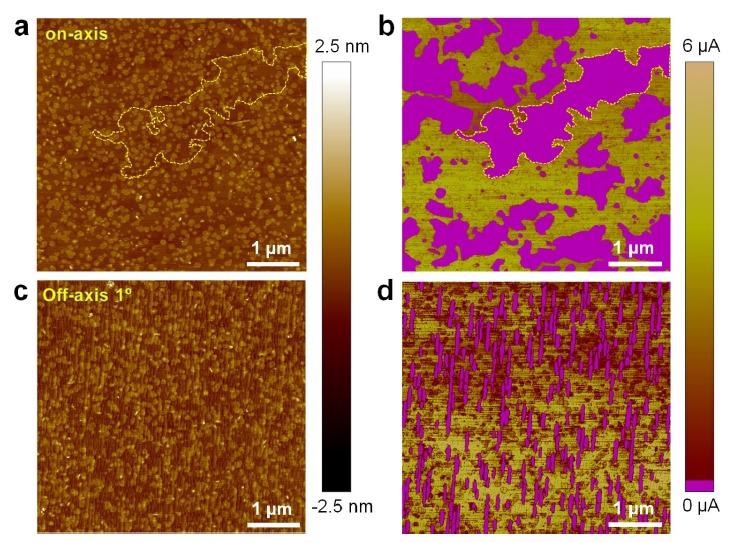

(a, c) C-AFM topography of 1.3 ML MoS2 grown on on-axis and off-axis 1º cut sapphire, respectively. (b, d) The simultaneously acquired C-AFM current maps of (a, c), respectively. Non-homogenous and poorly conductive regions in the first single layer of MoS2 are highlighted in pink by current thresholding (~ 0.3 µA).

Figure 1. (a, c) C-AFM topography of 1.3 ML MoS2 grown on on-axis and off-axis 1º cut sapphire, respectively. (b, d) The simultaneously acquired C-AFM current maps of (a, c), respectively. Non-homogenous and poorly conductive regions in the first single layer of MoS2 are highlighted in pink by current thresholding (~ 0.3 μA). Image Credit: Images are reproduced with permission.[7] Copyright 2021, American Chemical Society.

Download the full application note now

This information has been sourced, reviewed and adapted from materials provided by Park Systems Europe.

For more information on this source, please visit Park Systems Europe.
