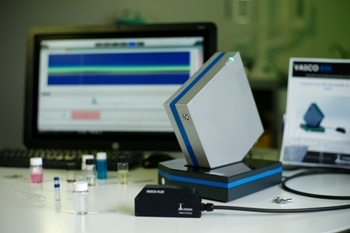

VASCO KIN Particle Size Analyzer

In a continuation of their development of advanced nanomaterials characterization technologies, Cordouan has developed the VASCO KIN™ Time-Resolved instrument. This next-generation equipment is designed to monitor in Real Time nanoparticles synthesis, agglomeration or the stability of suspensions, using accurate kinetic analyses combined within an in situ and contactless remote optical head.

The VASCO KIN™ takes one continuous measurement, that enables access to all characterization data of a reaction (size distribution, scattered intensity, correlograms, etc.).

Key Features & Benefits

  • Frequency stabilized Laser & Artefact-free Avalanche Photodiode (APD) detector
    → High measurement accuracy
    → Very Low scattering samples
  • Embedded dedicated PC including software correlation and a complete & dedicated software NanoKin®
    → Easy-to-use interface
    → Photon-counts storage for Time-Resolved analysis & post-analysis
    → Full report including kinetic analysis
  • Enhanced mathematic models
    → Better reliability of results
    → 2D Colormap of size distribution over time

Main Specifications

  • Measures using Optical Fiber Dynamic Light Scattering (DLS)
  • Measurement configuration: in situ / contactless remote probe
  • Particle size range: 0.5 nm to 10 µm*
  • Concentration range: up to 40% wt*
  • Measurement time: from 2 s up to 12 hours
  • Time resolution: down to 200 ms
  • Compact size with a small footprint, no mobile part, easy-to-integrate in harsh environment

* Sample dependent
