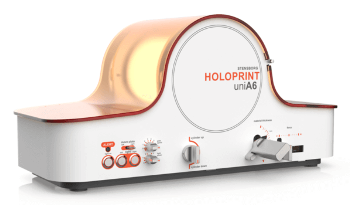

Stensborg’s HoloPrinter® UNI A6 DT is a user-friendly tabletop unit designed for laboratory-scale NIL work.
The unit is typically used for imprinting functional structures such as diffractive optical elements, lab-on-chip, and other kinds of nano-imprinted structures.
In addition, the HoloPrinter® enables users to imprint materials, and perform test and characterization of photo-curable resins. It includes Stensborg’s latest optical curing engine and comes with a simple mounting technique to imprint templates.
Users can make their own templates from HPDMS, PDMS, and hot-embossed polymers. Alternatively, they can select from Stensborg’s user-friendly consumables.
Image Credit: Stensborg
1. Place template on drum
Image Credit: Stensborg
2. Place foil on plate
Image Credit: Stensborg
3. Processing
Image Credit: Stensborg
4. Remove product from plate
Specifications
Table Source: Stensborg
| . |
. |
| Maximum imprint size |
105 x 148 mm (width x length), substrate thickness is up to 8 mm |
| Typical replication speed |
60 replications every hour, including manual procedures (speed of the plate movement is up to 8 m/minute) |
| Two outputs |
Roll-to-foil and roll-to-plate operation |
| Resin materials/consumables |
Stensborg 3D imprint Resin “X29” |
| Optical curing engine |
LongLife 395 nm LED (passive cooling), up to 100 mJ/cm2 at 6 m/minute |
| Size |
630 x 280 x 231 mm (length x width x height) |
| 630 x 280 x 231 mm (length x width x height) |
26 kg |
| Imprinting force |
Up to approximately 1000 N |
