LensAFM - Integrated AFM for Optical Microscopes

The Nanosurf LensAFM from Nanosurf AG is an atomic force microscope that goes beyond the resolution limits of optical microscopes and profilometers. It is installed in the same manner as a standard objective lens, thereby increasing the resolution and measuring skills of these instruments.

The LensAFM can be used to analyze different physical properties of a measurement sample in addition to providing 3D surface topography data.

  • Can increase user’s resolution capabilities by a factor of up to 100
  • Can be installed on virtually any optical microscope or 3D optical profilometer
  • A combination of optical and AFM techniques

The unique combination of compact design, optical access, and intuitive operation of the LensAFM made it the perfect platform for our instrument development. We believe that much of the success of our project has been achieved through the excellent communication that we have enjoyed between ourselves, Nanosurf, their UK distributor Windsor Scientific, and AFM probe manufacturer Nanosensors. We now look forward to future developments with the LensAFM to optically probe magnetic materials deep into the nanoscale.

Dr. Paul S. Keatley, Senior Experimental Officer (SEO), Exeter Time Resolved Magnetism Facility, University of Exeter

Perform AFM Measurements with the Instruments of Choice

Scientists choose to merge optical and atomic force microscopy techniques in a variety of situations. Optical microscopes are almost unrivaled in terms of user-friendliness, screening capability and (lack of) sample preparation needs. But there are occasions when a 100x objective is insufficient and users need to zoom in on some small details that are beyond the instrument’s resolution.

In a typical laboratory setting, two dedicated instruments would be required, and the sample would need to be transferred from one device to another. This is not the case with the LensAFM. With its tiny size and smart mounting process, all users have to do is rotate the turret on the optical microscope or profilometer and run the scan.

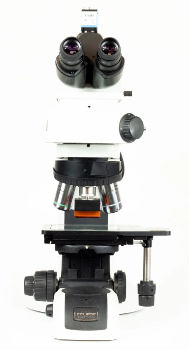

The LensAFM seamlessly incorporates into the user’s workflow. After attaching it to the optical microscope’s turret — similar to a regular objective lens — users can screen the sample with standard targets to find points of interest.

Following that, the topic of interest is easily located using the incorporated 8x optical lens, and users can then conduct the AFM assessment to obtain higher resolution 3D data. It works in the same manner as before, but with a significant increase in resolution and capabilities.

The LensAFM has a rapid release pattern that allows users to easily install and detach the LensAFM from the turret. The kinematic mounting ensures that users can replace it with greater precision than 10 µm.

Alignment grooves on the chip mount also make sure that the tip of the next cantilever is within 4 m of the same position, enabling the same feature to be found again even after a cantilever exchange. With these alignment grooves, users do not even have to execute a laser alignment on the cantilever, which also saves time.

The LensAFM adds all of these measurement skills to the optical microscope without reconsidering the user’s entire workflow. Look at the video to see how simple it is to improve such skills.

Nanosurf LensAFM -- Adding AFM to your Optical Microscope

Video Credit: Nanosurf AG

Boost the Capabilities of the Optical Microscope

As the wavelength of light limits the resolution of optical microscopy, there is indeed a restriction to the resolution users can achieve with the optical system. This necessitates the use of optical and atomic force microscopy in an exponential rise. Furthermore, AFM overcomes difficulties in characterizing transparent samples or samples that are otherwise hard to assess optically.

Not only is the topography of a sample of interest, but AFM also enables the acquisition of knowledge of other mechanical properties, such as hardness variability, surface quality, magnetism or electrical conductance/resistance.

LensAFM Imaging modes

The following are the modes suitable for the instrument. Certain modes may require added components or software options.

Standard Imaging Modes

  • Static Force Mode
  • Dynamic Force Mode (Tapping Mode)
  • Phase Imaging Mode

Electrical Properties

  • Conductive AFM (C-AFM)
  • Electrostatic Force Microscopy (EFM)
  • Scanning Spreading Resistance Microscopy (SSRM)

Mechanical Properties

  • Force Modulation
  • Force Spectroscopy
  • Force Mapping

Magnetic Properties

  • Magnetic Force Microscopy

Other Measurement Modes

  • Lithography and Nanomanipulation

System Specifications

Table 1. LensAFM scan head specifications. Source: Nanosurf AG

. .
Maximum scan range (XY)(1,2) 70 µm
Maximum Z-range(1) 14 µm
XY-linearity mean error <1.2%
Z-measurement noise level (RMS, static mode)(3) typ. 350 pm (max. 500 pm)
Z-measurement noise level (RMS, dynamic mode)(3) typ. 90 pm (max. 150 pm)
Automatic sample approach Built-in motorized parallel approach with 4.5 mm travel
Cantilever alignment Automatic self-adjustment through alignment chip technology
Sample observation(4) Built-in 8× objective lens with 45 or 60 mm parfocal distance(5)
AFM measurement repositioning precision ±10 µm (including cantilever exchange, scan head remounting and approach)

(1) Manufacturing tolerance: ±15%
(2) Maximum scan range at 45° rotation of the AFM scan direction
(3) Measured using the C3000i controller, with active vibration isolation on a stable desk, and in a low-noise laboratory environment (no air conditioning)
(4) Adapters with a correct parfocal distance are available for the different optical microscope types

Table 2. C3000i controller—Core hardware specifications. Source: Nanosurf AG

. .
X/Y/Z-axis scan and position controller 3× 24-bit DAC (200 kHz)
X/Y/Z-axis position measurement 1× 24-bit ADC (200 kHz)
Excitation & modulation outputs 2× 16-bit DAC (20 MHz)
Analog signal input bandwidth 0–5 MHz
Main input signal capturing 2× 16-bit ADC (20 MHz)
2× 24-bit ADC (200 kHz)
Additional user signal outputs 1× 24-bit DAC (200 kHz)
Digital synchronization Sync Out 1/2: digital outputs, signal range 0/5V TTL pulses
FPGA module and embedded processor ALTERA FPGA,
32-bit NIOS-CPU,
80 MHz, 256 MB RAM,
multitasking OS
Communication USB 2.0 Hi-Speed to PC and scan head interface
System clock Internal quarts (10 MHz) or external clock
Power 90–240 V AC, 70 W, 50/60 Hz


Table 3. Cantilever. Source: Nanosurf AG

. .
Width min. 28 μm
Length min. 225 μm or XY corrected
Reflective coating Required on complete cantilever
Liquid measurements Not possible
Alignment grooves Required
Resonance frequency dynamic mode 15 kHz to 350 kHz
Cantilever shape Single rectangular cantilevers only
Chip thickness 300 μm


Scan Head Dimensions

Image Credit: Nanosurf AG
