Nanospider™ NS LAB

State‑of-the‑art equipment for experimental work and product development

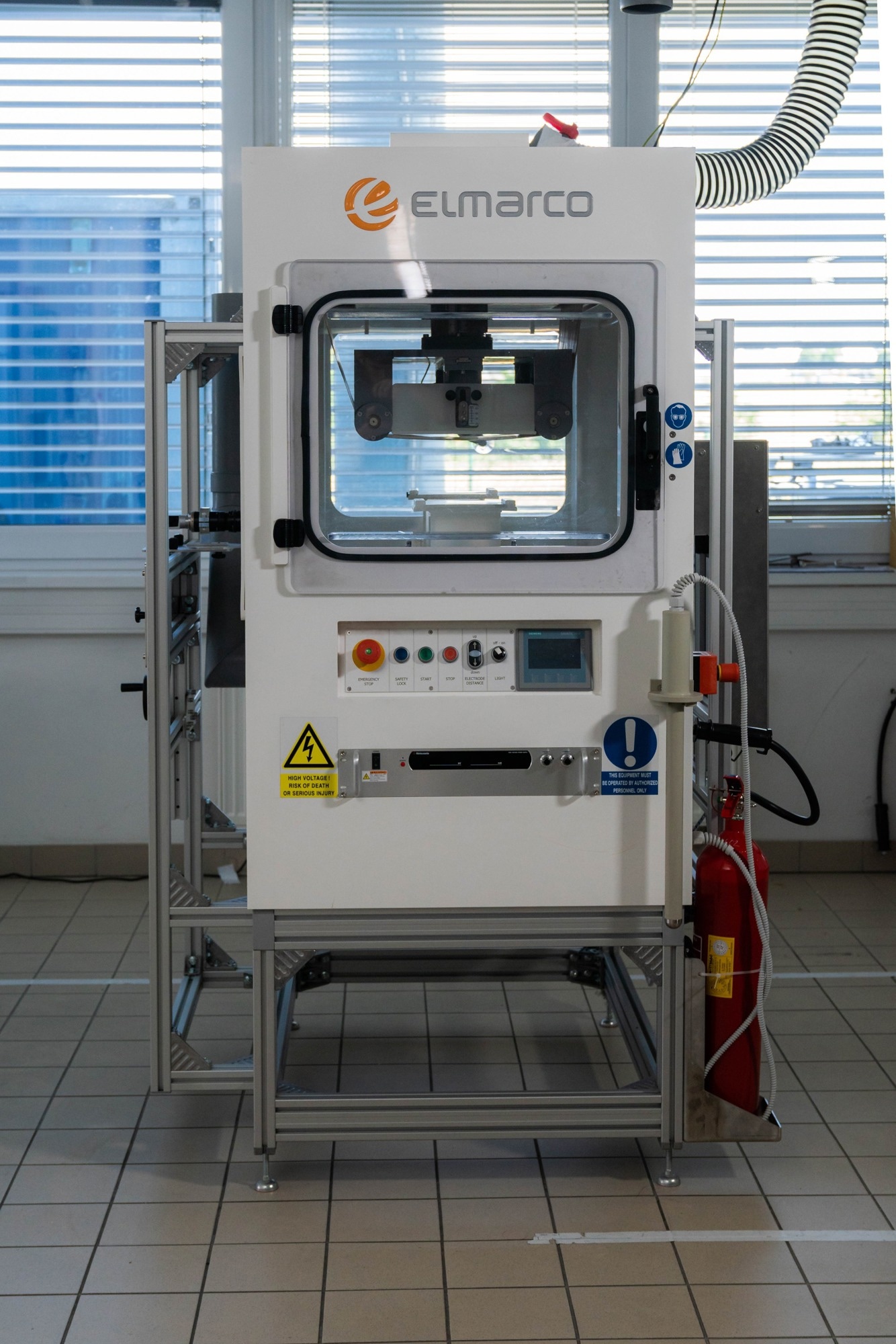

The Nanospider™ NS LAB is a compact and cost-effective laboratory electrospinning laboratory electrospinning device designed for efficient nanofiber research, the development of novel nanofibrous products, and experimental work with nanomaterials.

Image Credit: Elmarco


  • For Materials Sciences
  • Technical textiles
  • Membrane research
  • Experimental research

The NS LAB utilizes the same Nanospider technology as the other industrial-grade instruments in this line. This ensures that research conducted with the NS LAB can be seamlessly scaled up to industrial production levels.

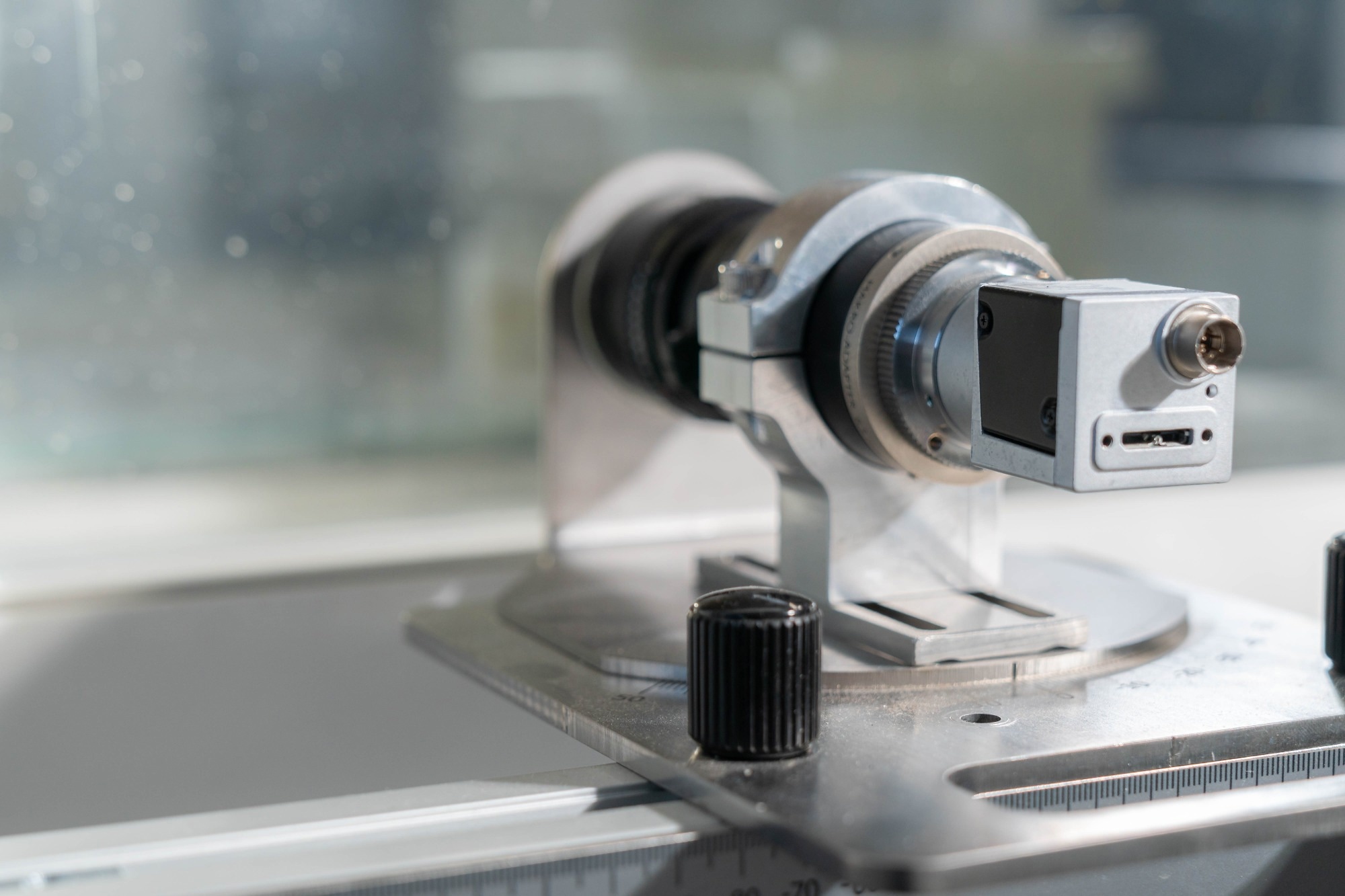

The NS LAB features an industrial-grade camera that provides a detailed visualization of nanofiber jet formation on a wire electrode, facilitating quantitative image analysis of process parameters specific to Nanospider technology. This camera supports both shadow and reflection-sensing techniques for versatile application.

electrospinning, NS LAB

Image Credit: Elmarco

Technical data

  • Spinning electrode width: 350 mm
  • Run time per batch: 40 - 100 min (depends on polymer / solvent solution)
  • Volume of solution per batch: 50 or 10 ml
  • Substrate speed: 0 - 5000 mm/min
  • Spinning voltage: 0 - 80 kV
  • Integrated substrate unwind / rewind


  • Designed for experimental work
  • Compact & affordable research tool
  • Easy to scale up to industrial technology
  • Time saving experimental work
  • Safety door locks and shut off switches
NS LAB - laboratory electrospinning equipment introduction
