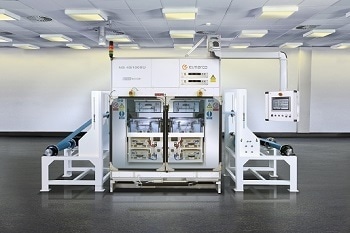

LINEA Line: Nanospider™ NS 3S500U

Equipment for research and small‑volume production

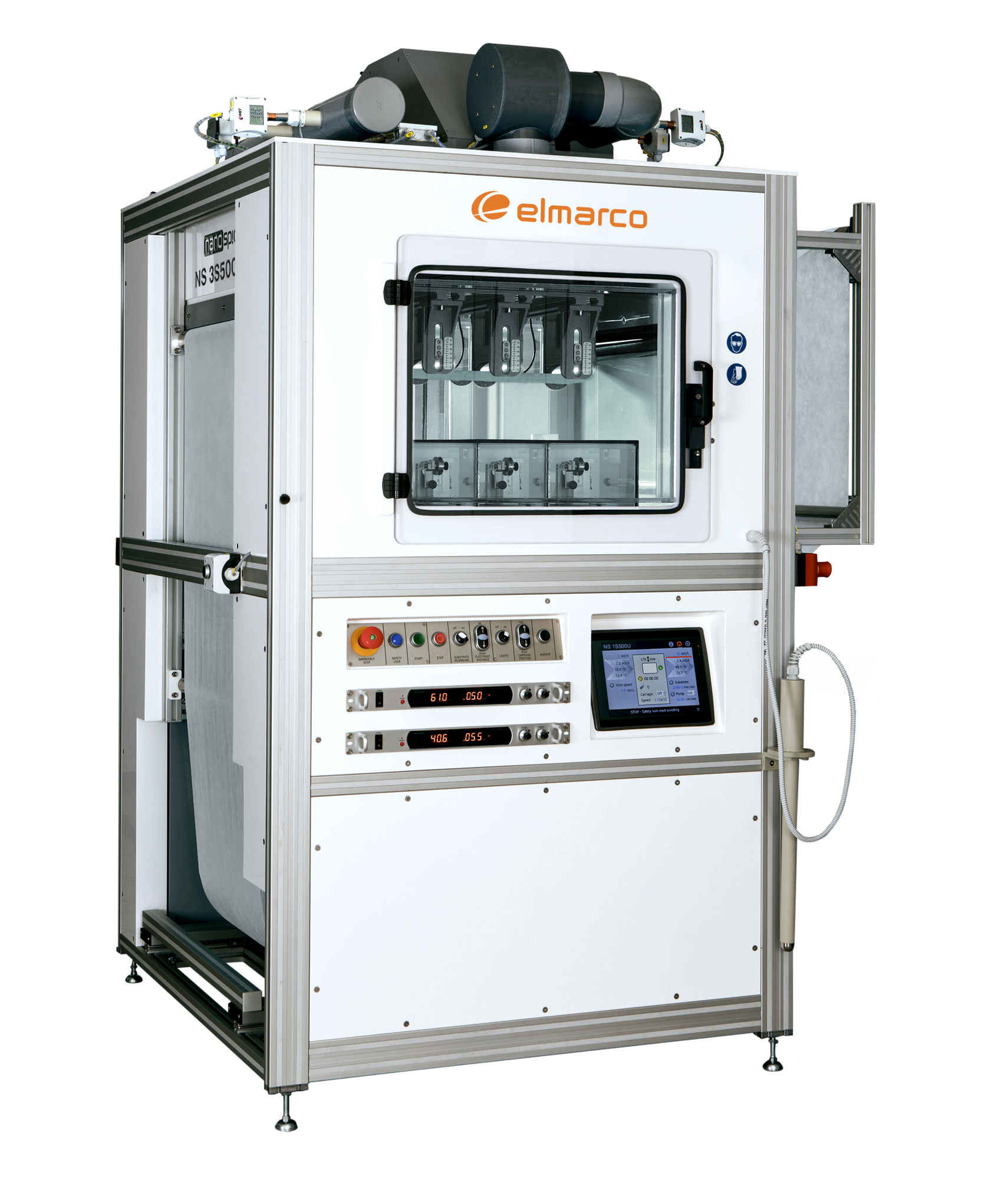

The Nanospider NS 3S500U is an electrospinning machine that offers a flexible solution for both the research and development of nanofiber products and small-scale production. It combines the features of a high-end laboratory instrument with the potential of industrial production.

Image Credit: Elmarco

Technical data

  • Long time operation capability enabled by peristaltic pump
  • 500 mm spinning electrode width
  • Substrate speed: 5 - 5000 mm/min
  • Spinning voltage: 0 - 100 kV

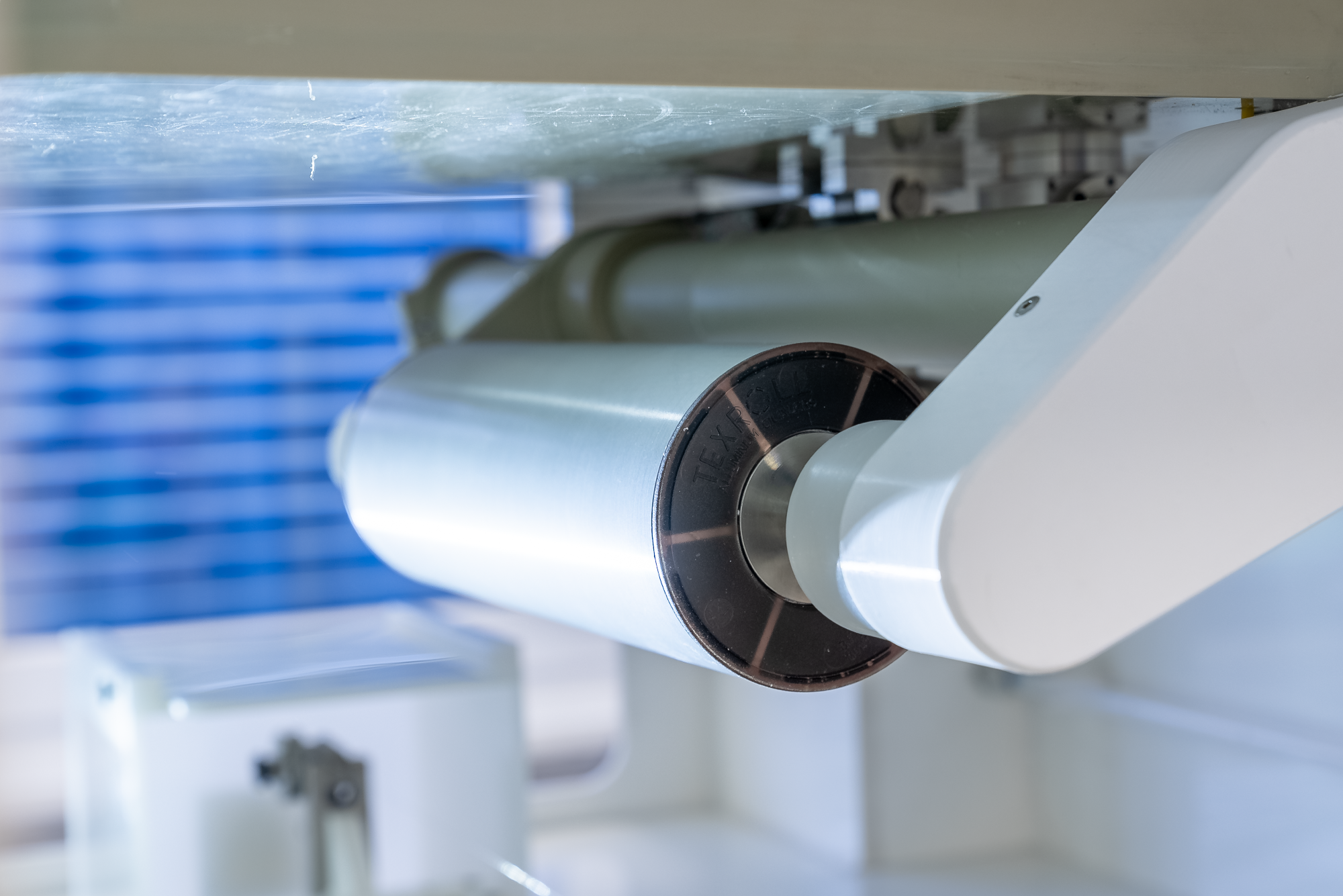

  • Integrated substrate unwind / rewind
  • Process data tracking for PC analysis

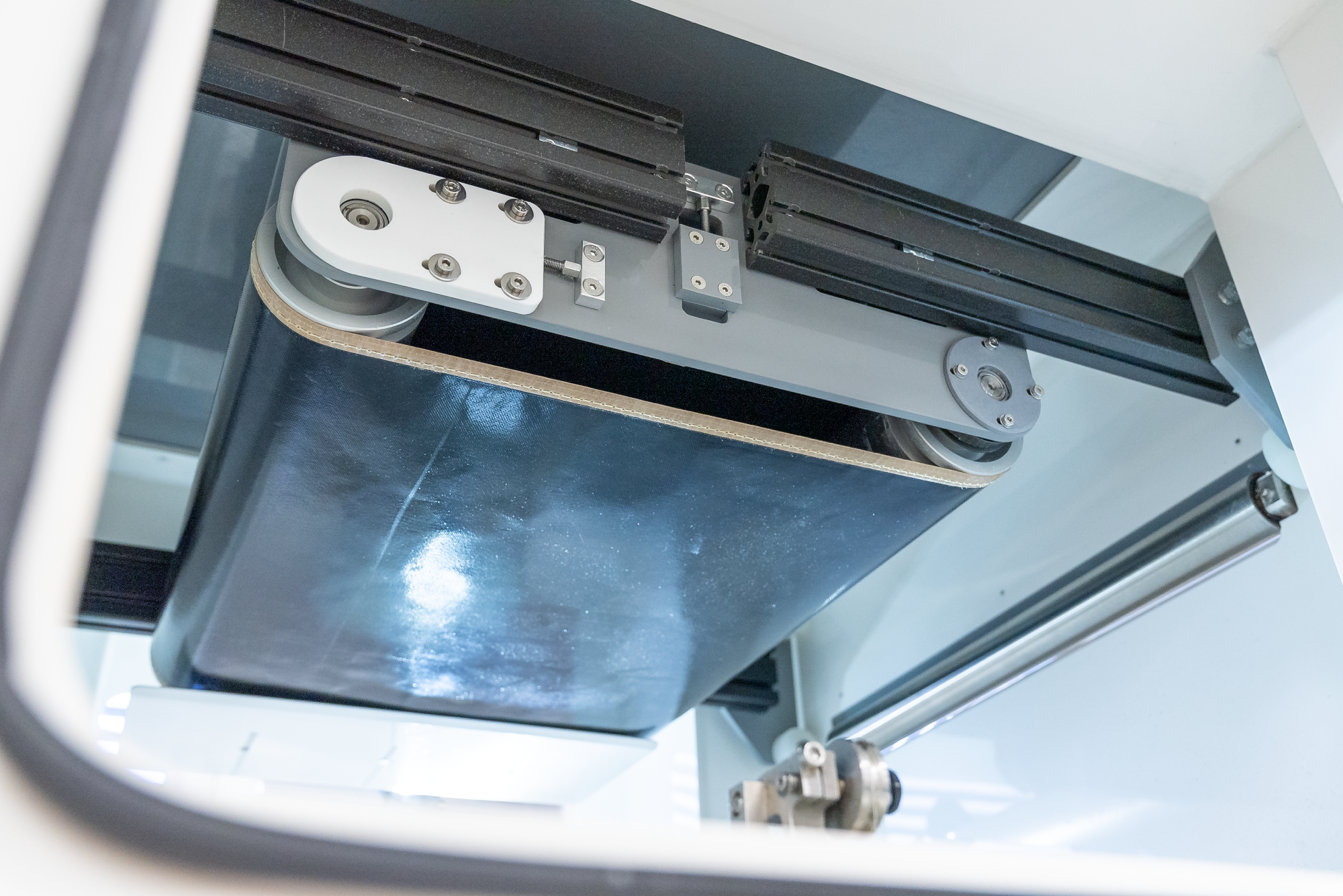

  • Additional types of electrodes – rotating electrode and endless belt


  • Easy to switch between production and experimental work
  • Made from FDA certified materials
  • Precise process control (air flow, humidity and temperature sensors)
  • Capable of running batch and continuous feed operating modes
  • Large diameter rolls capability up to 400 mm

nanospider, electrospinning

Image Credit: Elmarco

Image Credit: Elmarc
