Auburn, MA – PI’s M-110, M-111 and M-112 miniature linear stage family is designed for micropositioning applications where high resolution and repeatability is required with resolutions down to 0.05 microns (50 nanometers). Closed-loop servo motors with position encoders and economical stepper motors are available, as well as a choice of leadscrew and ballscrew drives. Travel ranges of 5mm, 15mm, and 25mm are offered.
Image Credit: PI (Physik Instrumente) LP

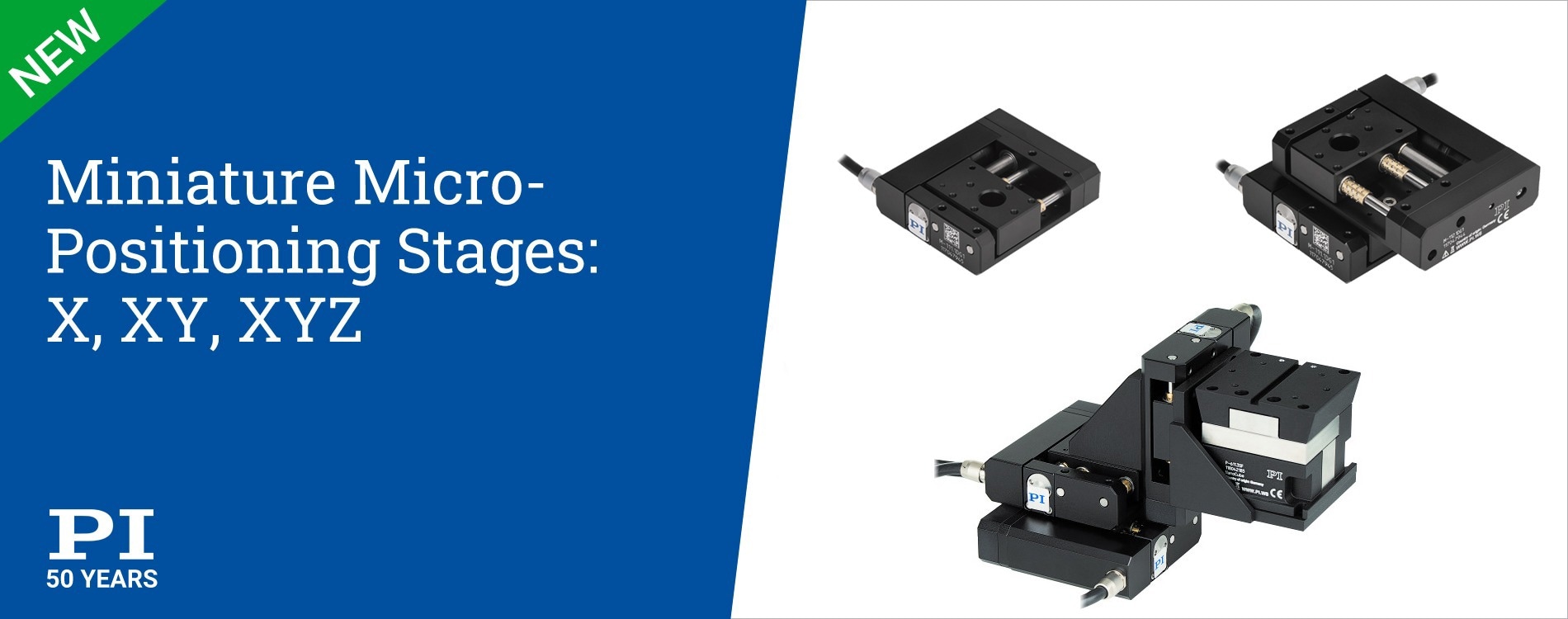

XY / XYZ Miniature Stages for Multi-Axis Positioning and Alignment Applications
The miniaturized design allows for extremely compact XY and XYZ multi-axis assemblies. XY stages can be assembled of two miniature stages without the need for adapters. An angle bracket is available for XYZ stage assemblies.
Combination with XYZ Piezo Scanner for Fast Optics and Photonics Alignment
For the most demanding applications, where nanometer precision and high scanning speed are required, for example in optics and photonics alignment applications, a low inertia XYZ piezo scanner option is also available.
More Information on the M-110 / M-111 and M-112 Miniature Micropositioning Stages
Applications for the Miniature Micropositioning Stages
The miniature stages are designed for applications such as precision micro assembly, laser inscription, microscopy, alignment of optical and mechanical components.
