PI (Physik Instrumente), a global leader in precision motion control and nanopositioning, offers advanced piezo-driven and voice-coil-driven fast steering mirrors (FSMs) engineered for the demanding requirements of free-space optical communication (FSOC). The growing demand for higher data rates and internet access at any point on the globe is driving the growth of Low Earth Orbit (LEO) satellite constellations that rely on the precision steering of laser beams to keep in touch. In a recent podcast, PI engineers explain the requirements for advanced FSMs to meet the challenges of the latest generation LEO networks.

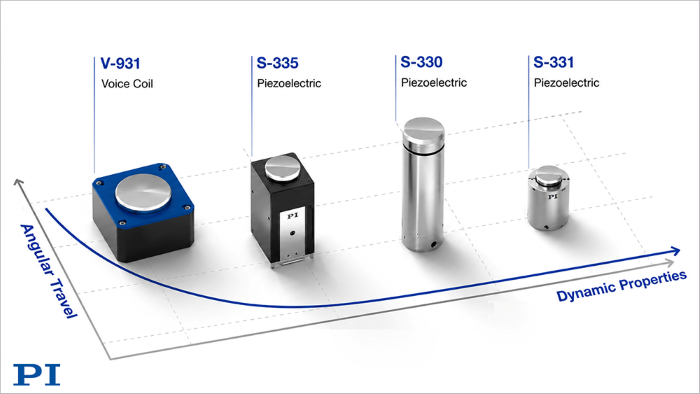

Overview of dynamic performance vs. angular travel ranges of different voice-coil and piezo-driven fast steering mirrors. Piezo drives provide higher dynamics; voice coils provide larger travel ranges. Image Credit: PI (Physik Instrumente) LP
Micro-Radian and Sub-Micro-Radian Pointing Precision Required
Unlike traditional RF communications, laser-based optical links can transmit significantly more data while reducing latency and power consumption. On the other hand, the narrow divergence of laser beams requires extremely accurate pointing and continuous stabilization over distances of hundreds or even thousands of kilometers.
PI's fast steering mirrors provide the high-speed, high-resolution angular corrections needed to maintain stable optical links between satellites, aircraft, and ground stations.
Voice-Coil and Piezo-Drive Design Options – Frictionless Guiding Systems
PI's FSM technology delivers angular resolution down to the nanoradian range with mechanical bandwidths reaching the kilohertz range. Piezo-driven systems provide exceptional resolution, stiffness, and dynamic performance for fine beam stabilization, while electromagnetic (voice-coil) systems offer larger steering angles for applications requiring greater beam deflection. Frictionless flexure guidance eliminates backlash and wear, ensuring long-term reliability and repeatable performance.
High Volume Production Capabilities, Cleanroom Manufacturing
PI fast steering mirrors are already operating in space. Space-qualified systems have been developed and deployed in commercial LEO communication satellites and other space missions, validating their performance in the harsh space environment. In parallel, PI has developed highly automated cleanroom manufacturing capabilities to support high-volume production of both standard and custom FSM solutions for free-space optical communication and other laser beam control applications.
Control Electronics and Algorithms
Beyond precision mechanics, PI also provides advanced motion controllers and beam acquisition and tracking algorithms that can significantly accelerate optical link establishment. Combined with PI's expertise in nanopositioning, motion control, and photonics alignment, these technologies help maximize connectivity and data throughput in mission-critical communication systems.
Key Benefits of PI FSM Solutions
- Piezo and voice-coil technologies optimized for different steering requirements
- Mechanical bandwidths up to the kHz range
- Nanoradian angular resolution
- Zero-backlash flexure-guided mechanisms
- Space-qualified designs already operating in LEO
- Automated high-volume manufacturing
- Advanced beam acquisition and tracking algorithms
- Standard and custom OEM solutions
Industries Served and Applications
Photonics, free space optical communication (space and ground), laser processing, 3D printing, quantum optics, image and laser beam stabilization, semiconductor processing - beam delivery, microscopy, LIDAR, astronomy.
