Examination of In-Service Oils Using the Avio 200 ICP-OES

Assessing the status of heavy machinery during operation is essential in order to prevent costly repairs and breakdowns. One vital aspect involves monitoring the status of the lubricants or oil used to lubricate a wide range of components such as gearboxes, transmissions, engines and various other vital areas: if the oil becomes highly contaminated or degrades too much, it can damage various components.

Even though a number of aspects of in-service oils have to be monitored, the metal content provides information regarding the condition of both the oil and the engine to help determine when the oil has to be changed and also gauge the health of the engine. In view of this importance, ASTM developed a method for analyzing in-service oils: method D5185.

Given that metal concentrations are usually greater than 1 ppm, D5185 has specified ICP-OES as the analytical technique, together with specific criteria, as shown in Table 1. However, several labs that run D5185 process hundreds of samples on a daily basis, making it difficult to adhere to the method.

As a result, shortcuts are frequently taken to enhance sample throughput while maintaining quality data. Table 1 also shows the most common modifications.

Table 1. Highlights of ASTM D5185 and common implementation.

Parameter Specified by D5185 Common Implementation
Elements Al, Ba, B, Ca,Cr, Cu, Fe, Pb, Mg, Mn, Mo, Ni, P, K, Na, Si, Ag, S, Sn, Ti, V, Zn Elements important to the components being tested
Sample Preparation By weight By volume
Internal Standard Cd, Co, or Y Co
QC Frequency Every 5 samples Varies between 10-25 samples
QC Limits ± 5% ± 10%


Simultaneous ICP-OES instruments are preferred for high-throughput labs because of their ability to run many wavelengths at the same time. However, there are a reasonable number of labs with lower sample volumes where analytical speed is not as important. A lower-cost, hybrid scanning ICP-OES is considered to be the ideal instrument in these instances.

This article will focus on the analysis of in-service oils using PerkinElmer’s Avio™ 200 ICP Optical Emission Spectrometer1 (ICP-OES), following a common implementation of ASTM D5185.


Samples and Standards Preparation

In-service oil samples were obtained and diluted 10x by volume with V-Solv™ as a diluent, which was spiked with 40 ppm cobalt (Co) (to act as an internal standard).

Calibration curves were produced from a 75 cSt base oil as a blank, three V-23 stock solutions at 50, 100, and 500 ppm (PerkinElmer), and a Metals Additives Standard (MA4) (PerkinElmer) which contains Ca at 5000 ppm and P, Mg, and Zn at 1600 ppm.

All standards and the blank were prepared the same way as the samples. The 50 ppm V23 and the MA4 standards were used as QC samples during sample analysis. The MA4 was used as the QC for the additive elements, and the 50 ppm QC was used for all wear and contaminant metals.

Instrument Conditions

All analyses were carried out on the Avio 200 ICP- OES running in radial mode using the conditions in Table 2, with the analytes and wavelengths listed in Table 3.

These wavelengths have proven over many years to be interference-free in this application when using a spectrometer whose measured resolution is equal to or less than 0.008 nm at 200 nm. The nebulizer gas flow was altered so that the tip of the “green bullet” in the central channel was just below the top flat plate, as shown in Figure 1.

Table 2. Avio 200 ICP-OES instrumental parameters and conditions.

Parameter Value
Nebulizer GemCone™ (modified Babbington)
Spray Chamber Baffled glass cyclonic
RF Power 1500 W
Torch 3-Slot Avio torch for organics
Injector 1.2 mm ceramic
Plasma Gas Flow 10 L/min
Aux Gas Flow 0.8 L/min
Nebulizer Gas Flow 0.40 L/min
Torch Position -4
Sample Uptake Rate 2.0 mL/min
Sample Uptake Tubing Black/Black (0.76 mm id), Viton
Drain Tubing Red/Red (1.14 mm id), SolvaFlex
Read Delay 18 sec
Replicates 2
Rinse Between Samples 12 sec (fast pump at 6 mL/min)
Auto Integration Range 0.2 - 1.0 sec


Table 3. Analytes and wavelengths.

Element Wavelength (nm)
Al 394.401
Ag 328.068
B 249.677
Ba 232.527
Ca 315.887
Cd 228.802
Cr 205.560
Cu 324.752
Fe 259.939
K 766.490
Mg 279.077
Mo 203.845
Mn 257.610
Na 588.995
Ni 232.003
P 214.914
Pb 220.353
Sb 217.582
Si 288.158
Sn 189.927
Ti 334.940
V 292.464
Zn 213.857
Co (internal standard) 228.616

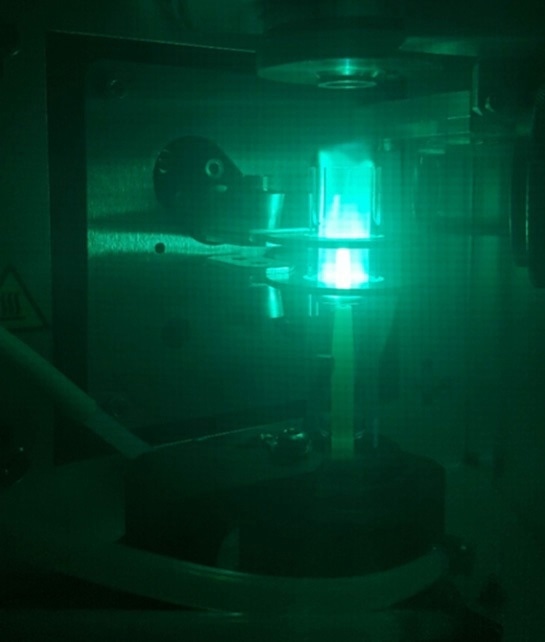

Correct position of green carbon "bullet" just below the second plate of Avio’s unique Flat Plate plasma technology, when aspirating V-Solv.

Figure 1. Correct position of green carbon "bullet" just below the second plate of Avio’s unique Flat Plate plasma technology, when aspirating V-Solv.

Results and Discussion

With the instrumental parameters shown in Table 2, the Avio 200 ICP-OES is capable of running a sample in five minutes, which includes measuring the 23 elements listed in Table 3 as well as the internal standard in two replicates. The analysis time is further reduced when fewer elements are measured.

This analytical speed is all that is required for a low-volume, in-service oil lab running 10 - 50 samples a day. Table 4 shows the results from a typical in-service oil sample.

The QC samples were measured both at the beginning and end of a run consisting of 15 in-service oil samples in order to determine stability. The results of the final QC sample are shown in Table 5, demonstrating that all elements recovered are within ± 10% of the true value and meet the acceptance criteria of standard in-service oil labs.

These results demonstrate the stability of the methodology, enabling a low-volume, in-service oil lab to effortlessly perform their daily analyses with the Avio 200 spectrometer.

A number of instrumental considerations of the Avio 200 ICP-OES contribute to its stability. First, the vertical torch demonstrates that any non-ionized sample will drain back down the torch instead of pooling in the injector, resulting in few carryover effects.

The shear gas cuts off the end of the plasma and prevents deposition on the axial window. Even though the axial mode is not used in this analysis, this feature enables using the Avio 200 for other analyses without having to worry about deposition or cone maintenance.

Finally, Avio’s unique Flat Plate™ plasma technology forms the plasma (Figure 1). This technology is extremely robust and does not require cooling, which translates to increased stability. Additionally, the flat plates reduce argon consumption: only 11.2 L/minute of total argon were used for these analyses.

Table 4. Results from a typical in-service oil sample.

Element Concentration (ppm) RSD (%)
Al 16 3.1
Ag < 0.5* -
B 81 2.8
Ba < 0.5* 5.9
Ca 2441 0.21
Cd < 0.5* -
Cr 1 2.6
Cu 1 0.26
Fe 27 0.44
K 5 8.0
Mg 17 2.2
Mo 25 0.87
Mn 1 0.69
Na 236 0.44
Ni 2 12
P 847 1.9
Pb 7 0.65
Sb < 0.5* -
Si 9 4.2
Sn < 0.5* -
Ti < 0.5* -
V < 0.5* -
Zn 974 2.8

* = lower quantification limit

Table 5. Final QC check samples of a 20 sample analytical run.

Element Final QC
Concentration (ppm) % Recovery
Al 50 100
Ag 48 96
B 54 108
Ba 49 98
Ca 45 90
Cd 50 100
Cr 50 100
Cu 50 100
Fe 53 106
K 49 98
Mg 46 92
Mo 49 98
Mn 49 98
Na 49 98
Ni 49 98
P 46 92
Pb 50 100
Sb 50 100
Si 48 96
Sn 49 98
Ti 50 100
V 49 98
Zn 47 94



This article has shown the ability of the Avio 200 ICP- OES to examine in-service oils after a common implementation of ASTM method D5185. The five-minute analysis time is fast enough for low-volume labs, even though it is not as appropriate for high-throughput laboratories running hundreds of samples a day.

Analysis time improves as the number of elements decreases, making the Avio 200 an ideal choice for labs wishing to implement D5185 while leveraging the Avio 200 benefits.

Consumables Used

Component Part Number
Sample Uptake Tubing, Black/Black (0.76 mm id), Viton N0773118
Drain Tubing, Red/Red (1.14 mm id), SolvaFlex 09923037
Metal Additives Standard, MA4 N9308259 (100 g)
N0776108 (200 g)
N9308333 (400 g)
V-23 Wear Metals Standard, 50 µg/g N9308243 (100 g)
N0776104 (200 g)
N9308317 (400 g)
V-23 Wear Metals Standard, 100 µg/g N9308245 (100 g)
N0776105 (200 g)
N9308318 (400 g)
V-23 Wear Metals Standard, 500 µg/g N9308249 (100 g)
N0776106 (200 g)
N9308320 (400 g)
Cobalt Internal Standard, 6% in hydrocarbon oil N0776107 (200 g)
N9304168 (400 g)
V-Solv Solvent N9308265 (1 gallon)
N9308378 (5 gallons)
Sample Tubes, 17x100 mm, 1200 N0777167



1. http://www.perkinelmer.com/product/avio-200-icp-optical-emission-spectrometer-avio200
