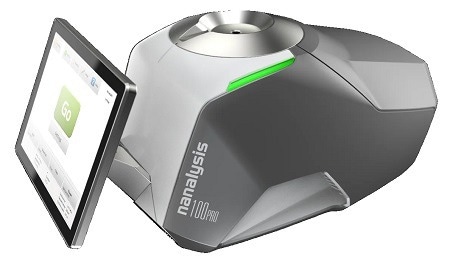

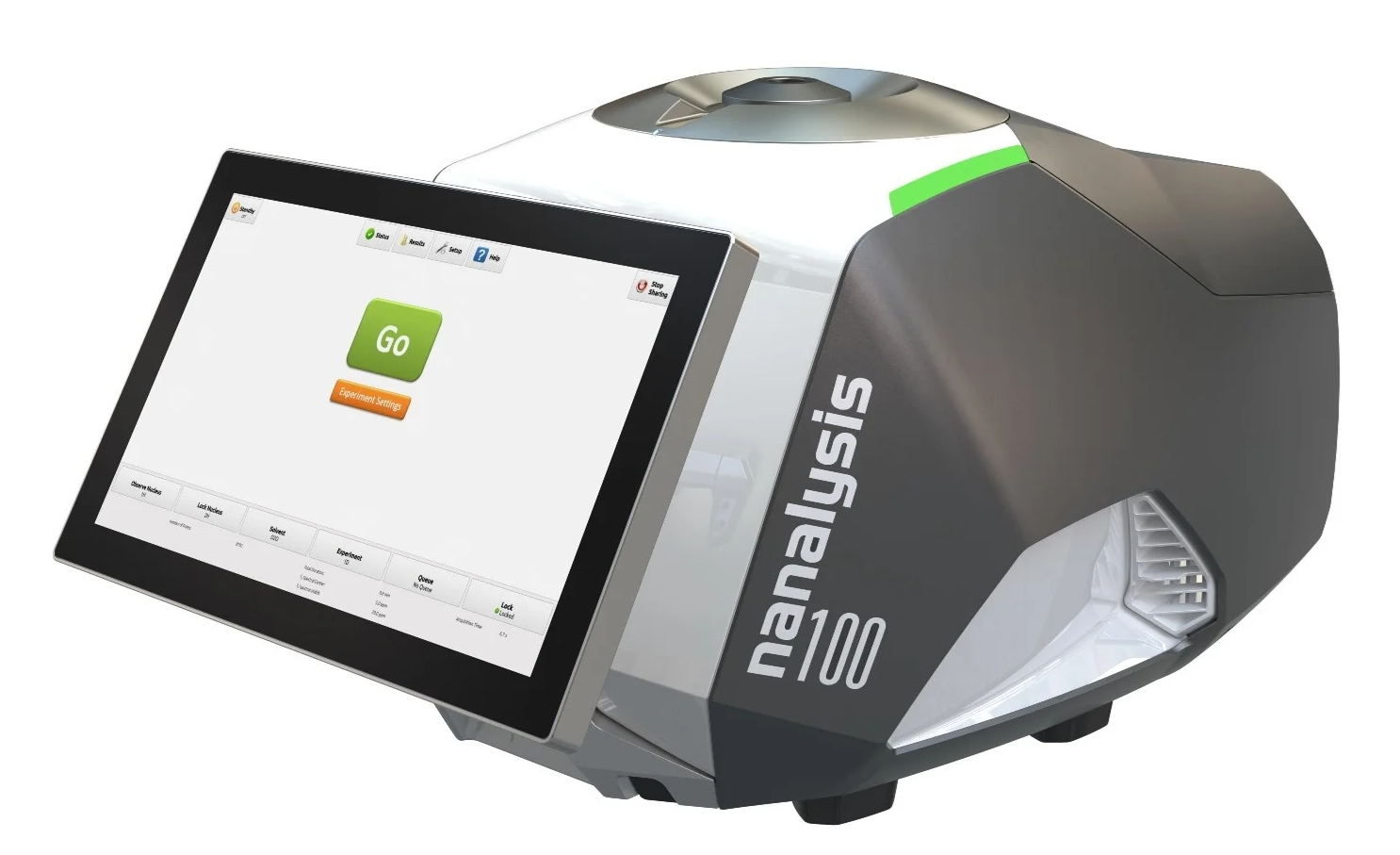

The Nanalysis-100 Benchtop NMR Spectrometer

The Nanalysis-100 is the market-leading benchtop NMR spectrometer, delivering the highest field strength available in its class. It’s built to generate exceptional multi-nuclear 1D and 2D NMR data with outstanding clarity and precision.

Housed in a sleek, all-in-one enclosure with an intuitive interface, the Nanalysis-100 offers:

• Exceptional sensitivity – Run samples at sub-millimolar concentrations and collect data in seconds.
• Outstanding stability – Easy to site and capable of producing reliable, repeatable data without fuss.
• Superior resolution – Optimized chemical shift dispersion ensures clean, high-quality spectra.
• Ergonomic usability – A large, movable touchscreen computer makes the system easy to operate.

Optional Features

• Remote access via smartphone, tablet, or computer
• Non-deuterium lock options
• Custom pulse program creation with the Experiment Designer
• Pulsed-field gradients for faster 2D experiments and enhanced water suppression
• IQ/OQ/PQ protocols and GxP-compliant modules
• Kinetics packages for reaction monitoring
• Automation tools for generating quantitative NMR (qNMR) data at the click of a button
• Signal suppression options

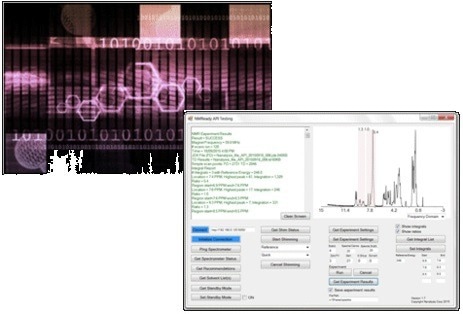

• API support through NMReady-CONNECT for custom applications
• Secure login and user profile customization for project-specific settings

Low Maintenance

Thanks to a permanent magnet design, the Nanalysis-100 requires no cryogens, preventative maintenance, or weekly service. It uses standard 5-mm NMR tubes and features automated shimming routines. Just plug it into a standard wall outlet—no specialized staff required.

Multinuclear Capability

The Nanalysis-100 supports a broad range of spin-active nuclei, including: ¹H, ⁷Li, ¹¹B, ¹³C, ¹⁵N, ¹⁹F, ²⁹Si, ³¹P, and ¹²⁹Xe, among others.

Customizable Experience

Pre-loaded with a comprehensive library of standard NMR experiments—such as 1D, COSY, TOCSY, JRES, T₁, T₂, DEPT, APT, HETCOR, HSQC, HSQC-ME, and HMBC—the system also allows full parameter customization. Whether you’re checking sample composition, purity, or reaction completion, you can generate meaningful results right in the lab.

Quick and Easy-to-Use

Just like other instruments in the Nanalysis benchtop series, the Nanalysis-100 features an integrated touchscreen interface. You can launch standard experiments instantly or adjust acquisition settings as needed. Built-in processing software enables full data analysis onboard, with seamless export options for third-party tools or direct printing. With its unmatched sensitivity, the Nanalysis-100 captures high-quality data in seconds.
