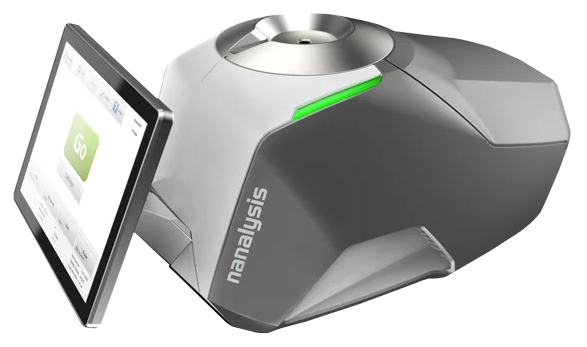

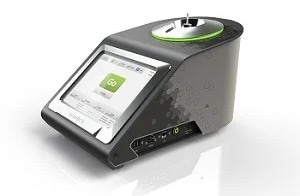

Nanalysis 60PRO Benchtop NMR

The Nanalysis 60PRO benchtop NMR is an advanced NMR spectrometer that is specifically designed for industry customers with market-leading compact size and weight; advanced features and multi-nuclear support; and excellent return on investment. The instrument operates at 60 MHz (1.4T) and provides a resolution of 1Hz and a sensitivity of 100:1 SNR (single scan, 1% ethylbenzene).

The Nanalysis 60PRO benchtop NMR can be adjusted to obtain spectra for many traditional spin active nuclei, thereby improving its use for defining a wide range of both synthetic and natural products.

The instrument's supported nuclei are 1H, 7Li, 11B, 13C, 19F, and 31P (dual-mode).

The spectrometer allows access to the pulse programming interface, allowing users to customize their own experiments or load or customize pre-existing experiment from a series of 1-D, relaxation, homo-and hetero-nuclear 2-D templates. This includes T1, T2, COSY, Nutation, DEPT, HETCOR, HSQC, signal suppression, and decoupling.

Compact, Portable, and Energy-Efficient

The Nanalysis 60PRO benchtop NMR is a multi-purpose benchtop NMR spectrometer that is lightweight, easy-to-site, and has a compact footprint, making it easy to use anywhere, anyplace. The spectrometer can be plugged into standard power outlets and consumes a minimum amount of energy. When not in use, it can be set to a power-saver mode.

The Nanalysis 60PRO benchtop NMR can be used with standard 5mm NMR tubes and standard NMR sample volumes. In addition, the permanent magnet eliminates the need for cryogens and weekly servicing. Five Gauss lines are also contained in the enclosure.

Nanalysis 60 MHz Benchtop NMR at SpiroChem

Nanalysis Customer Testimonial: Benchtop NMR at SpiroChem

Video Credit: Nanalysis Corp.

Quick and Easy-to-Use

The next-generation Nanalysis 60PRO benchtop NMR enhances workflow and thus increases research productivity. The sophisticated on-board software is customized for simple data acquisition and analysis.

Many pre-existing experiments are outlined with typical parameters that can be modified as required. It is possible to save and load standard NMR experiments and data collection on-demand to simplify data collection and analysis.

Simple Reaction Monitoring

The onboard user interface helps in acquiring a single spectrum or multi-spectral data in a rapid way. Reaction monitoring, kinetics experiments, and speciation plots are made easy with simple manual integration cuts and plotting functions.

In addition, multiple connectivity options are available to export data that can later be printed and processed as required. Secure and accessible data is ensured through Wi-Fi, USB, Ethernet, secure login, and individual user profiles.

Configure, Acquire and Analyze

Preferred experiments can be selected and acquisition parameters can be altered from pop-up menus. After the configuration is over, data can be obtained by simply selecting "GO".

Once data is acquired, the initial scan is displayed which is updated every additional four scans. Additionally, advanced on-board data processing makes it quite easy to process and study 1-D, 2-D, and multi-spectral data. This spectral data is saved as standard .jdx files and can be used with a range of third party software tools.

60 MHz Benchtop NMR Demo

Video Credit: Nanalysis Corp.

Key Features

The main features of the Nanalysis 60PRO benchtop NMR spectrometer include:

  • Compact and portable
  • Energy-efficient
  • Weighs only 55lbs
  • Low maintenance
  • Traditional sample preparation
  • A limited stray magnetic field
  • Utilizes standard 5mm NMR tubes
  • Large 10" touch screen display
  • Can be plugged into a standard wall outlet
  • Decoupling and signal suppression
  • Pulse Program Control allows users to customize their own experiments; alternatively, users can use one of the templates... COSY, DEPT, HSQC, T1, T2, Nutation, HETCOR
  • Kinetics capabilities for simple reaction monitoring
  • Network printing
  • Secure login and user profiles
  • Export to shared folders
  • Internet-based support (optional)

Technical Specifications

The specifications of the Nanalysis 60PRO benchtop NMR spectrometer are given in the table below:


Operating Frequency: 60 MHz (1.4 T)
Magnet: Permanent, no cryogens
User Interface: Built-in Touchscreen
Nuclei: 1H, 7Li, 11B, 13C, 19F and 31P (dual mode)
Lock: Deuterium with non-deuterium options
Sample: Standard 5 mm NMR tubes
Compatibility: JCAMP-DX, Mestrelab MNova, LabVIEW, NMRFx, SPINit
Resolution: Line-width at 50% = 1 Hz
Sensitivity: 100:1 (EtBz 1% single scan)
Stray Field: 5 Gauss line contained within the enclosure
Operating Temp: 18-26 °C
Power: 100-240 VAC, 50-60 Hz
Dimensions: 12 x 11 x 19" (30 x 28 x 49 cm)
Weight: 58 lbs (26.3 kg)
