Family of Fast and Compact Micro-Positioning Stages Powered by Ultrasonic Motors

Precision motion and nanopositioning leader PI (Physik Instrumente) delivers a family of compact linear and rotary stages driven by ceramic direct-drive motors. The patented ultrasonic motors provide smooth motion with high resolution and a high dynamic range. The self-clamping motor principle locks the stage into place, devoid of creep, once a target position has been reached. This intrinsic brake-like behavior comes at no extra cost, and provides advantages that are not available with classical electro-magnetic drive technologies.

Applications

Medical Devices, Optical Instrumentation, Photonics Alignment, Super-Resolution Microscopy

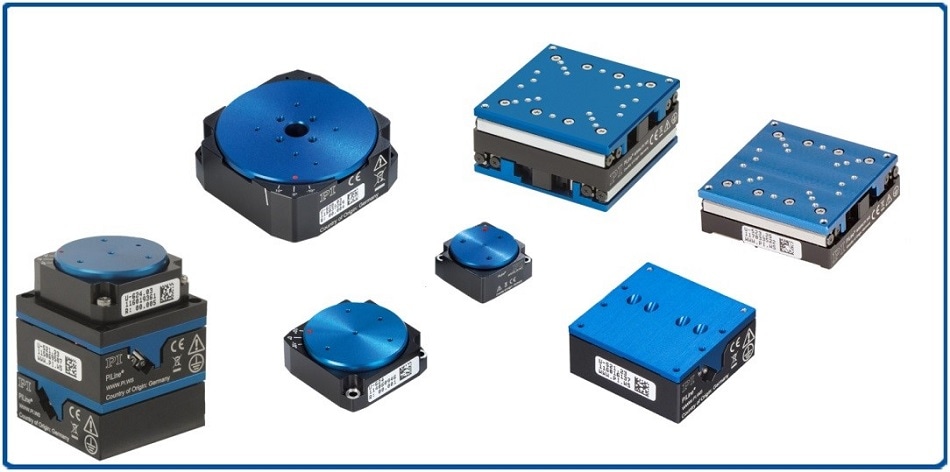

XY, Linear and Rotary Stages: Compact, Fast and Quiet, Wide Dynamic Range

Two linear stages with 18mm and 22mm travel are available, as well as an XY stage providing 22x22mm. Several encoder options, from 0.4µm to 10 nanometers, are standard. All stages achieve closed-loop peak velocities to 200mm/sec. The rotary stages come with turn-table diameters from 20 to 50mm, encoder resolution down to 17µrad, and maximum velocity of 720 degrees per second.

The low inertia direct drive (no gears and other mechanical components to convert motion) allows for a very dynamic start-stop behavior with settling times in the millisecond range. Based on the ultrasonic principle with drive frequencies >100kHz – way beyond the human hearing range – the motors are silent. Displacement is generated in continuous sub-nanometric increments, leading to extremely smooth motion with a wide dynamic range.

Multi-Axis Combinations

Linear and rotary stages can be combined to form multi-axis combinations.

Low Power Requirements

Due to the high efficiency of the ultrasonic motors, the miniature stages can be integrated into mobile measuring and medical devices. Vacuum compatible versions are also available.

Watch the Ultrasonic Motor Drive Principle!

OEM and Bench-Top Motion Controllers, Software Package

To take advantage of the operating principle, providing superior dynamic performance with settling times in the millisecond range while maintaining high resolution and smooth operation, ultrasonic motors benefit from advanced control strategies, such as automatic switchover between several static and dynamic PID parameter sets and adaptive frequency tracking. PI offers a number of ultrasonic motion controllers available in desktop, rack-mount, and OEM configurations. An ASIC chip containing the motion control algorithms is also available for OEM customers.  A comprehensive software package is included: drivers and example programs for LabVIEW, dynamic libraries for Windows and Linux, MATLAB are available. Interfaces include TCP/IP, USB, RS-232 and analog.

Specifications, Datasheets, More Information

http://www.pi-usa.us/products/Compact_Positioning_Stages/#Ultrasonic

Read Tech Article about Ultrasonic Motors

http://www.pi-usa.us/blog/positioning-capabilities-of-ultrasonic-motors/

Closed-Loop Controller, U-867

http://www.pi-usa.us/products/Motor_Controllers/Motor_Controller_Precision_Positioner.php#C867

Compact, Low Cost Controllers for Ultrasonic Motors, C-877, also comes in OEM version

http://www.pi-usa.us/products/Motor_Controllers/Motor_Controller_Precision_Positioner.php#PMCS
