Flexible Multi-Axis Motion Sub-System for System Integrators and Machine Builders Comes with High-Dynamics Linear Motor Stages and EtherCat-Based Motion Controller

Machine builders and system integrators can move faster and address new, higher precision applications with reduced risk and cost, due to the extensive testing that went into the X-417 pre-configured high-accuracy motion and automation systems, including EtherCat motion controllers and software. Its modular design enables application-specific configurations, scalability with optional accessories, and delivery by PI already aligned, tuned, and calibrated to your specifications.

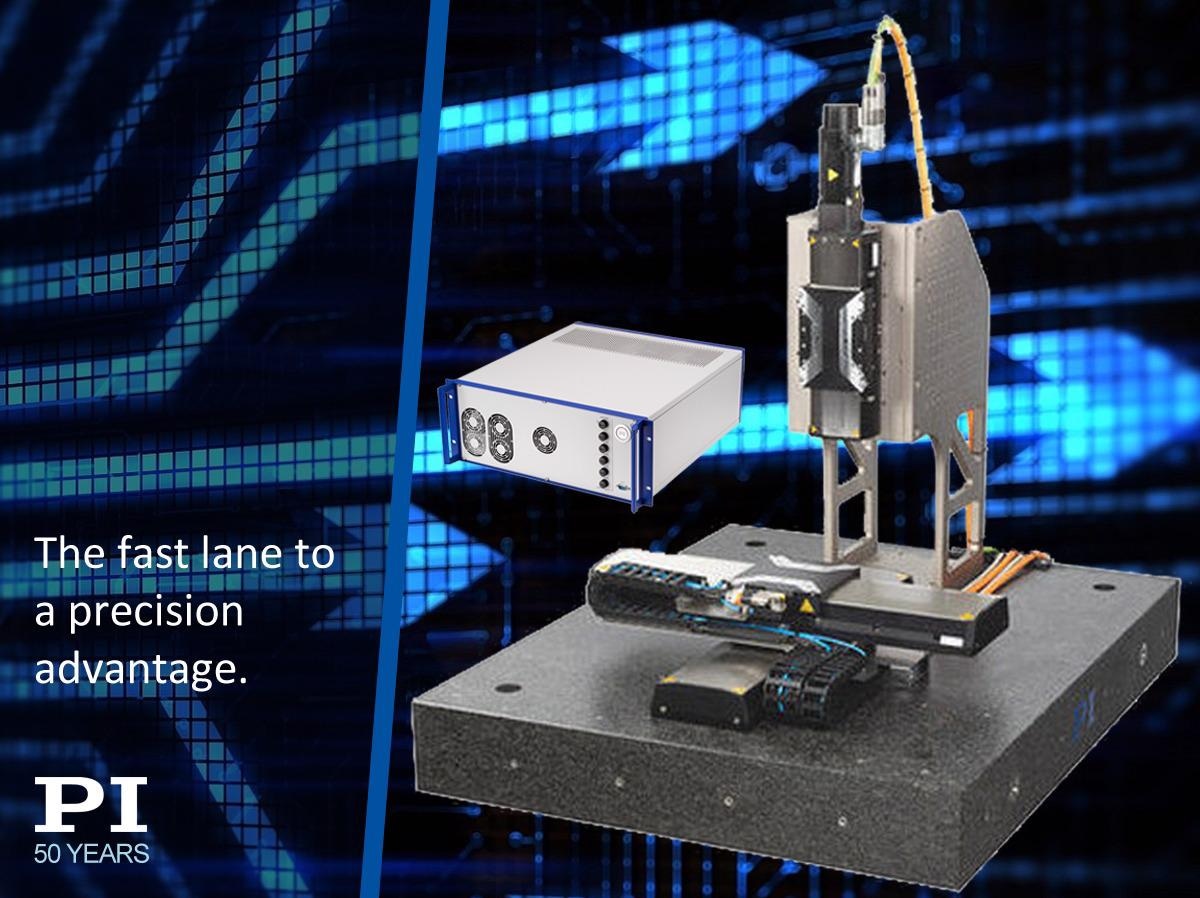

Flexible XY and XYZ systems based on proven, high performance linear motion modules and ethercat-based controller

The XY base system is made of two 3-Phase motor powered V-417 linear stages with travel ranges from 204 to 407 mm. Integrated absolute-measuring linear encoders provide better reliability, while eliminating the need to reference. A granite base plate is available for stability and can hold the G-901 EtherCat-based controller with ACS driver module. PI supports customers, system integrators, and machine builders to quickly configure and integrate the appropriate system, reducing design and development time while optimizing the outcome.

The XYZ system includes an L-412 high-load linear stage mounted vertically, providing 4” (102 mm) travel range. The Z-stage is equipped with a synchronous servo motor and a holding brake.

Watch the video»

Specifications, Datasheet, More Information»

Working with you

PI’s in-house engineered solutions have enabled customers around the world to increase their productivity and technological advantage for 5 decades. With a large basis of proven motion technologies and methodologies, PI is in the position to quickly modify existing designs or provide a fully customized OEM solution to fit the exact requirements of your application from sensors and piezo transducers to microscope nano-focus units, fast photonics alignment systems to multi-axis automation sub-systems.
