Scientists at the Department of Microsystems Engineering (IMTEK) and the
Freiburg Materials Research
Center (FMF) have succeeded in developing a method for treating the surface
of nanoparticles which greatly improves the efficiency of organic solar cells.
The researchers were able to attain an efficiency of 2 percent by using so-called
quantum dots composed of cadmium selenide.

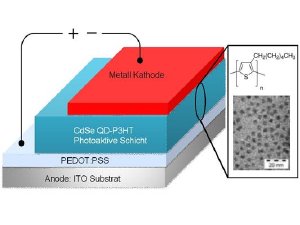

 | | Solarzelle / Quelle: IMTEK
|
These measurements, well above the previous efficiency ratings of 1 to 1.8
percent, were confirmed by the "Dye and Organic Solar Cells" research group
of the Fraunhofer Institute for Solar Energy Systems at the FMF. The photoactive
layer of hybrid solar cells consists of a mixture of inorganic nanoparticles
and an organic polymer. As it is theoretically possible to apply the method
developed by the researchers to many nanoparticles, this breakthrough opens
up new potential for increasing the efficiency of this type of solar cell even
further. The procedure has been patented and the results were published in a
recent issue of the renowned journal "Applied Physics Letters."
Organic solar cells belong to the so-called third generation of solar cells
and are still in the developmental stage. The world record for purely organic
solar cells, a type in which both components of the photoactive layer consist
of organic materials, is currently at 7 percent for layers created through wet
chemical methods. Organic solar cells have many advantages over the conventional
silicon cells typically used for large-scale energy production: Not only are
they are considerably thinner and more flexible, they are also less expensive
and quicker to produce. They are thus better suited for powering everyday devices
and systems which are not in constant use, such as sensors or electrical appliances.
In the long run, organic solar cells could drastically reduce our dependence
on batteries and cables.
The research group which developed the groundbreaking new solar cells is a
close-knit team of chemists, physicists, and engineers from IMTEK and FMF. "The
interdisciplinary orientation of the group is a clear advantage and has led
to rapid progress on the project. We were able to carry out all of the steps
on our own: from the synthesis of the nanoparticles to the modification of their
surface and integration into composite materials," says group head Dr.
Michael Krüger. His "Nanosciences" research group is part of
the Chair for Sensors at IMTEK held by Prof. Dr. Gerald Urban. The group is
now applying the methods described in the publication to other promising materials
systems – also as part of a joint research project sponsored by the German
Federal Ministry of Education and Research – in order to refine them further
and shape them into a market-ready technology. The necessary preconditions for
marketability are marked improvements in efficiency, a further increase in the
durability of the materials, and a reduction in production costs.
The project "Quantum Dot Polymer Hybrids as Photoactive Material in Solar
Cells" receives funding from the German Research Foundation through the
IMTEK research training group "Micro Energy Harvesting."
Posted February 2nd, 2010
|
