Physik Instrumente (PI), a global leader in precision motion control and nanopositioning solutions, introduces the L-886 Goniometer Family, a series of high-performance motorized units designed for precise angular positioning in demanding research and industrial environments.

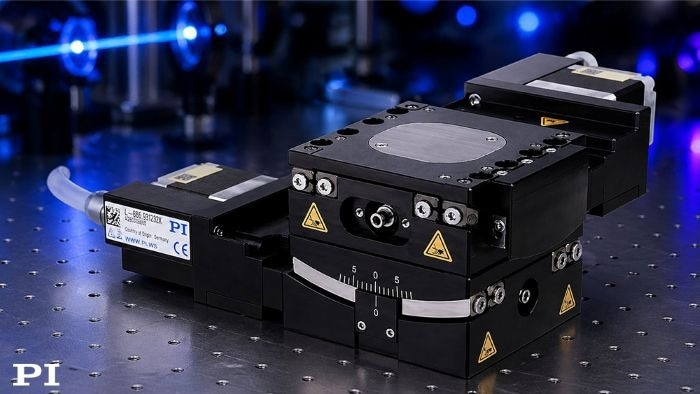

The stackable design of the L-886 goniometer series preserves a common center of rotation, a great advantage in multi-axis alignment applications. Image Credit: PI (Physik Instrumente) LP
Engineered for accuracy, flexibility, and cost efficiency, the L-886 goniometer series provides a rotation range of up to 17 °, combined with a payload capacity of up to 3.5 kg. Its excellent repeatability of motion and encoder resolution of better than 1 µrad ensures reliable and reproducible positioning, making it ideal for applications requiring ultra-fine angular adjustments.
6-Axis Alignment System with Three Goniometers
The compact design enables easy integration into multi-axis systems, including combinations with linear, vertical, and XY stages, such as the L-836 linear stage family. This flexibility makes the L-886 goniometers particularly well suited for optical inspection, fiber alignment, semiconductor testing, and metrology applications where space constraints and precision are critical. A complete 6-axis photonics alignment system integrating three L-886 goniometers is also available.
Dynamic Applications
With a maximum angular velocity of up to 10 °/s, the motorized precision stages also support dynamic motion requirements, enabling efficient alignment workflows in production and laboratory environments.
The L-886 goniometer complements PI’s broad portfolio of rotary and linear precision motion and positioning systems, offering a cost-effective solution without compromising performance. Its robust mechanical design and high positioning accuracy, along with long-term stability and repeatability, are essential for high-throughput industrial test, and assembly applications.
Industries and Applications Served
Photonics & Optical Alignment, Semiconductor Manufacturing & Metrology, Microscopy & Life Sciences, Laser Processing & Advanced Manufacturing, Aerospace & Defense, Industrial Automation & Metrology Systems
