The Thomas Swan carbon nanomaterials business is dedicated to manufacturing commercial quantities of high purity single and multi-wall carbon nanotubes under the Elicarb™ trademark.
Elicarb MW (Dry) Multi-Wall Carbon Nanotubes
Description
CVD grown multi-wall carbon nanotubes delivered as dry powder
Product Ref: P940
C.A.S Number: 7782-42-5
EC Number: 231-955-3
Typical Properties
Average diameter: 10 - 12 nm
Average Length: Microns
Purity: 70% - 90% multi-wall nanotubes
%20Multi-Wall%20Carbon%20Nanotubes%20From%20Thomas%20Swan_files/image002.jpg)
Figure 1. Low, medium and high magnification SEM images of carbon nanotubes
%20Multi-Wall%20Carbon%20Nanotubes%20From%20Thomas%20Swan_files/image003.jpg)
Figure 2. Low, medium and high magnification TEM images of carbon nanotubes
%20Multi-Wall%20Carbon%20Nanotubes%20From%20Thomas%20Swan_files/image004.jpg)

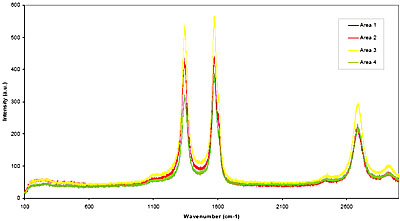

Figure 3. Raman Spectra of different areas of Sample K1727 CNTs
|
