by Professor Javier Garcia-Martínez
Professor Javier Garcia-Martínez, Elena Serrano and Guillermo
Nanotechnology Lab, Inorganic Chemistry Dpt, University of Alicante,
Alicante, Spain. bDpt. Structural Mechanics, University of Granada,
Corresponding author: firstname.lastname@example.org
Nanotechnology, with its unprecedented control over the structure of
materials, can provide us with superior materials that will unlock tremendous
potential of many energy technologies currently at the discovery phase. The
quest for more sustainable energy technologies is not only a scientific endeavor
that can inspire a whole generation of scientists, but the best way to establish
a new economy based on innovation, better paid jobs, and care for the
Solar Energy: Nanotechnology to Capture the Energy of the Sun
According to the IEA Energy Statistics3, the
renewable energy accounted for around 13.1% of the fuel share of world's total
primary energy supply energy in 2004, where photovoltaic technology represented
only the 0.04%. Thus even if solar energy is free and abundant, we are still far
away of an energetic system based on this technology.
Besides, the Alternative Policy Scenario presented in 2006 World Energy
Outlook4 has predicted an increase of photovoltaics
of around 60 times from 2004 to 2030 year. In fact, the evolution of
photovoltaic technology has provoked that its price has fallen down to a tenth
in the last 20 years (from 2.00 $/kWh in 1980 to 0.20-0.30 $/kWh in 2003).
Independent studies suggest that the costs will continue to fall and that it is
plausible to envisage costs of around 0.06 $/kWh by 2020.
The application of nanotechnology in PV cells is already producing some
significant advantages to increase the efficiency/cost ratio by using materials
with different bandgaps, i.e., multilayers of ultra-thin nanocrystalline
materials, new dyes or quantum dots, among others. For example, the ability to
control the energy bandgap provides flexibility and inter-changeability. Also,
nanostructured materials enhance the effective optical path and significantly
decrease the probability of charge recombination. Quantum well devices such as
quantum dots and quantum wires, as well as devices incorporating carbon
nanotubes, are being studied for space applications with a potential efficiency
up to 45%.
Nanocrystal quantum dots (NQDs)5 are nanometer-scale
single crystalline particles of semiconductors. Due to the quantum confinement
effect, their light absorption and emission wavelengths can be controlled by
tailoring the size of NQDs. Nowadays, conventional solar cells are mostly built
on silicon (Figure 1). Because the high cost of PV-grade silicon, this technology
is not likeky to be the one to bring down the cost of solar generated electricity
below1 $/kWh. In contrast, as an example of their attractive future as more
efficient solar cells, analogous nanocrystalline quantum dots have close to

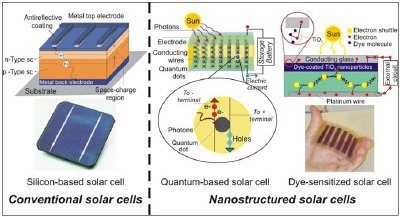

Figure 1. Evolution of PV technology: from
conventional (silicon-based solar cells) to nanostructured solar cells
(quantum-based and dye-sensitized solar
The use of nanocrystalline materials in thin-film multilayered cells also
help achieve a regular crystalline structure, which further enhances the energy
conversion efficiency. An example of nanostructured layers in thin-film solar
cells has been recently reported by Singh et al.6
Nanocrystalline CdTe and CdS films on ITO-coated glass (indium tin oxide)
substrates have been synthesized as potential n-type window layers in p-n
homo(hetero)junction thin-film CdTe solar cells. CdTe nanocrystals of around 12
nm in diameter exhibit an effective band gap of 2.8 eV, an obvious blue shift
from the 1.5 eV of bulk CdTe (Figure 2).

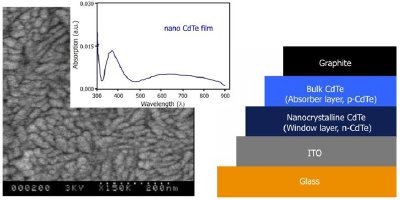

Figure 2. Example of nanomaterials for
photovoltaic cells fabrication. Left part: FE-SEM image of a nanocrystalline
CdTe film on ITO-coated glass substrate. The inset shows the absorption spectrum
of a nanocrystalline CdTe film on ITO-coated glass substrate. Right part: Device
configuration of a Glass/ITO/n-Nano-CdTe/p-bulk CdTe/graphite solar cell.
Adapted with permission from ref.6. Copyright 2004,
Another alternative offered by nanotechnology to conventional silicon-based
solar cells is the use of dye-sensitized solar cells. Dye-sensitized
photoelectrochemical solar cells (PES or Grätzel cells) represent a relatively
new class of low-cost thin-film solar cells7.
Nano-structured TiO2, CeO2, CdS and CsTe are of great
interests as the windowing and light absorbing layers8,9. These dye-sensitized nanostructured solar cells, which
comprise devices such as nanocrystal solar cells, photoelectrochemical cells and
polymer solar cells, are being studied for terrestrial applications and
represent the third generation of photovoltaics.
The last advances in photovoltaic technology are based on the preparation of
nanocomposites based on the mix of nanoparticles with conductive polymers or
mesoporous metal oxides with high surface areas thus increasing internal
reflections and, consequently, having a single multispectrum layer.
Advanced Nanomaterials for Fast and Efficient Energy Storage
Many of the clean energy alternatives produce (e.g. PV solar cells, wind) or
require (e.g. hydrogen production, water splitting) electricity. Therefore, a
more novel and efficient way to store electricity is needed. Energy storage
systems include batteries, and among them Li-ion batteries are specially
attractive because they lead to an increase of 100-150% on storage capability of
energy per unit weight and volume as compared with the more traditional aqueous
batteries. Nevertheless, some disadvantages arise, related to low energy and
power density, large volume change on reaction, safety and costs.
Nanotechnology is already producing some very specific solutions to the field
of rechargeable batteries. Electrolyte conductivity increases up to six times by
introducing nanoparticles of alumina, silicon or zirconium to non-aqueous liquid
electrolytes. Most efforts have been focused on solid state electrolytes, solid
polymer electrolytes (SPE).
Poly(ethylene oxide)-based (PEO-based) SPE received most attention since PEO
is safe, green and lead to flexible films. Nevertheless, polymers usually have
low conductivity at room temperature and, depending on SPE compositions, their
interfacial activity and mechanical stability are not high enough.
In this sense, nanocomposite polymer electrolytes could aid in the
fabrication of highly efficient, safe and green batteries. For example, the
introduction of ceramic nanomaterials as separators in polymer electrolytes
increases the electrical conductivity of these materials at room temperature
from 10 to 100 times compared with the corresponding undispersed SPE system.
TiO2, Al2O3 and SiO2 and
S-ZrO2 (sulphate-promoted superacid zirconia) have been used for this
purpose and results reveal that the introduction of S-ZrO2 led to the
Other Opportunities for a Brighter Future
There are many other examples of the use of nanotechnology to make energy
production, storage and use more efficient, like the use of nanostructured
electrodes in supercapacitors10, novel hierarchical
porous catalysts for advanced chemical processing or nanostructured catalytic
electrodes for fuel cell applications. For example, nanostructured carbon
materials with different structures has been synthesized in our laboratory via
supramolecular templating obtaining cabon nanofoams with high surface area and
good electrical conductivity, excellent chemical, mechanical, and thermal
stabilities (Figure 3)10.

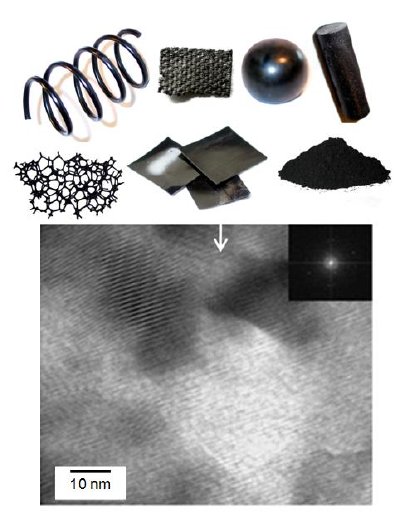

Figure 3. Nanostructured carbon materials
with different structures prepared via supramolecular templating and TEM image
for nanostructured carbon thin films. Adapted with permission from ref. 10. Copyright 2008, Wiley Interscience.
These materials were tested by cyclic voltammetry as supercapacitor
electrodes and these materials exhibit specific capacitances over 120 F A/g or
100 F A/cm3, powder densities of 10 kW A/kg and energy densities of
10 Wh A/kg. But there are many other opportunities, like light nanocomposites
for more energy efficient transportation, the use of nanomaterials in
construction and nanoporous adsorbents for CO2 capture11.
Nanotechnology unprecedented control over the size, structure, and
organization of matter is providing very tangible examples of how better
materials are contributing to the well-being of present and future generations
by proving alternative cleaner ways to produce and use energy.
1. J. Garcia Martinez, Ed. "Nanotechnology for the Energy
Challenge", Wiley-VCH, Weinheim, 2010.
2. Serrano E., Rus G.,
Garcia-Martinez J. "Nanotechnology for sustainable energy", Renew. Sust. Energy
Rev., 13(9), 2373-84, 2009.
3. "Renewables in global
energy supply: an IEA facts sheet", IEA/OECD. 2007.
Energy Outlook 2006, OECD/IEA 2006.
5. Stockman M.,
"Light-emitting devices: From nano-optics to street lights" Nature Mater. 3 (7),
6. Singh R.S., Rangari V.K., Sanagapalli S.,
Jayaraman V., Mahendra S., Singh V.P., "Nano-structured CdTe, CdS and TiO2 for
thin film solar cell applications" Sol. Energy Sol. Cells 82, 315-33,
7. O'Regan B., Grätzel M., "A low-cost, high-efficiency
solar cell based on dye-sensitized colloidal TiO2 films" Nature 353, 737-40,
8. Corma A., Atienzar P., Garcia H., et al.
"Hierarchically mesostructured doped CeO2 with potential for solar-cell use",
Nature Mater. 3, 394-7 (2004).
9. Singh V.P., Singh R.S.,
Thompson G.W., Jayaraman V., Sanagapalli S., Rangari V.K., "Characteristics of
nanocrystalline CdS films fabricated by sonochemical, microwave and solution
growth methods for solar cell applications" Sol. Energy Mater. Sol. Cells 81(3),
10. Garcia-Martinez J, Lancaster TM, Ying JY,
"Synthesis and catalytic applications of self-assembled carbon nanofoams", Adv.
Mater. 20(2), 288-92, 2008.
11. Willis R.R., Benin A., Snurr
R.Q., Yazaydin O., "Nanotechnology for Carbon Dioxide Capture, in Nanotechnology
for the Energy Challenge", in Nanotechnology for the Energy Challenge, Ed. J.
Garcia Martinez, Wiley-VCH (2010).
