Photoluminescence Mapper

Photoluminescence spectroscopy is a proven, non-destructive, measurement technique for material characterisation. It is used to determine compositions of alloys and material quality as well as the quantification of lattice defects. A PL Mapper is a laser based instrument used to generate maps of several parameters over full wafers by measuring optical luminescence emission from materials excited with energy above their bandgap.

Request a Quote for Photoluminescence Mapper

If you'd like us to help you source a Quotation for Photoluminescence Mapper please click here. Once submitted, we will try and place you in contact with a suitable Photoluminescence Mapper supplier within 48 hours.

Equipment

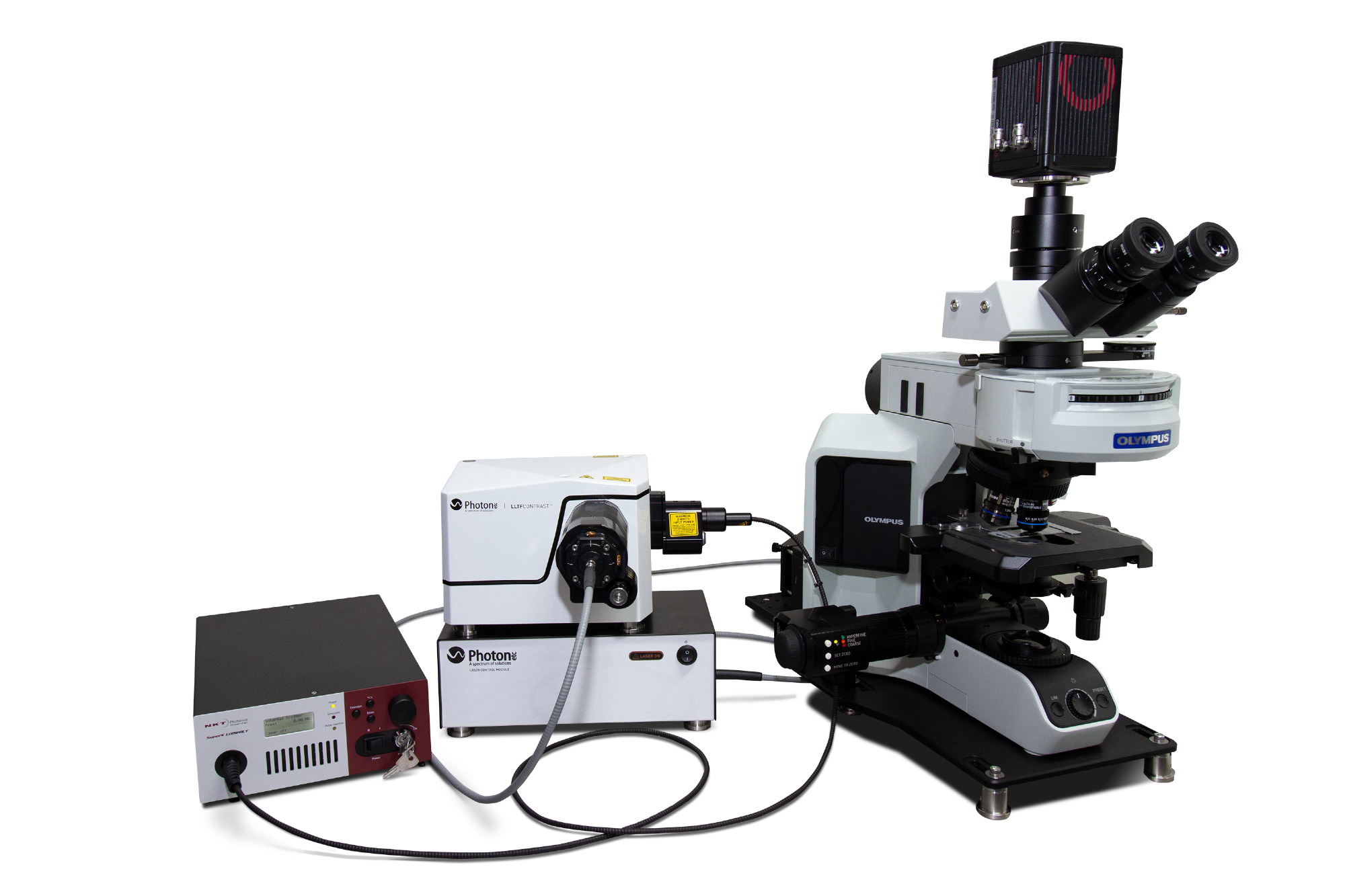

IMA - Hyperspectral Photoluminescence Imager from Photon etc

From solar cells to live cells, the quick and comprehensive Photon etc IMA system is suitable for photo or electroluminescence and offers excellent image and data quality.

RPM2000 Rapid Photoluminescence Mapper from Nanometrics

The RPM2000 Rapid Photoluminescence Mapper is a fast, room temperature photoluminescence (PL) mapping system suitable for use in R&D, production and quality control environments. The RPM2000 has been designed specifically to obtain whole wafer PL maps in a mere fraction of the time previously associated with this sort of measurement, giving the ability to measure and assess wafers between production runs.

Photoluminescence Mapping and Imaging System - LabRAM ARAMIS-PL from Horiba

Photoluminescence (or PL) is a spectroscopy technique providing information on electrical and optical properties of semiconductor materials, such as bandgap, emission wavelength, crystallinity and crystal structure, defects etc...
