Increasing evidence suggests that nanoscale zerovalent iron (nZVI) is effective
for the removal of arsenic from contaminated water, but the immobilization mechanism
is unclear. In particular, the existence of As(0) on the nanoparticle surface
has been proposed but not substantiated in prior studies. By using high-resolution
X-ray photoelectron spectroscopy (HR-XPS), we report clear evidence of As(0)
species on nZVI surfaces after reactions with As(III) or As(V) species in solutions.
These results prove that reduction to elemental arsenic by nZVI is an important
mechanism for arsenic immobilization. Furthermore, reactions of nZVI with As(III)
generated As(0), As(III), and As(V) on the nanoparticle surfaces, indicating
both reduction and oxidation of As(III) take place with nZVI treatment. The

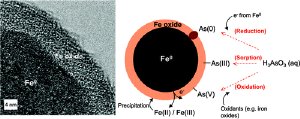

dual redox functions exhibited by nZVI are enabled by its core-shell structure
containing a metallic core with a highly reducing characteristic and a thin
amorphous iron (oxy)hydroxide layer promoting As(III) coordination and oxidation.
Results demonstrated here shed light on the underlying mechanisms of arsenic
reactions with nZVI and suggest nZVI as a potential multifaceted agent for arsenic
remediation.  | |
Arsenic is a well-known carcinogen, and arsenic contaminated groundwater is
prevalent around the world, particularly in South Asia. In the United States,
groundwater supplies about one-third of the country's drinking water. However,
there are many locations in the southwestern states where groundwater contains
arsenic concentrations in excess of the World Health Organization (WHO) guidelines
and the U.S. Environmental Protection Agency (USEPA) drinking water standard
of 10 ėg/L.(1-3) On a worldwide scale, it has been estimated that over
137 million people in more than 70 countries are affected by arsenic poisoning
of drinking water.(4)The principal forms of arsenic in natural waters are arsenate
[As(V)] and arsenite [As(III)]. Arsenate exists as oxyanions (H2AsO4- or HAsO42-)
in a pH range of 2-12, while arsenite remains as neutral undissociated species
(H3AsO3) below a pH of 9.2.(5, 6) As(III) oxidation to As(V) by dissolved oxygen
alone is kinetically slow.(4, 7) Traditional remediation technologies rely largely
on adsorption for removing arsenic in water using materials such as iron oxides,
activated alumina, granular activated carbon, and silica with various degrees
of success.(9, 10) Recent studies suggest that nanoscale zerovalent iron (nZVI),
a highly reactive engineered nanomaterial extensively evaluated for groundwater
remediation and hazardous waste treatment, is effective for arsenic removal
in water, but the reaction mechanisms of arsenic on nZVI are not well understood.
Because of nZVI's strong reducing capabilities toward chlorinated hydrocarbons
and numerous inorganic contaminants, it is expected that both arsenic(V) and
arsenic(III) are amenable to reduction by nZVI. Prior publications indicate,
however, the transformation of As(V) to As(III) is kinetically slow, and no
clear evidence for the formation of elemental arsenic [As(0)] has been published
so far.(5, 11, 12) On the other hand, several recent studies suggest that, instead
of reduction, oxidation of arsenic(III) is the prevalent reaction under oxic
conditions through peroxide or radicals generated by Fenton reactions.(8, 13)
The majority of these studies rely on solution phase arsenic analysis, and there
is a lack of studies investigating arsenic speciation on nZVI surfaces that
can provide more direct evidence of the reactions between nZVI and arsenic.
The objective of this work was to examine surface reactions of arsenate and
arsenite with nZVI by using high-resolution X-ray photoelectron spectroscopy
(HR-XPS), which can provide valuable information about the valence states and
abundance of various arsenic species on nanoparticle surfaces. The results are
interpreted in light of the fundamental structure of nZVI, and the implications
of these findings on arsenic treatment and remediation are discussed.
Materials and Experimental Methods
The iron nanoparticles (nZVI) used in this study were prepared from sodium
borohydride reduction of ferric iron as reported previously.(14, 15) The nanoparticles
have a mean diameter of 60 nm and a BET-measured surface area of 30 m2/g.(14)
Reagent grade sodium arsenate or arsenite was used to make As(III) or As(V)
stock solutions. To eliminate dissolved O2 as a potential oxidant in these solutions
and to simulate prevalent anoxic conditions encountered in groundwater environments,
the arsenic solutions were purged with high-purity N2 for 30 min prior to adding
nZVI. HR-XPS analysis was performed on reacted nZVI residues using a Scienta
ESCA 300 X-ray photoelectron spectrometer. Detailed experimental procedures
and details concerning XPS analysis including spectral deconvolution are available
in the Supporting Information.
Conclusion
Simultaneous oxidation and reduction of As(III) and the reduction of As(V)
to As(III) and As(0) on nZVI surfaces have been observed. The elusive As(0)
species suggested in previous studies was clearly detected. The reactions can
be reasonably explained on the basis of the core-shell structure of nZVI, in
which the oxide outer layer and metallic core bestow distinctive mechanisms
for arsenic removal. The results shown here may help in the understanding of
the reaction mechanisms and the stability of arsenic on ZVI surfaces and lead
to better design of arsenic sequestration technologies. In particular, in view
of the conventional adsorptive methods, which are critically affected by arsenic
speciation, concentration, and pH, the multifaceted functionality of nZVI exhibited
here may offer a more robust and effective method for arsenic removal.
Click
here to read the entire article.
Source: American
Chemical Society
Posted August 5th, 2009
|
