Polishing metal surfaces is a demanding but monotonous task, and it is difficult
to find qualified young specialists. Polishing machines do not represent an
adequate alternative because they cannot get to difficult parts of the surface.
A new solution is provided by laser polishers.
Jobs are in short supply, and yet some sectors have difficulty in finding

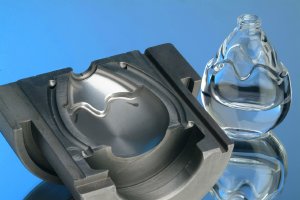

suitable trainees for specialist tasks, such as polishing injection molds. The
work is time-consuming and monotonous but requires highest levels of concentration,
because any blemish in the mold can render it useless. A skilled worker may
often need a whole week to polish a single metal mold. Up to now it has not
been possible to use machines for this dreary work because they cannot get into
the curved shapes.
Researchers at the Fraunhofer
Institute for Laser Technology ILT in Aachen have developed a way of automating
the polishing work: “We do not polish the surface by hand with grinding
and polishing media. Instead we use a laser,” explains Dr.-Ing. Edgar
Willenborg, group leader at the ILT. “The laser beam melts the surface
to a depth of about 50 to 100 micrometers. Surface tension ensures that the
liquid metal flows evenly and solidifies smoothly.” Like in conventional
grinding and polishing, the process is repeated with increasing degrees of fineness.
In the first stage the researchers melt the surface to a depth of about 100
micrometers, in further steps they gradually reduce the depth. “We can
set the melting depth by means of various parameters: the laser output, the
speed at which the laser beam travels along the surface and the length of the
laser pulses,” states Willenborg. Laser polishing does not achieve the
same surface smoothness as perfect hand polishing – hand polishers can
achieve a roughness Ra of 5 nanometers, the laser at present can only manage
50 nanometers – but Willenborg still sees considerable market potential
for the system. “We will concentrate on automating the medium grades:
a roughness of 50 nanometers is adequate for many applications, including the
molds used for making standard plastic parts.” The high-end levels of
smoothness will therefore remain the domain of skilled hand polishers.
The time gained by laser polishing and the cost saving achieved are enormous.
Whereas a skilled polisher needs about 10 to 30 minutes for each square centimeter,
the laser polishes the same area in about a minute. A prototype of the laser
polishing machine developed by the scientists in cooperation with mechanical
engineering firm Maschinenfabrik Arnold has already been built. Willenborg estimates
that the system will be ready for industrial use in one to two years’
time. At the Euromold trade show, to be held from December 2 to 5 in Frankfurt,
the researchers will be presenting examples of three-dimensional surfaces polished
by laser (Hall 8, Stand M114).
Posted November 2nd, 2009
|
