Defining the Most Critical New Technologies for Next Generation of Free Electron Lasers

Published on September 9, 2009 at 7:31 PM

The U.S. Department of Energy's Lawrence Berkeley National Laboratory and the SLAC National Accelerator Laboratory are collaborating to help define the most critical new technologies for the next generation of free electron lasers (FELs). In response to their joint proposal, DOE's Office of Basic Energy Sciences (BES) has made a $1.8 million grant to Berkeley Lab and a similar grant to SLAC, as part of a newly funded national program in detector and accelerator research and development.

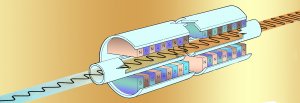

A free electron laser sends bunches of electrons through an undulator, a string of magnets arranged with alternating fields that push the electrons back and forth in phase with the wavelength of light they are emitting; the resulting intense beam of light is coherent and laser-like. (Credit Flavio Robles, Berkeley Lab Creative Services Office.)

Free electron lasers are revolutionary new light sources for scientific investigation. They have already demonstrated their strengths in facilities like the infrared FEL at DOE's Jefferson Lab in Virginia and Germany's FLASH, the Free Electron Laser in Hamburg, which produces “soft” (longer wavelength) x-rays. Other FELs have recently come online or soon will, including SLAC's LCLS, the Linac Coherent Light Source, which will reach into the hard x-ray domain.

For many kinds of science, including understanding rapid chemical reactions and complex materials on the scale of individual atoms and molecules, the preferred light sources of the future will be FELs that can produce tightly focused pulses of ultrabright soft x-rays at very high repetition rates.

“Our goal is to develop and clearly articulate the unique scientific applications for these new kinds of light sources, and to define what's needed to achieve them,” says John Corlett of Berkeley Lab's Accelerator and Fusion Research Division (AFRD), who is coordinating the research effort.

Electron coherency

Whenever an electron is accelerated – whether it's just bouncing around in an incandescent bulb's hot filament or being steered by magnetic fields – it radiates light. Free electron lasers emit superbright beams of x-ray light, first by accelerating bunches of electrons in a linear accelerator (linac), then by sending them through strings of alternating magnets called undulators; as the fast-moving bunches of electrons slalom back and forth, they emit photons in the direction of the beam. The back-and-forth motion is in phase with the wavelength of the light, so the light is coherent – like laser light – and quickly builds to high intensity.

Today's front-line x-ray FELs operate at repetition rates of ten to a hundred-plus electron bunches per second, a slow rate limited by electron-source technology and the fact that most FEL linacs operate in pulsed mode. At best, “warm” accelerators (as opposed to linacs whose superconducting accelerator cavities are refrigerated with liquid helium) may be able to accelerate discrete trains of bunches, each no longer than the accelerating pulse itself.

But the FELs of the future will operate with electron bunches at rates of a million or more equally spaced bunches per second, using superconducting linacs operating in continuous-wave mode. Key to this high repetition rate is the electron injector. Producing superbright, ultrafast x-rays starts with a high-quality electron beam – and producing a bright, high-quality beam begins with the injector.

“You can't improve the fundamental beam quality after the beam has been generated,” says Corlett. “After that it only gets worse. So the performance of the whole machine depends on the quality of the beam generated by the injector and source – the electron gun.”

The requirements are stiff – a million highly charged bunches of electrons per second of variable length leaving the injector at an energy of half a million electron volts or more – and forming such a tight beam that emittance (dispersal) is contained to within a micron (less than a few millionths of a meter-radian).

While many of these and other requirements can be met individually by existing technologies, none yet can meet all of them simultaneously. Berkeley Lab's Accelerator and Fusion Research Division, working with the Advanced Light Source (ALS) and Engineering Divisions, is working on an injector that can. With the aid of the BES grant, the Lab will complete and test a prototype of this most vital component of future FELs.

The electron gun

An electron gun can be as simple as a hot cathode from which free electrons are boiled off and accelerated in an electric field, like those found in the cathode ray tubes (CRTs) of old-fashioned TV sets or computer monitors. The accelerating field is produced by direct current (DC), but while DC guns have attractive features, they break down at high voltages.

Berkeley Lab's gun starts with a different technology, a photoemission cathode: instead of boiling electrons off the cathode with heat, the electrons are driven out by photons from a laser beam. The development of the photocathode is led by Howard Padmore, Experimental Systems Group Leader at the ALS. Its composition is crucial: the material must yield a high ratio of electrons to photons, with small emittance, and at the same time hold up under continuous use at hitherto unprecedented repetition rates – in high vacuum and a high accelerating field to boot. A variety of cathode materials will be tested for the new injector.

“We decided on a somewhat unusual approach to accelerate the electrons,” says Corlett, “and an idea from John Staples of the Center for Beam Physics in AFRD, that the gun's RF cavity operate at 200 megahertz” — 200 million cycles per second. In electrical terms this is “very high frequency,” VHF, but in fact the frequency is very low compared to most pulsed RF (radio frequency) accelerators; Germany's XFEL, now under construction, will operate with 1.3 gigahertz RF accelerating cavities (1.3 billion cycles per second), and SLAC's LCLS at 3 gigahertz.

The development of the Berkeley Lab accelerating cavity is led by Fernando Sannibale of AFRD's ALS Accelerator Physics Group. The copper cavity is approximately a meter in diameter; thus the power density on the large-area walls is low, the heat load is low, and the cavity is easy to cool with circulating water even when continuously powered. Despite its size, a ring of 24 separate vacuum pumps keeps the vacuum inside the accelerating cavity ultrahigh, at mere trillionths of atmospheric pressure.

Click here to read the full story
