Sunlight represents the cleanest, greenest and far and away most abundant
of all energy sources, and yet its potential remains woefully under-utilized.
High costs have been a major deterrant to the large-scale applications of silicon-based
solar cells.
Nanopillars – densely packed nanoscale arrays of optically active semiconductors
– have shown potential for providing a next generation of relatively cheap
and scalable solar cells, but have been hampered by efficiency issues. The nanopillar
story, however, has taken a new twist and the future for these materials now
looks brighter than ever.

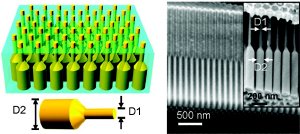

On the left a schematic of a germanium nanopillar array embedded in an alumina foil membrane; on the right are cross-sectional SEM images of a blank alumina membrane with dual-diameter pores; inset shows germanium nanopillars after growth. (Images courtesy of Ali Javey)
“By tuning the shape and geometry of highly ordered nanopillar arrays
of germanium or cadmium sulfide, we have been able to drastically enhance the
optical absorption properties of our nanopillars,” says Ali Javey, a chemist
who holds joint appointments with the Lawrence
Berkeley National Laboratory (Berkeley Lab) and the University of California
(UC) at Berkeley.
Javey, a faculty scientist with Berkeley Lab’s Materials Sciences Division
and a UC Berkeley professor of electrical engineering and computer science,
has been at the forefront of nanopillar research. He and his group were the
first to demonstrate a technique by which cadmium sulfide nanopillars can be
mass-produced in large-scale flexible modules. In this latest work, they were
able to produce nanopillars that absorb light as well or even better than commercial
thin-film solar cells, using far less semiconductor material and without the
need for anti-reflective coating.
“To enhance the broad-band optical absorption efficiency of our nanopillars
we used a novel dual-diameter structure that features a small (60 nanometers)
diameter tip with minimal reflectance to allow more light in, and a large (130
nanometers) diameter base for maximal absorbtion to enable more light to be
converted into electricity,” Javey says. “This dual-diameter structure
absorbed 99-percent of incident visible light, compared to the 85 percent absorbtion
by our earlier nanopillars, which had the same diameter along their entire length.”
Theoretical and experimental works have shown that 3-D arrays of semiconductor
nanopillars – with well-defined diameter, length and pitch – excel
at trapping light while using less than half the semiconductor material required
for thin-film solar cells made of compound semiconductors, such as cadmium telluride,
and about one-percent of the material used in solar cells made from bulk silicon.
But until the work of Javey and his research group, fabricating such nanopillars
was a complex and cumbersome procedure.
Javey and his colleagues fashioned their dual diameter nanopillars from molds
they made in 2.5 millimeter-thick alumina foil. A two-step anodization process
was used to create an array of one micrometer deep pores in the mold with dual
diameters – narrow at the top and broad at the bottom. Gold particles
were then deposited into the pores to catalyze the growth of the semiconductor
nanopillars.
“This process enables fine control over geometry and shape of the single-crystalline
nanopillar arrays, without the use of complex epitaxial and/or lithographic
processes,” Javey says. “At a height of only two microns, our nanopillar
arrays were able to absorb 99-percent of all photons ranging in wavelengths
between 300 to 900 nanometers, without having to rely on any anti-reflective
coatings.”
The germanium nanopillars can be tuned to absorb infrared photons for highly
sensitive detectors, and the cadmium sulfide/telluride nanopillars are ideal
for solar cells. The fabrication technique is so highly generic, Javey says,
it could be used with numerous other semiconductor materials as well for specific
applications. Recently, he and his group demonstrated that the cross-sectional
portion of the nanopillar arrays can also be tuned to assume specific shapes
– square, rectangle or circle – simply by changing the shape of
the template.
“This presents yet another degree of control in the optical absorption
properties of nanopillars,” Javey says.
Javey’s dual-diameter nanopillar research was partially funded through
the National Science Foundation’s Center of Integrated Nanomechanical
Systems (COINS) and through Berkeley Lab LDRD funds.
A paper describing this research appears on-line in the journal NANO Letters
under the title “Ordered Arrays of Dual-Diameter Nanopillars for Maximized
Optical Absorption.” Co-authoring the paper with Javey were Zhiyong Fan,
Rehan Kapadia, Paul Leu,Xiaobo Zhang, Yu-Lun Chueh, Kuniharu Takei, Kyoungsik
Yu, Arash Jamshidi, Asghar Rathore, Daniel Ruebusch and Ming Wu.
