New NPXY200-401 Nanopositioner from nPoint

Published on March 26, 2014 at 7:41 AM

The NPXY200-401 nanopositioning stage from nPoint is a piezo driven, flexure guided stage, designed for high speed and nanometer precision. The stage has a large aperture (68mm X 68mm) yet is very thin (17mm). With a position noise of 0.7nm the NPXY200-401 provides the accuracy necessary for today’s advanced applications. When paired with the LC.402 DSP controller, the system provides closed-loop capability via capacitive sensors.

The NPXY200-401 has travel of 200µm in both the X and Y axis and with the large aperture, creates a great deal of flexibility for incorporation in optics and nanotechnology systems. A resonant frequency of 500Hz allows for fast scanning and settling times less than 8ms.

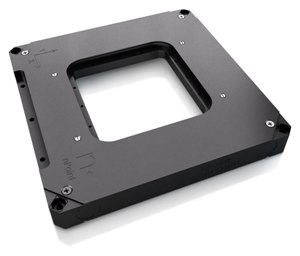

NPXY200-401 nanopositioner

As the latest addition to nPoint’s piezo stage offering, the NPXY200-401 can be used in a variety of areas including research, manufacturing, and as an OEM system component.

Application examples include: near-field scanning optical microscopy, scanning probe microscopy, optical microscopy, lithography, nanometer-scale manipulation, metrology, and optical fiber alignment.

Specifications for the NPXY200-401

About nPoint Inc.
nPoint focuses on developing solutions for high specification nanopositioning needs. Located in Middleton, WI nPoint is an industry leader in precision nanopositioning in the global market. nPoint’s piezo driven flexure stages, piezo drivers, and closed-loop DSP controllers are used in research, aerospace, semiconductor manufacturing, optics, and automotive industries.
