The UltraGenizer-30K – A High-Pressure Homogenizer for Large Flow Rate Requirements

The UltraGenizer is an ultra-high-pressure homogenizer and cell disruptor that is ideal for larger flow rate requirements. It has a maximum pressure of up to 60,000 psi.

The UltraGenizer single pump system is simple to operate and smart, including a diamond interaction chamber to disrupt the cell and reduce the particle size.

When it comes to the sample cooling unit, a 316 L stainless heat exchanger can be installed in the system to help users achieve real-time cooling on the samples.

In addition, the Genizer PLC touchscreen provides an easy-to-use user interface for operators, including access to the auto-stop setup (set time, cycle numbers, and pressure). All of the parts that come into contact with the medium are 316 L stainless steel, 17-4ph stainless steel, titanium alloy, tungsten carbide, PTFE, UHMWPE, or other corrosion resistance materials.

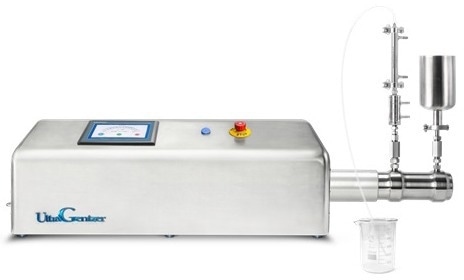

UltraGenizer, up to 60,000 psi.

UltraGenizer, up to 60,000 psi. Image Credit: Genizer LLC.

Main Features of the UltraGenizer-30K

  • Flow rate: ~12 L/hour (water value)
  • Pressure: 30,000 psi (2,068 bar)
  • Minimum sample volume: ~26 mL
  • Power requirement: 380 V, three-phase, 50/60 Hz
  • Weight: ~110 kg
  • Diamond Interaction Chamber (Electro-Polish and Passivation for pharmaceutical applications)
  • Application: Nanoemulsions, liposomes, fat emulsions, nanodispersion, cell disruption, deagglomeration

Enhanced Features

  • Cooling System: Heat exchanger, diamond interaction chamber designed with cooling ports
  • Control System: Digital pressure value, PLC touch screen, auto stop
  • One-year warranty period against all manufacturing defects
  • 316 L high-pressure piping and tubing
  • Spares and tools
  • RoHs and CE compliant
