The gold nanoparticles contained in the kit comprise a gold colloid with a carboxylic acid functionalized hydrocarbon capping agent. Packaged in distilled water. The patent-pending process used to manufacture the nanoparticles is different than the conventional citrate stabilized method and insures a uniform product with monodispersed size and shape and better surface reactivity.
![Typical TEM of gold nanoparticles.](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2018/5/ImageForArticle_4684(2).jpg)
Figure 1. Typical TEM of gold nanoparticles.
Properties of Spherical Gold Nanoparticles Kit (30-90 nm)
The physical and chemical properties of Spherical Gold Nanoparticles are outlined in the following:
Properties
|
Description
|
Color and Form
|
red liq.
|
Concentration
|
0.03mg//ml (±10%)
|
Storage Conditions
|
store at ~4°C (do not freeze)
|
Shelf Life
|
6 months
|
Catalog Number
|
96-1540
|
Note: Light does not degrade the nanoparticles.
Spherical Gold Nanoparticles Kit (30-90 nm)
Each Spherical Gold Nanoparticles Kit Contains 25ml of each of the following:
- 79-6040 Spherical Gold Nanoparticles (30nm)
- 79-6045 Spherical Gold Nanoparticles (50nm)
- 79-6050 Spherical Gold Nanoparticles (70nm)
- 79-6055 Spherical Gold Nanoparticles (90nm)

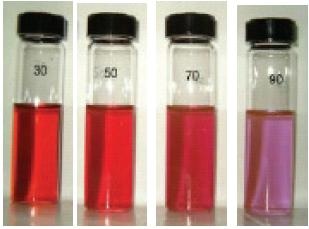

![Gold nanoparticles.](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2018/5/ImageForArticle_4684(3).jpg)
Figure 2. Gold nanoparticles.

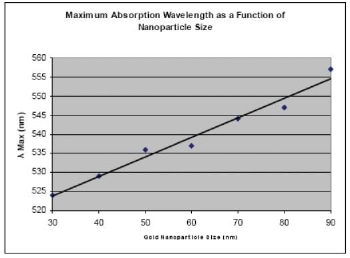

Spherical Gold Nanoparticles Size Distribution
The size distribution of the spherical gold nanoparticles are illustrated in the following graphs.
![size distribution of the spherical gold nanoparticles.](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2018/5/ImageForArticle_4684(4).jpg)
![size distribution of the spherical gold nanoparticles.](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2018/5/ImageForArticle_4684(5).jpg)
Figure 3. Size distribution of the spherical gold nanoparticles.
![](https://d1otjdv2bf0507.cloudfront.net/images/Article_Images/ImageForArticle_1338(1).png)
This information has been sourced, reviewed and adapted from materials provided by Strem Chemicals.
For more information on this source, please visit Strem Chemicals.
