Accurate and Precise Delivery with the IPS-12 Syringe Pump

IPS-series syringe pumps from Inovenso Technology offer precise and accurate delivery of the preferred amount of fluids. The pumps can be utilized in applications that necessitate smooth and non-pulsatile flow that is highly precise, for example, in electrospraying, electrospinning, organ/tissue perfusion, dispensing and microfluidic applications

Adjustment of flow rate can be done from the user-friendly touch screen panel even during the process.

IPS 12 is a programmable single-channel pump model that offers an extensive flow rate range (1,17 pL/minute–75,945 mL/minute), where the lowest flow rate can be achieved using a Hamilton 0.5 µL and the maximum value can be reached using the140 mL Monoject Syringe.

  • Easy-to-use interface
  • Includes 4.3″ Resistive Touch TFT LCD screen
  • Highly precise pumping
  • Microcontroller software
  • Flow rate can be adjusted even at the time of the process

Technical Specifications

Source: Inovenso


MODEL IPS12
MODE Infusion only
SYRINGES
Capacity 1
Type Glass, plastic, steel
Min Size Hamilton 0,5 µl (ID: 0,103 mm)
Max Size Monoject 140 ml (ID: 38 mm)
FLOW RATE
Min 1,17 pl/min (Hamilton 0,5 µl)
Max 75,945 ml/min (140 ml Monoject Syringe)
MOTOR TYPE Stepper Motor
MOTOR DRIVE CONTROLLER Microcontroller with Microstep Drive
STEP RESOLUTION (Travel/Microstep) 223,2 nm/µstep
STEP RATE
Min 10 sec/µstep
Max 200 µsec/µstep
LINEAR SPEED RATE (PUSHER TRAVEL RATE)
Min 1,34 µm/min
Max 66,96 mm/min
LINEAR FORCE 30 kg for each syringe
CONNECTORS Wi-fi (optional)
RECIPE SAVE-RECALL No
POWER SUPPLY 12 VDC 1 A (110-240 VAC adaptor included)
DIMENSIONS W:200 L:170 H:137 mm
WEIGHT 2.1 kg
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature Between -10 and 50 C
Storage Temperature Between -30 and 85 C
Operating Humidity RH 10% – RH 90% (not condensed)
Storage Humidity RH 10% – RH 90% (not condensed)

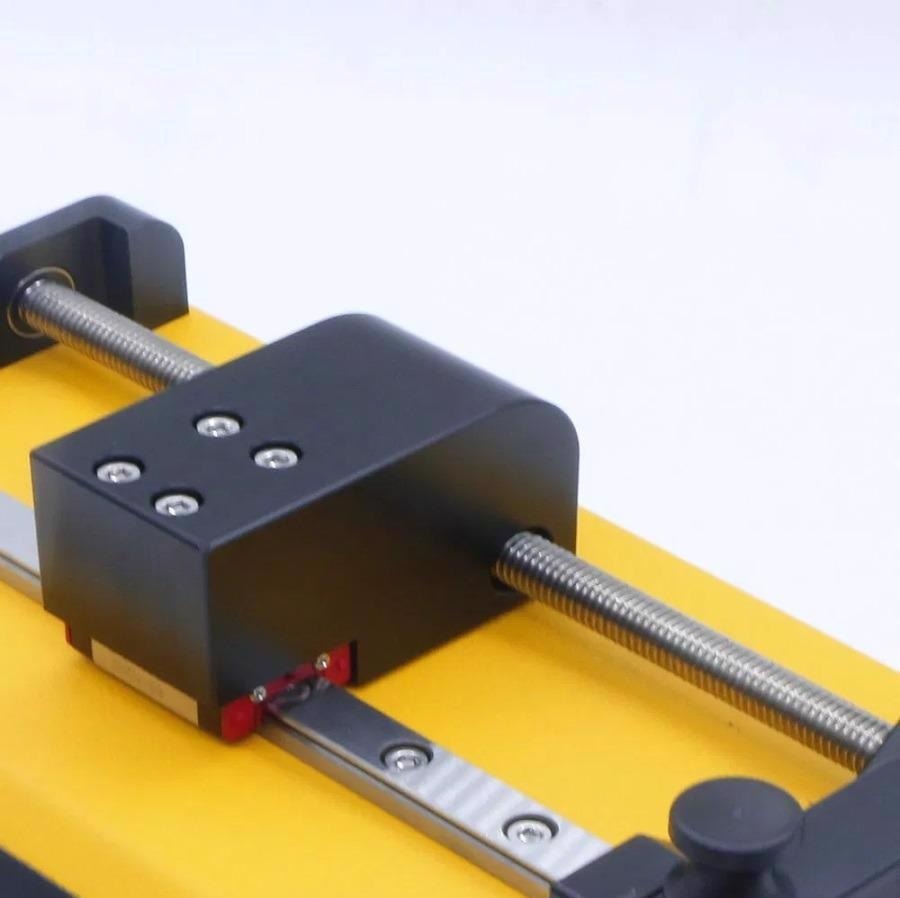

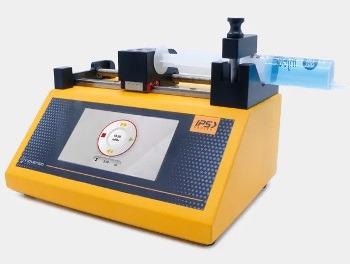

Accurate and Precise Delivery with the IPS-12 Syringe Pump

Image Credit: Inovenso

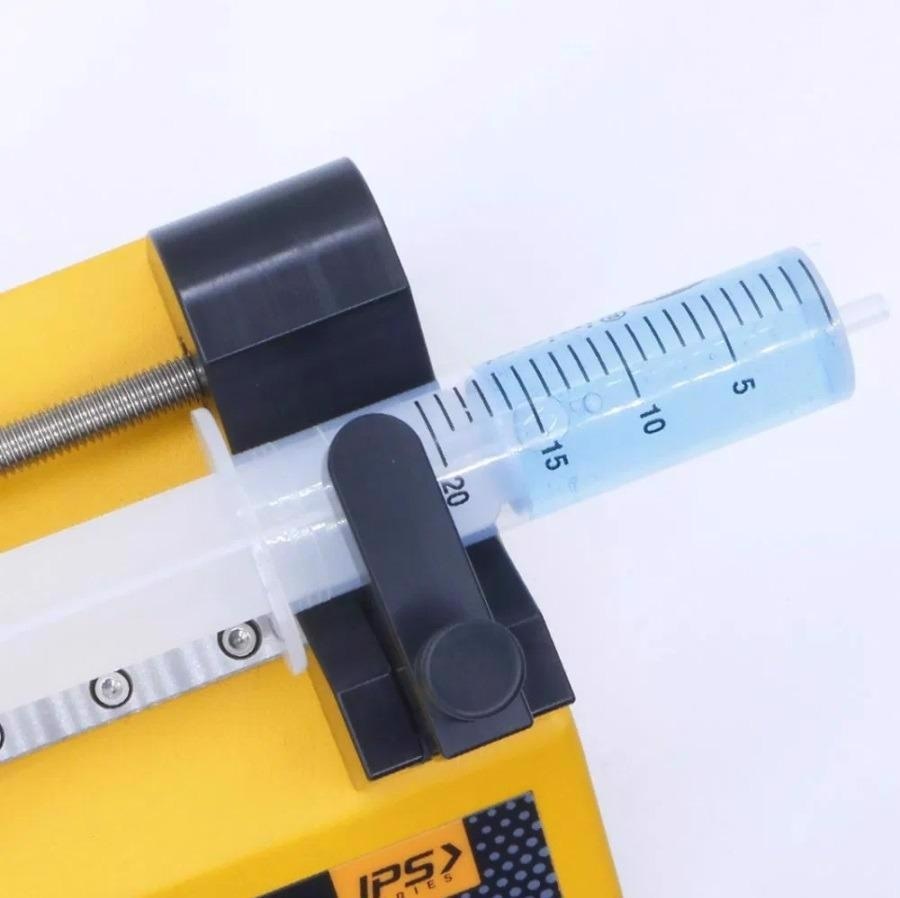

Accurate and Precise Delivery with the IPS-12 Syringe Pump

Image Credit: Inovenso
