IPS-14RS Syringe Pump: A Programmable Double Channel Pump

Inovenso Technology’s IPS-series syringe pumps to ensure precise and accurate delivery of the preferred amount of fluids. These pumps can be employed in applications where highly precise, smooth, and non-pulsatile flow is required, for example, in dispensing, electrospraying, organ/tissue perfusion, electrospinning, and microfluidic application.

It is viable to adjust the flow rate with the help of a user-friendly touch screen panel even when the process is ongoing.

The IPS 14-RS model is a programmable double-channel pump that offers an extensive flow rate range (1,17 pL/minute–75,945 mL/minute), where the lowest flow rate can be achieved using a Hamilton 0.5 µL and the maximum value can be achieved using a 140 mL Monoject Syringe.

The IPS 14-RS syringe pumps can hold two syringes of different sizes, where each syringe is held by its own clamp and thus can be adjusted individually (this enables using different flow rates for every syringe). This model helps save the previous parameters and recall them for additional operations in a simple manner. It also allows purging backward and forward (infusion and withdrawal).

  • Comes with the five-step operation mode
  • Saving and recalling up to five recipes simultaneously
  • Two independent channels available
  • Easy-to-use interface available
  • Highly precise pumping
  • Microcontroller software
  • Infusion/withdrawal (forward and backward)
  • Adjustable flow rate even during the process
  • 4.3″ Resistive Touch TFT LCD screen

Technical Specifications

Source: Inovenso


MODEL IPS14RS
MODE Infusion/withdrawal
SYRINGES
Capacity 2 Independent
Type Glass, plastic, steel
Min Size Hamilton 0,5 µl (ID: 0,103 mm)
Max Size Monoject 140 ml (ID: 38 mm)
FLOW RATE
Min 1,17 pl/min (Hamilton 0,5 µl)
Max 75,945 ml/min (140 ml Monoject Syringe)
MOTOR TYPE Stepper Motor
MOTOR DRIVE CONTROLLER Microcontroller with Microstep Drive
STEP RESOLUTION (Travel/Microstep) 223,2 nm/µstep
STEP RATE
Min 10 sec/µstep
Max 200 µsec/µstep
LINEAR SPEED RATE (PUSHER TRAVEL RATE)
Min 1,34 µm/min
Max 66,96 mm/min
LINEAR FORCE 30 kg for each syringe
CONNECTORS Wi-fi (optional)
RECIPE SAVE-RECALL Yes
POWER SUPPLY 12 VDC 1 A (110-240 VAC adaptor included)
DIMENSIONS W:211 L:257 H:137 mm
WEIGHT 3.6 kg
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature Between -10 and 50 C
Storage Temperature Between -30 and 85 C
Operating Humidity RH 10% – RH 90% (not condensed)
Storage Humidity RH 10% – RH 90% (not condensed)

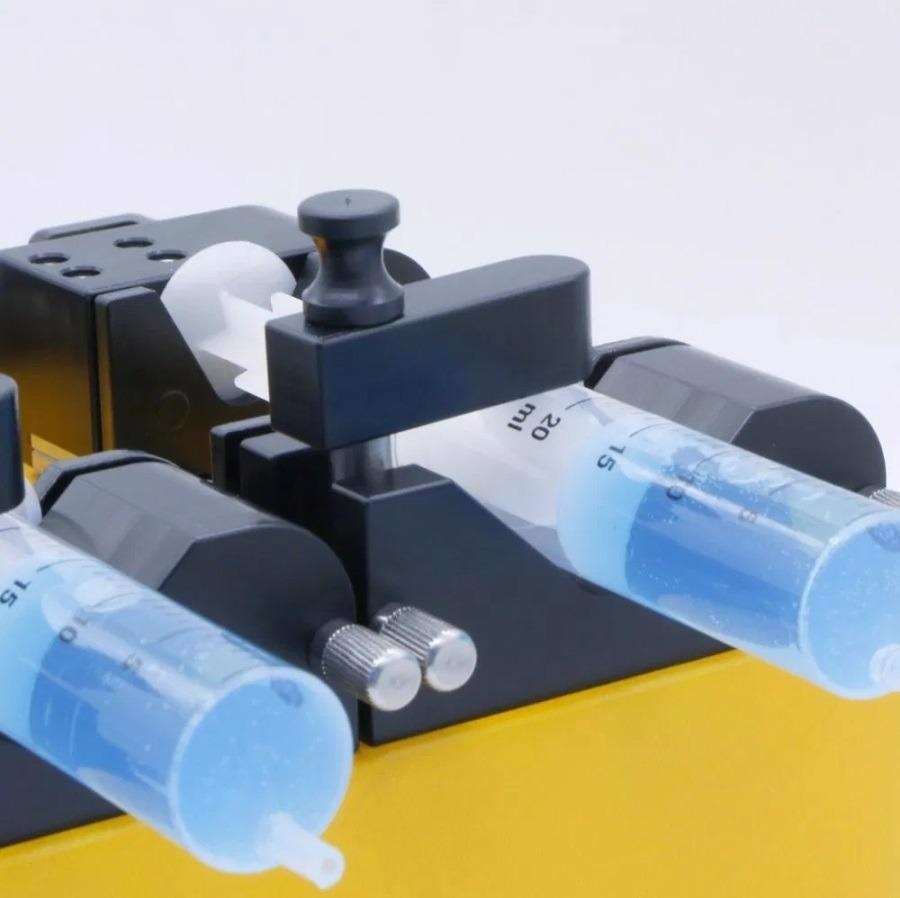

IPS-14RS Syringe Pump: A Programmable Double Channel Pump

  Image Credit: Inovenso

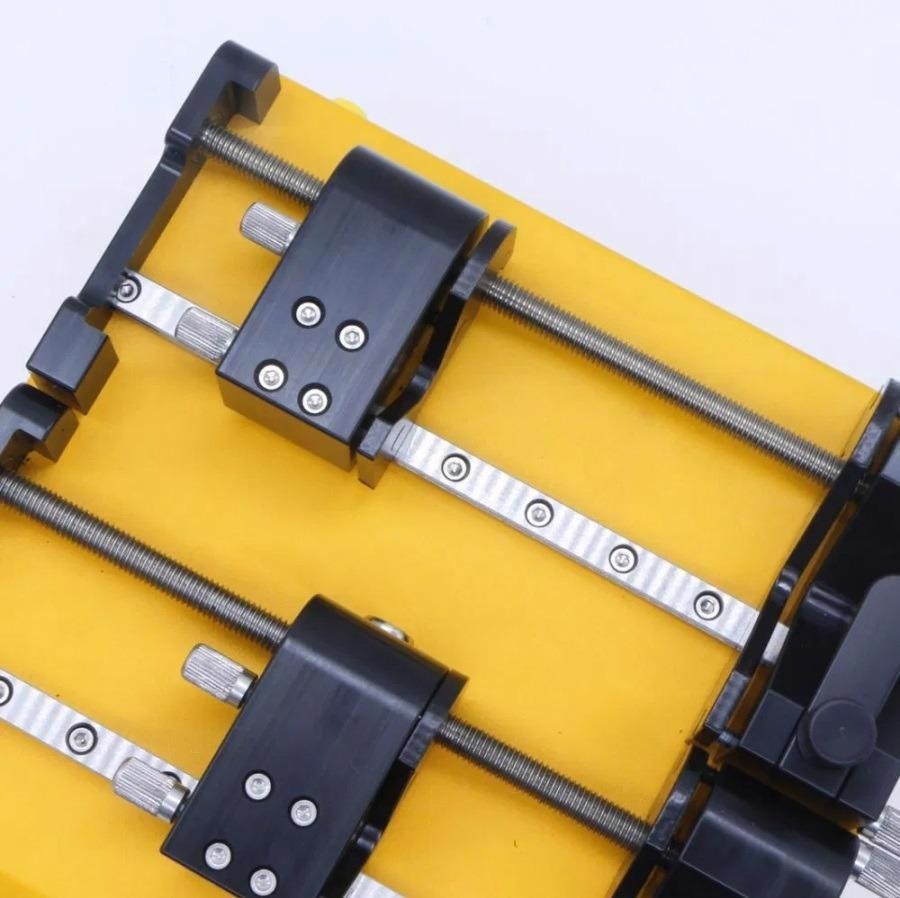

IPS-14RS Syringe Pump: A Programmable Double Channel Pump

  Image Credit: Inovenso
