EDAX Pattern Region of Interest Analysis System (PRIAS™)

The EDAX pattern region of interest analysis system (PRIAS) is an innovative imaging platform that leverages synergy to visualize microstructure and offer users new insights into selected materials. PRIAS enables swift material characterization without requiring extensive electron backscatter diffraction (EBSD) pattern indexing.

This imaging technique utilizes up to 25 positional electron detectors by innovatively harnessing the EBSD camera, providing substantial flexibility in image acquisition and presentation. PRIAS offers advantages not only for traditional EBSD materials like metals, ceramics, semiconductors, and minerals but also for novel analyses of plastics and glasses.

PRIAS imaging simultaneously detects multiple contrast mechanisms

  • Atomic number contrast
  • Topographical contrast
  • Orientation contrast

Three modes of operation

  • PRIAS Live: Utilizing 25 positional detectors, this dedicated mode offers rapid microstructural imaging.
  • PRIAS Collection: Real-time PRIAS data is captured alongside EBSD mapping data using three predefined detectors.
  • PRIAS Analysis: This mode involves an in-depth analysis of the EBSD pattern intensity distribution, establishing a direct connection to crystallographic orientation and phase information. It provides enhanced control over detector positioning during analysis.

Advanced Image Processing Capabilities

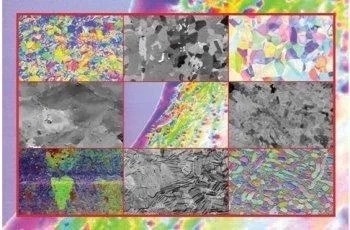

PRIAS includes a robust toolkit for processing, coloring, and extracting valuable information from the images provided by the various positional detectors

  • The 25 positional detectors enable the selection of orientation and topographic contrast images. A weighted subtraction method can be employed to generate processed images highlighting phase contrasts.
  • Any of the 25 positional detectors can be utilized to generate grayscale and color images. Background processing is applicable in both static and dynamic modes.
  • The disparity in PRIAS detector signals can be calculated and presented as grayscale or colored images. This facilitates the effortless identification of grain boundaries and microstructures, along with providing estimates of grain size.

PRIAS and transmission-EBSD

Transmission-EBSD (t-EBSD) is also compatible with PRIAS and can give extra levels of information from electron transparent samples.

PRIAS provides new insight into user materials

PRIAS gives users tremendous flexibility when it comes to imaging microstructures. PRIAS allows intriguing new perspectives into today’s materials research by integrating up to 25 positional detectors with customizable image viewing and analysis.
