Jul 1 2014
Physicists from Umeå University and Humboldt University in Berlin have solved a mystery that has puzzled scientists for half a century. They show with the help of powerful microscopes that the distance between graphite oxide layers gradually increases when water molecules are added. That is because the surface of graphite oxide is not flat, but varies in thickness with "hills" and "valleys" of nanosize. The new findings are published in the scientific journal Nano Letters.

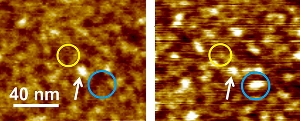

Scanning force microscopy images, which show the relief of a graphene oxide flake. Bright areas are "hills" and dark areas are "valleys". The left image was recorded at low relative humidity, one can say on a dry surface. The right image was recorded at high relative humidity, 65 percent. One can see that new bright spots appear in some regions, which are due to the insertion of water. The overall relief becomes less flat and more curved with more hills while valleys are preserved.
"Now we can better understand the mechanisms of solvent insertion between layers of graphene oxide. It increases our knowledge of the ultrathin membranes and helps to design new types of membranes with permeation properties that can be finely adjusted by adding water and various other solvents,"says Alexandr Talyzin, researcher at the Department of Physics at Umeå University.
Graphite oxide is a unique and useful material, with many unusual properties. It can easily dissolve in water and form single atomic layers of graphene oxide sheets. The super thin flakes can then be arranged in a multilayer membrane with the unique ability to incorporate various solvents between the layers.
Already in the 60's such membranes were tested for seawater desalination and filtration applications. Recent studies show that the graphene oxide membranes may also be used to separate liquids and gases. Thin graphene oxide films can separate binary gas mixtures with fairly high efficiency. Even more interesting, the separation characteristics can be finely adjusted by water vapors.
Water molecules easily penetrate between the graphene oxide layers and it has long been known that the distance between the graphene oxide layers depends on the humidity. By simple logic, it means that the distance between the layers is to change in steps corresponding to the size of the water molecules. What has puzzled scientists for half a century is that the distance between the layers, as measured by diffraction methods, is gradually changing proportionally to the humidity change.
"Obviously, we cannot put in quarter molecules or half molecules. So why do we see continuous changes in the distance between the graphene oxide layers? We decided to study the layers of graphene oxide with modern microscopic methods, which strangely enough had not been done before", says Alexandr Talyzin.
So far the puzzle had been explained with a phenomenon called interstratification - a random stacking of layers with different number of water layers - and what is measured by diffraction data has been an average value related to the different proportions between the number of layers having different degrees of hydration.
The new study conducted by physicists from Humboldt University in Berlin together with Alexandr Talyzin´s research team at Umeå University provides a different explanation. With microscopy of very high resolution, Scanning Force Microscopy, the researchers could measure the absolute distance between two graphene oxide layer and record changes as a function of humidity.
"The distance between two single graphene oxide layers obviously changed gradually again, but the explanation for this effect was revealed as nanometer-sized areas that were not equally filled with water. Of course, the effect of interstratification was excluded in our experiments because we only studied two layers and a single distance", says Alexandr Talyzin.
The results indicate that picturing graphene oxide as a flat plane is not correct. It is, rather, a relatively thick layer (about two times the thickness of graphene) with a variation of thickness, including "hills" and "valleys" of different size. Adding water molecules increases the thickness of this layer locally, but not necessary by the exact size of the water molecule if some "valleys" are filled first. When all available water adsorption sites ("valleys") are filled, an additional water layer is added at once. This happens at very high humidity or in liquid water.
