An Introduction to ElectroSpinning and NanoFibers

Table of Contents

Electrospinning Process
Electrospinning Process Parameters
     Solution Parameters
     Process Parameters
     Ambient Parameters
Applications of Electrospinning
Electrospun Fibrous Membranes as Separators of Lithium-Ion Batteries
Statistics of Nanofibers
Advantages of Nanofibers
Production of Nanofibers

Electrospinning Process

Electrospinning is a process that involves the following:

  • An inherently complex, multi-component material such as the polymer solution
  • A fluidic and electrical equipment often including needles, syringes, and motorized elements for careful control of flow rates and generators providing high voltages
  • The environment external to the process, which may range from air atmosphere to closed chambers operating with controlled gases or in stabilized temperature, vacuum conditions, etc.

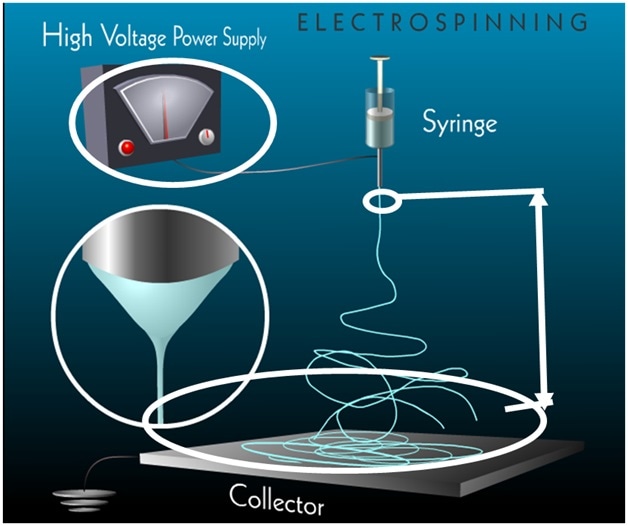

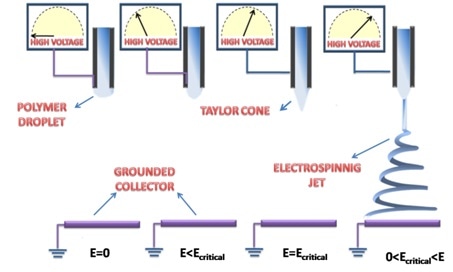

An automatic syringe pump is used to pump the fluid through a syringe. A voltage is supplied (using several kV potential) to positively charge the syringe needle. As shown in the below images, the resulting electric field causes fibers to be pulled out of the droplet at the end of the syringe tip and onto a grounded metal collector.

ElectroSpinning

ElectroSpinning

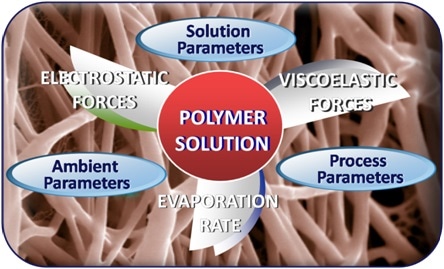

Electrospinning Process Parameters

Solution Parameters

Solution parameters for the electrospinning process include solvent, solution temperature, additives, viscosity, concentration, surface tension, and molecular weight.

ElectroSpinning

Process Parameters

Process parameters of the electrospinning process include flow rate, polarity, spinneret geometry, needle to collector distance, and applied voltage.

ElectroSpinning

Ambient Parameters

Ambient parameters include humidity and temperature.

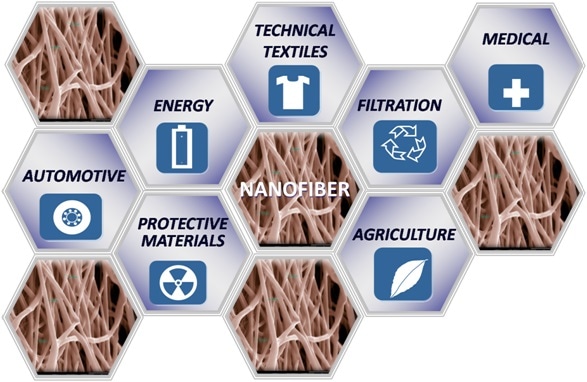

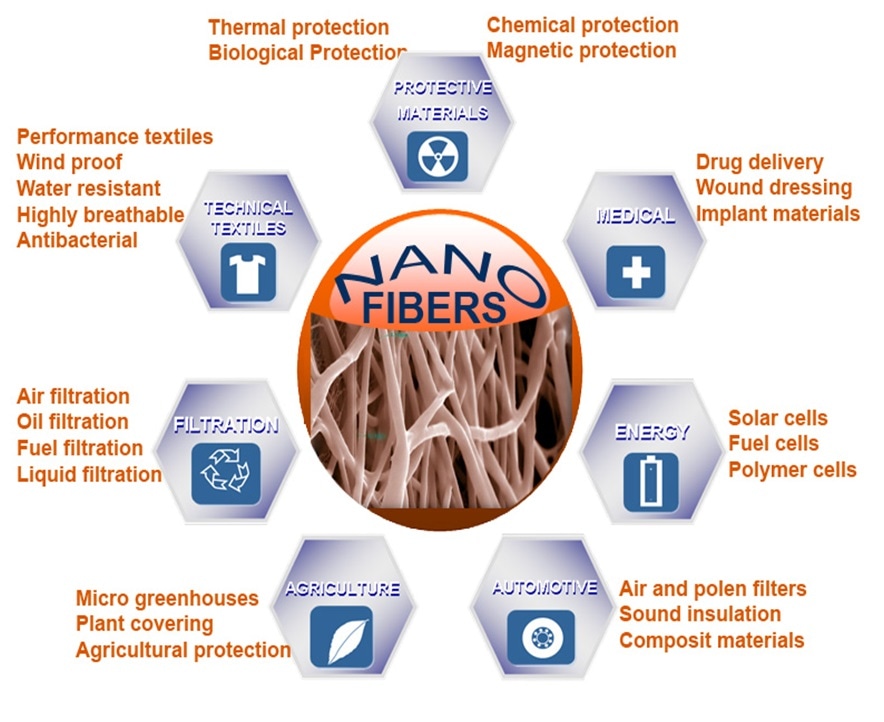

Applications of Electrospinning

ElectroSpinning

ElectroSpinning

ElectroSpinning

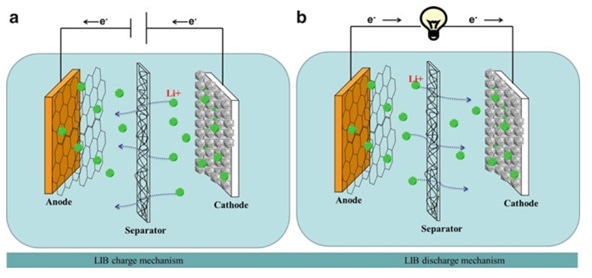

Electrospun Fibrous Membranes as Separators of Lithium-Ion Batteries

ElectroSpinning

Electrospinning is an effective technology for the production of fibrous membrane with fiber diameter of several naonmeters to several micrometers. The electrospun fibrous membranes have advantages of high porosity, which, results in low cell resistance and high ionic conductivity. Consequently, the performance of electrospun fibrous membranes is better than the traditional microporous polyolefin membranes.

Statistics of Nanofibers

Nanofibers not only have many potential technical advantages but they are also easy and not expensive to produce. Due to these advantages, they have been the subject of intense research, particularly in the last two decades and have drawn the attention of many researchers from various fields.

ElectroSpinning

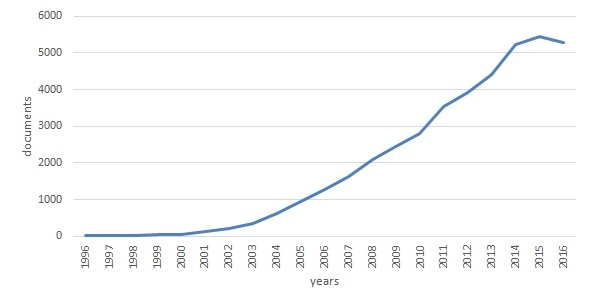

Documents published between 1996-2016 with “electrospinning or nanofibers” in “Title, Abstract, Keyword” parts in Scopus Database

ElectroSpinning

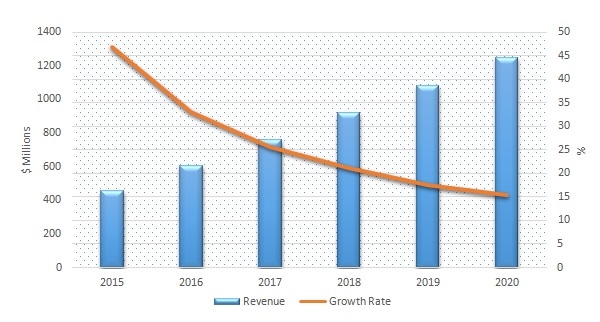

Global Nanoffiber Market 2015-2020, Technavio

The global nanofiber market was valued at $455 million in 2015 and is expected to grow at a CAGR of 24.12% to reach 1.2 billion by 2020

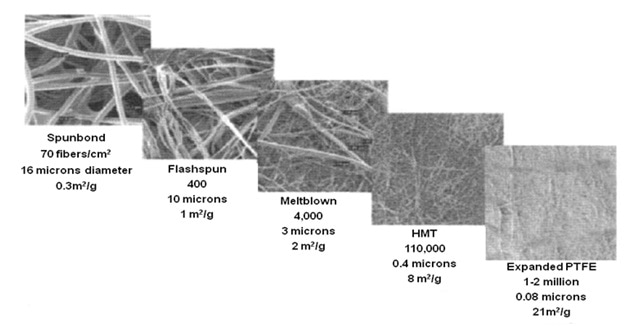

Advantages of Nanofibers

The following are the advantages of nanofibers:

  • High porosity (ca. 90%)
  • High surface area (1 - 100 m2/g)
  • Small diameters (10 nm - 10 mm)
  • Small fiber-to-fiber distance

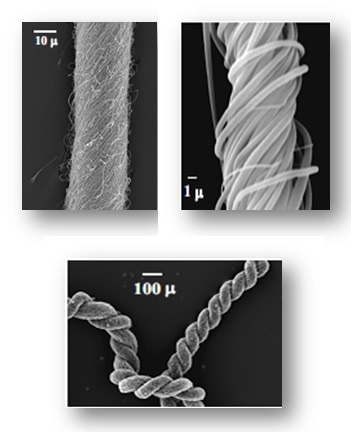

ElectroSpinning

A nano mat is a breathable fabric, but its small size does not allow even bacteria to enter. These properties make nanofibers a potential candidate in a wide range of field applications like semiconductors, catalysts, filtration, fuel cells, scanning probe microscopy, optical waveguides, tissue repair, composites, and sensors in industries such as instrumentation, sensors, aerospace, automotive, energy, electronics, mechanical, and chemical.

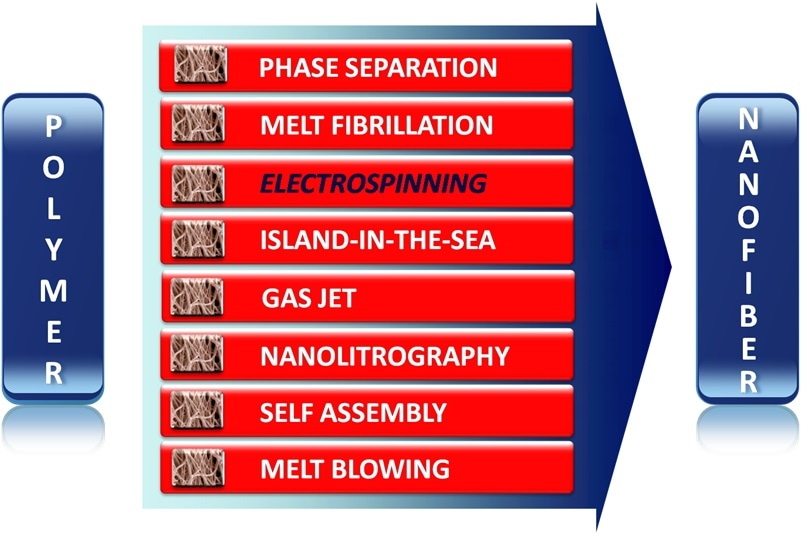

Production of Nanofibers

ElectroSpinning

ElectroSpinning

This information has been sourced, reviewed and adapted from materials provided by Inovenso.

For more information on this source, please visit Inovenso.
