IEM 10
- Magnification up to x 100,000
- Click and move stage control
- Auto stage : X, Y, T axis
- High definition image : 5120 X 3840 pixel
- Auto function : Filament memory, contrast, focus, brightness
Specifications
The specifications of the IEM 10 are as follows:
- Magnification: x20 ~ x100,000 (Efficient: ~x50,000)
- Acc voltage: 1 ~ 30 kV (1kV increments)
- Electron gun: Tungsten filament (W)
- Detector: SE Detector
- Stage: Auto stage (X: 35 mm,Y: 35 mm,T: 0 to 45°) Manual stage (Z: 5 to 50 mm)
- Image shift: X, Y, R (Rotation)
- Operating system: Microsoft Windows 7
- Dimensions: 400(W) x 600(L) x 550(H) mm
- Weight: 85 Kg
Stage Position
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-p1.jpg)
Users can easily locate the sample on the stage
Auto Focus and Fine Focus
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-p2.jpg)
Auto focus function makes the operation easier and clearer images can be acquired even at the higher magnifications
Click and Move
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-p3.jpg)
By applying the auto stage, stage is controlled just with a mouse click
Filament Memory:
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-p4.jpg)
Filament’s saturation point is automatically stored and activated
IEM 10+
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1a-1.jpg)
- Magnification up to x 100,000
- Auto stage: X, Y, T axis
- Click and Move Stage Control
- Auto function: Filament memory, focus, contrast, brightness
- High definition image: 5120 X 3840 pixel
- Thermo EDS Detector: 133 eV at Mn, B(5) ~ U(92)
Specifications
The specifications of the IEM 10+ are as follows:
- Magnification: x20 ~ x100,000 (Efficient: ~x50,000)
- Acc voltage: 1 ~ 30 kV (1kV increments)
- Electron gun: Tungsten Filament (W)
- Detectors: SE and EDS Detectors
- Stage: Auto Stage (X: 35 mm,Y: 35 mm,T: 0 to 45°) Manual Stage (Z: 5 to 50 mm)
- Image Shift: X, Y, R (Rotation)
- Operating system: Microsoft Windows 7
- Dimensions: 400(W) x 600(L) x 550(H) mm
- Weight: 95 Kg
Rapid EDS Analysis
Point and shoot analysis with NORAN System 7 software uses standardless quantitative analysis to enable fast identification of various regions within a material.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1b-1.jpg)
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1c-1.jpg)
EDS Analysis with NORAN System 7 Spectral Imaging
The UltraDry Compact EDS detector offers excellent elemental mapping within a few minutes. With Spectral Imaging, where a comprehensive EDS spectrum is stored at every pixel, samples can be analyzed after they have been removed from the microscope. NORAN System 7 tools provide several analytical methods for the best results.
Elemental Mapping
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1d.jpg)
Extracted Linescans
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1e.jpg)

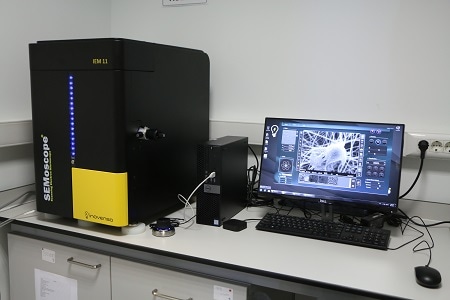

IEM 11
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1f.jpg)
- High quality images (5 nm resolution)
- Easy navigation with the “Navigation Mode”
- Magnification up to 150,000x
- Precise control with a joystick and the “Driving Mode”
- Combined SE and BSE Images
- Intuitive user interface
- Low energy consumption
Specifications
The specifications of the IEM 11 are as follows:
- Magnification: x20 ~ x100,000 (Efficient: ~x80,000)
- Acc voltage: 1 ~ 30 kV (1kV increments)
- Detectors: SE and BSE detectors
- Electron gun: Tungsten filament (W)
- Stage: Auto stage (X: 35 mm,Y: 35 mm,T: 0 to 45o) Manual stage (Z: 5 to 50 mm)
- Operating system: Microsoft Windows 7
- Image shift: X, Y, R (Rotation)
- Dimensions: 400(W) x 600(L) x 550(H) mm
- Weight: 85 Kg
Removable BSE Detector
By employing a four-channel BSE detector, composition and topography functions are available. These operations are optional and can be opted out.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1g.jpg)
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1h.jpg)
Low Voltage Analysis
Information on the morphology of a sample can be acquired with voltage ranging from 1 to 30kV.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1i.jpg)
Driving Mode
Two-axes stage motion, magnification and focus can be easily motorized and controlled with a joystick.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1j.jpg)
Combined Signaling
BSE and SE can be detected seperately and together.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1k.jpg)
Highest Resolution
Provides superior quality images. (5 nm resolution, maximum accelerating voltage: 30kV)
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1l.jpg)
Navigation Mode
By loading seven samples simultaneously into a multiholder, samples can be easily located with the help of sample area, a mini map and a live display.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1m.jpg)
IEM 11+
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1n.jpg)
- High quality images (5 nm resolution)
- Easy navigation with the “Navigation Mode”
- Magnification up to 150,000x
- Combined SE and BSE images
- Precise control with a joystick and the “Driving Mode”
- Low energy consumption
- Intuitive user interface
- Oxford:130eV at Mnk, C(6) ~ U(92) / EDAX:133eV at Mnk,
- Be(4) ~ U(92)
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1o.jpg)
Specifications
The specifications of the IEM 11+ are as follows:
- Magnification: x20 ~ x150,000 (Efficient: ~x80,000)
- Acc voltage: 1 ~ 30kV (1kV increments)
- Electron gun: Tungsten filament (W)
- Detectors: SE and BSE detectors
- EDS: Oxford:130eV at Mnk, C(6) ~ U(92) EDAX:133eV at Mnk, Be(4) ~ U(92)
- Stage: Auto stage (X: 35 mm, Y: 35 mm, T: 0 to 45o) Manual stage (Z: 5 to 50 mm)
- Image shift: X, Y, R(Rotation)
- Operating system: Microsoft Windows 7
- Dimension: 400(W) X 600(L) X 550(H) mm
- Weight: 95 kg
EDS
Brand : Oxford
- Multilingual operation
- Tru-Q Analysis Engine: Accurate result by Multi Algorithm
- Quick and easy analysis with flow chart style menu
- Diverse element analysis functions: Point & ID, line scan, mapping, line overlap and background correction
- Quantitative mapping (QuantLineScan, QuantMap)
Brand : EDAX
- Maximum performance SDD
- Sensor size: 30 mm2
- High quality light element analysis: Be(4) ~ Am(95)
- Diverse element analysis functions: Point & ID Line Scan, mapping
Oxford
- Report and data save -Various report templates are provided. Users can generate a report with the Report Generate function. Data can be saved, copied, printed and e-mailed directly.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1p.jpg)
- Available in various languages - The program is offered in a variety of languages including English, Japanese, Russian, Chinese simplified, Korean, French and Portuguese
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1q.jpg)
- LineScan - Linescan establishes elemental concentration variations along a line fixed by the users. Linescans are corrected for peak overlaps and any false variations due to X-ray background.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1r-1.jpg)
- Point & ID - Spectrum that shows elemental composition can be acquired from multiple points and areas.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1s.jpg)
EDAX
- Outstanding Light Element Performance - Silicon nitride window enhances performance for light elements at low energies.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1t.jpg)
- EDS Reporting - The TEAMTM EDS Smart Data Management system for SEM achieves new levels of ease and flexibility with simplified file management and dynamic reporting.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1u.jpg)
- Fast, Efficient Results for Industrial Needs - All results can be reviewed anytime. Spectrum, microelement detection and quantitative mapping are construed accurately.
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1v-1.jpg)
Ion Coater
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1w.jpg)
- Compact rotary pump
- Simple operation
- Suitable for Metal Targets (Au,Pt,Pd,Cr,Pt-Pd,Cu,Ni)
Target |
Au (Standard) |
Target Size |
50 mm[Dia] |
Power |
AC110-240V, 50 / 60Hz, 50W (Except Rotary Pump) |
Ionization Current |
0~9mA |
Chamber Size |
100 mm[Dia] |
Dimension |
420(W) x 220(D) x 230(H) mm |
Cool Stage
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1x.jpg)
- Suitable for liquid or biological samples
- Temperature resolution: ±0.1 °C
- Cool stage temperature: -25 °C to 5 °C
- Temperature accuracy: ±1 °C
- Vacuum feed through flange
- Specimen holder size: 18 mm [Dia]
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1y.jpg)
Low Vacuum System
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1z.jpg)
- BSE required
- Coating not required
- Suitable for non-conductive samples
- Vacuum condition: 100 pa to 1 pa
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-1.jpg)
BSE Detector
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-2.jpg)
- Four-channel solid state type: Four segment silicon PIN diode
- Combined SE and BSE images
- Excellent composition and topography functions
- Synergistic use of BSE Detector and LV mode
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-3.jpg)
Applications
Automotive
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-4.jpg)
Semiconductor
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-5.jpg)
Chemical
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-6.jpg)
Materials
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-7.jpg)
Bioengineering
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-8.jpg)
Construction
![](https://d1otjdv2bf0507.cloudfront.net/image-handler/picture/2017/6/PPP-1-9.jpg)
