It has a beautiful, but also an unpleasant side: crystallization determines the shape of precious stones, but also causes the lime scale in washing machines. How this comes about, has been known for a long time - or has it? Scientists at the Max Planck Institute of Colloids and Interfaces are now whittling away at the established theory, which is unable to explain numerous phenomena. The researchers investigated the crystallization of calcium carbonate, known commonly as chalk, and found that stable nanoclusters form in water with a small quantity of dissolved calcium carbonate - not how it was assumed to happen in the past. The lime scale deposits that will eventually bring a washing machine to a standstill are created from these tiny chalk particles. Previously, it was also an unknown fact that the structure of crystallized calcium carbonate depends on the alkalinity of the solution. These new findings might provide help in coping with the lime scale in washing machines, as well as help to explain the sophisticated structure of biominerals - and to better understand the role of the oceans as carbon dioxide sinks. (Science, December 19, 2008)
Calcium carbonate is ubiquitous: everyone has probably held a stick of blackboard chalk in the hand at one time or another, or railed against the deposits it forms in washing machines. It is the main constituent of marble, dolomite and many types of sediment, and it is also found in the shells of crabs, mussels, snails, sea urchins and in single-celled organisms. These biomaterials have properties that make them interesting for applications in medicine and building materials technology. The ingenious structure of their crystals at nanoscopic level makes them particularly robust. Materials scientists would like to know how organisms produce these structures, so that they can copy them.

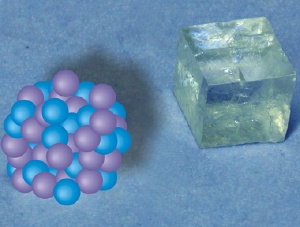

Researchers at the Max Planck Institute in Golm near Potsdam have now made a contribution to achieving this aim by demonstrating that calcium carbonate crystals are created differently from the way they were previously thought to form. When calcium and carbonate ions come together in a solution, they form stable nanoclusters consisting of around 70 calcium and carbonate ions - and they do that even in very soft water, a dilute solution from which chalk does not normally precipitate. If the concentration of dissolved calcium carbonate is increased, the clusters clump together and the mineral crystallizes.
Order at an early stage
"It seems that it is already decided when the clusters form, which of the three anhydrous crystal structures calcium carbonate will assume," says Helmut Cölfen who headed the study. "We also observed that the crystal structure depends on the pH level." The pH level indicates the acidity or alkalinity of a solution. Under low alkaline conditions, calcium carbonate forms calcite, its most stable crystalline structure. In a more alkaline environment, it creates vaterite, a non-stable crystalline structure.
"Our results suggest that the pH level influences the way the ions group together in these clusters, which are just two nanometers in size," explains Denis Gebauer, who played a crucial part in the study. At this stage, they do not form a regular crystal structure, but it is highly likely that the rudimentary arrangement of the crystal is already recognizable. If the clusters then group together into increasingly larger aggregates, this arrangement can remain in place. A transient amorphous form, that is, a non-crystalline solid, is initially created, which then changes into a crystal.
Easier for organisms to intervene
If crystallization really did take this route, it would be easier to understand how mussels, for example, construct their shells or a sea urchin forms its spines. As the tiny clusters with which crystallization starts are stable, organisms would have to intervene only at this early stage to influence the structure. They might use the pH level or biomolecules to do this.
The theory of crystallization that has prevailed so far leaves little room for influencing the arrangement of the ions in the regular crystal lattice early on. It assumes that the ions do not group together until a certain concentration has been exceeded. If these clusters do not reach a minimum size, they break apart. It is only when they can get beyond the size of the "critical crystal nucleus" that it becomes possible for the nucleus to grow into a crystal. The earliest point at which the crystal structure could be influenced would therefore be the critical nucleus.
The researchers in Golm used calcium phosphate and calcium oxalate to test whether other minerals also follow this crystallization pathway. Calcium phosphate is the main constituent of bones and teeth; kidney stones are predominately made up of calcium oxalate. The scientists subjected these materials to the same test as calcium carbonate. Drop by drop they added a solution containing calcium ions to a solution with the other component - that is, carbonate, phosphate or oxalate ions. With a special electrode they measured how many of the added calcium ions were present in the solution. It turned out that also in the experiments with calcium phosphate and calcium oxalate, there were fewer ions available than the researchers had added - they must therefore have been fixed into clusters, as was the case with the calcium carbonate.
Denis Gebauer, Antje Völkel, Helmut Cölfen "Stable Prenucleation Calcium Carbonate Clusters"
