Carbon Nanotube Properties, Elicarb MW (AQ) Multi-Wall Carbon Nanotubes From Thomas Swan

Sponsored by Thomas Swan & Co LtdJul 25 2007

Topics Covered

The Thomas Swan carbon nanomaterials business is dedicated to manufacturing commercial quantities of high purity single and multi-wall carbon nanotubes under the Elicarb™ trademark.

CVD grown multi-wall carbon nanotubes delivered as aqueous wet-cake

Product Ref: P936

C.A.S Number: 7782-42-5

EC Number: 231-955-3

Average diameter: 10 - 12 nm

Average Length: Microns

Purity: 70% - 90% multi-wall nanotubes

Figure 1. Low, medium and high magnification SEM images of carbon nanotubes

Figure 2. Low, medium and high magnification TEM images of carbon nanotubes

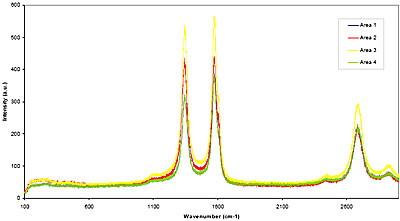

Figure 3. Raman Spectra of different areas of Sample K1727 CNTs
