Vision64 Map Software for Improved Metrology and Reporting

A comprehensive extension to Bruker’s Vision64® instrument control and analysis software, the Vision64 Map™ data analysis and reporting software is based on Digital Surf’s industry-leading Mountains® Technology.

The Vision64 Map produces  3D surface visualization and analytical data with more detail, using Bruker 3D optical microscope systems. Customers are provided with a total metrology workflow, ranging from automated data acquisition and modern data analysis to powerful data visualization and reporting.

The key advantages for Bruker 3D optical microscopes are:

  • Data can be presented with stunning 3D visualization
  • Surfaces can be characterized in accordance with advanced global metrology standards
  • Data reporting can be automated in 11 different languages
  • Specific application needs can be met using customized, feature-rich modules

The Vision64 Map provides users access to modern, highly customizable functions. It is smart and easy to use for production monitoring on manufacturing floors. The software also allows characterization of surfaces based on advanced metrology standards such as ISO, ASME B46.1, DIN, and JIS. The Vision64 Map facilitates streamlined access to automated reporting of modern surface measurements in 11 languages, while ensuring compatibility across a number of industry standards.

There are a number of optional modules for Vision64 Map, which will enable customers to easily customize their analysis. The various Vision64 Map 2D advanced surface texture modules are as follows:

  • Vision64 Map 2D Advanced Surface Texture Module
  • Vision64 Map Advanced Contour Module
  • Vision64 Map 2D Automotive Module
  • Vision64 Map 3D Advanced Surface Texture Module
  • Vision64 Map Statistics Module
  • Vision64 Map 3D Fourier and Wavelets Module

Key Features

The main features of the Vision64 Map are given below:

  • Better metrology analysis and reporting

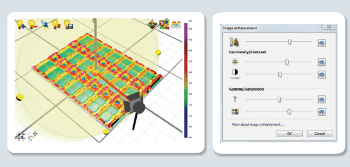

  • Multiple image enhancement tools with control panel
  • ISO 25178 Watershed segmentation with motifs analysis
  • Comprehensive data segmentation and analysis
  • Modern 3D surface visualization
  • Users can characterize surface texture in accordance with international standards
  • Example report of volume parameters and surface texture


The main areas of applications of the Vision64 Mapare:

  • Industrial: Precision surface machining; and corrosion and wear
  • Research: New materials characterization; and new process evaluation
  • Medical Implants and Devices: Defect inspection; and surface texture
  • Semiconductor: Advanced IC packaging; and surface topography
  • MEMS: Sensors and actuators; and radio frequency (RF) and microfluidics devices
