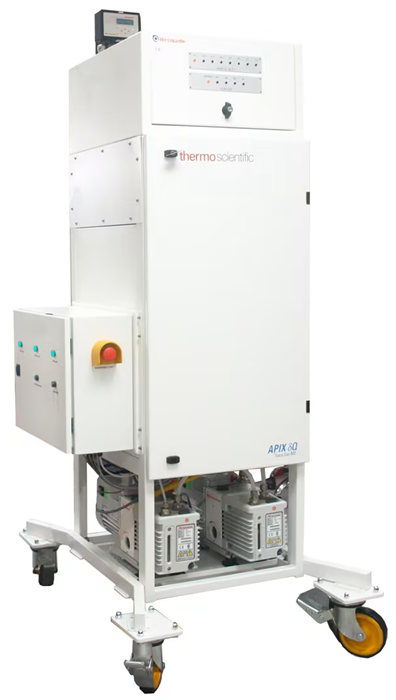

Thermo Scientific™ APIX/APIMS δQ and APIX/APIMS Quattro Ultra High Purity (UHP) Electronic Gas Analyzers can be used for routine continuous monitoring of contaminants, such as water and oxygen, to single-digit ppt levels.
These gas analyzers provide a cost-effective alternative to conventional quality control approaches, monitoring each bulk gas for a variety of possible contaminants while attaining lower detection limits (up to 100 times better) than any other technology.
- Industry standard communications protocol for plant control and integration
- Reliable, completely automated method for online quality control
- Fast online measurement (~ five seconds for entire analysis)
- High sensitivity with a lower detection capability of < 10 ppt
- Automatic switching and calibration
Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Recommended for:
- UHP Hydrogen
- UHP Nitrogen
- UHP Helium
- UHP Argon
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| Specifications |
| Analysis Time |
Cycle time: 2 minutes |
| Bulk Gas Suitability |
H2, N2, Ar, He |
| Description |
Electronic gas analyzer |
| Detection Noise |
100 MHz (pulse counting type) |
| Hertz |
100 MHz (pulse counting type) |
| Impurities Monitored |
H2, CH4, H2O, CO, N2, O2, Ar, CO2, Kr and Xe (depending on bulk gas) |
| Ion Source Background |
< 1 ppt |
| Measurement Method |
APIMS dB: 1x Triple filter; APIMS
Quattro: 4x Triple filter |
| Serial Connections |
RS232 Serial Port |
| Detection Limits |
< 10 ppt (component dependent) |
| Detector Type |
Pulse Counting Channel Electron Multiplier |
| Ion Source Type |
Atmospheric Pressure Ionization |
| Product Type |
Ultra High Purity Gas Analyzer |
| Unit Size |
Each |
