Protect employees with electronic personal dosimeters (EPDs), which provide real-time radiation monitoring in critical areas of the facility.
Compared to earlier EPD models, the Thermo Scientific™ EPD TruDose Electronic Personal Dosimeter offers improved accuracy, increased functionality, and simpler operation while efficiently monitoring gamma, beta and neutron radiation (depending on the model chosen) in settings needing radiation exposure oversight.

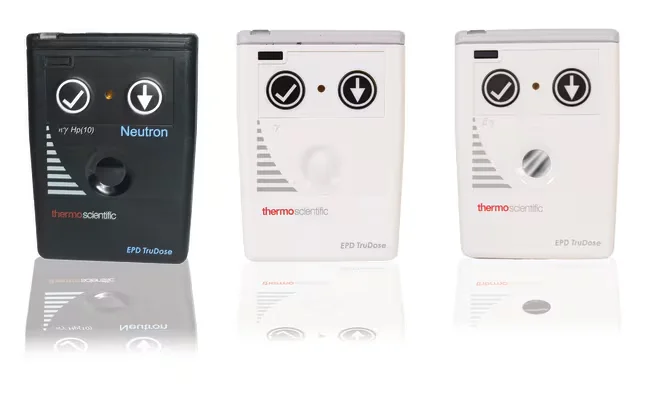

EPD TruDose Electronic Personal Dosimeter. Image Credit: Thermo Fisher Scientific – Handheld Elemental & Radiation Detection
EPD TruDose personal radiation monitors offer optional telemetry and interact effortlessly with a variety of systems, including ViewPoint, webREMS and other third-party products.

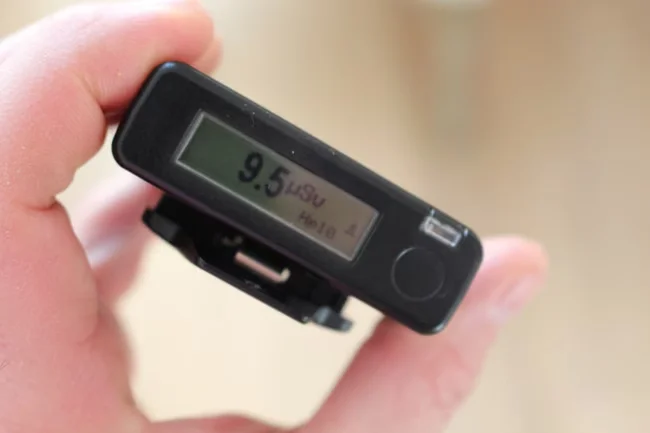

EPD TruDose Electronic Personal Dosimeter. Image Credit: Thermo Fisher Scientific – Handheld Elemental & Radiation Detection
Specifications
Source: Thermo Fisher Scientific – Handheld Elemental & Radiation Detection
| . |
. |
| Alarms |
Audible at 97 dB (A) at 20 cm (>80 dB(A) at 1 m), Vibration alarm function, Ultra-bright flashing red LED |
| Communications |

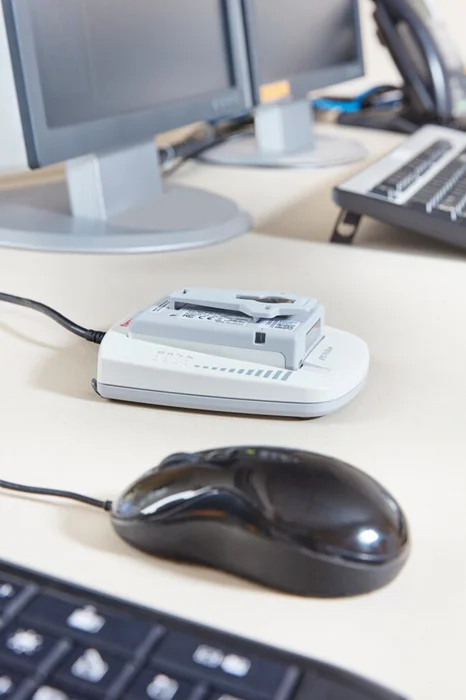

Desktop/IR Reader: USB connection. Compatible with EPD TruDose and EPD Mk2 models.
Bluetooth: Bluetooth Low Energy (BLE) up to 30 meters range from EPD to receiver. |
| Description |
EPD TruDose Electronic Personal Dosimeter |
| Dimensions (L x W x H) |
86 x 63 x 21 mm (3.37 x 2.48 x 0.83 in.) |
| IP Rating |
EPD TruDose (G) meets IP-67, EPD TruDose (BG) meets IP-65, EPD TruDose (NG) meets IP67 |
| Operating Temperature (English) |
-4 °F to +122 °F |
| Power Supply |
Single AA battery |
| Product Type |
EPD TruDose NG (neutron & gamma)
EPD TruDose BG (beta & gamma)
EPD TruDose G (gamma) |
| Warranty |
One Year |
| Weight (English) |
B/BG: 3.8 oz. with alkaline battery and clip NG: 4.0 oz. with alkaline battery and clip |
| Battery Type |
Single AA battery, 1.5 V Alkaline or 3.6 V Lithium Thionyl Chloride |
| Certifications/Compliance |
EPD TruDose & (NG) meets IP-67, EPD TruDose (BG) meets IP-65 |
| Operating Temperature (Metric) |
-20 °C to +50 °C |
| Relative Humidity |
20 % to 90 %, Non-Condensing |
| Weight (Metric) |
B/BG: 106 g with alkaline battery and clip NG: 114 g with alkaline battery and clip |
| Unit Size |
Each |
Product Overview
Uncompromised Radiological Performance
- At lower dosage rates, unprecedented sensitivity as low as 0.05 μSv/hr (0.005 mrem/hr) ensures exposure precision
- IP65 (EPD TruDose BG) and IP67 (EPD TruDose NG & G) offer better defense against water and dust
- Tolerance to electromagnetic fields is improved with integrated electromagnetic shielding
- Gamma, beta, and neutron rays are measured using multi-detector technology
- Uncompromised radiological performance
- Enhanced sensing of medical and industrial pulsed fields
- Enhanced range of dose rates
Increased User Efficiency
- By establishing warning thresholds, users can react before an alarm circumstance occurs
- Faster IrDA data transfer speeds provide increased throughput at checkpoints
- The real-time clock facilitates event documentation and troubleshooting
Simplified User Experience
- Easy to read graphical display
- Proactive, redundant, and configurable messaging
- Simple menu structure
