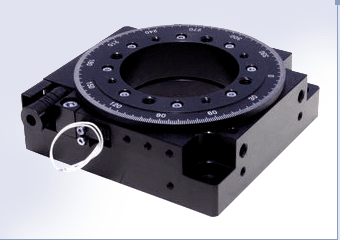

RTHM-100 Compact Motorized Rotary Stage from IntelLiDrives

Compact package and superior design

The RTHM-100 compact rotation stages are designed to rotate optical components and small tooling in confined spaces, such as laser cavities, disk texturing machines or manufacturing areas for fiber optical components and semiconductor devices.

The lightweight low profile design incorporates anodized aluminum body with pre-loaded ball bearings. This proprietary bearing design provides smooth rotation with minimal wobble. A precision ground worm gear produces consistent driving torque to the rotor and eliminates variations in the motor current.

Drive system and accurate positioning

RTHM-100 stages feature an angular resolution up to 0.1 arc-sec, which may be achieved with either DC Servo or stepper motors controls. The stages are equipped with a reference home sensor. RTHM-100 stages can run in continuous rotation mode and mounted horizontally or vertically

Features of the RTHM-100 compat rotation stage:

  • Zero backlash
  • Lightweight
  • Home sensor
  • High resolution
  • Unlimited rotation
  • High stability
  • Large center aperture
