Researchers show that shrinking crystalline silver films to a few atomic layers can enhance nonlinear light conversion, pointing to smaller, more efficient photonic technologies.
Paper: Few-atom-thick silver films for enhanced nanoscale nonlinear optics. Image credit: AI-generated image created using ChatGPT/OpenAI
The demand for ultra-compact optoelectronic devices has increased interest in new ways to enhance light-matter interactions at the nanoscale. A recent study, published as an Article in Press in Nature Communications, demonstrated that reducing crystalline silver films to just a few atomic monolayers significantly enhances thickness-normalized SHG conversion efficiency.
By utilizing quantum confinement in these atomically thin structures, researchers achieved nearly a two orders of magnitude improvement in thickness-normalized nonlinear optical conversion efficiency at an excitation wavelength of 1.8 μm. This advancement may provide a promising strategy for developing smaller, more efficient optoelectronic, nanophotonic, and quantum technology platforms.
Limitations of Conventional Nonlinear Platforms
Optical nonlinear effects are key in quantum information networks, ultrafast laser systems, and biomedical sensing. Traditionally, these effects have been observed in bulk crystals or in gaseous media, both of which require long interaction lengths and strict phase-matching conditions. Such needs make it challenging to integrate nonlinear optics into compact photonic devices.
To overcome these limitations, nanophotonics has relied on extrinsic approaches, such as plasmonic nanostructures and strong optical field confinement. While these methods reduce the interaction volume, they do not alter the material's intrinsic optical properties. An alternative approach is to engineer the electronic band structure directly to enhance light-matter interactions. Ultra-thin crystalline silver films provide a useful platform for this strategy by combining nanoscale light confinement with quantum-well state modulation.
![Interplay between electronic structure and nonlinear response in ultra-thin metal films. a, The simulated electronic density of states [23], represented here as a function of out-of-plane wave vector kz (bottom, horizontal scale) and energy (vertical state), shows an evolution from discrete quantum-well states (QWS) in thin films (N = 10 atomic monolayers (ML)) to a coalescing band at larger thicknesses (t = 30 ML). The discreteness of the electronic structure in the thin-film regime (upper-left scheme) enhances the nonlinear response (anharmonic excitation in response to harmonic light fields), in contrast to the more harmonic response associated with the parabolic band structure in the bulk limit (upper-right scheme). Here, aAg = 2.36 Å represents the atomic layer spacing. b, Schematic of the optical transmission geometry used to characterize the SHG signal. The ultra-thin silver film is excited from the silicon substrate, and SHG is collected in transmission. The silver film is a single-crystal with (111) orientation grown on the far silicon surface. A protecting silica capping layer covers the silver surface (not shown).](https://www.azonano.com/images/news/ImageForNews_41753_1783033024897191.png)

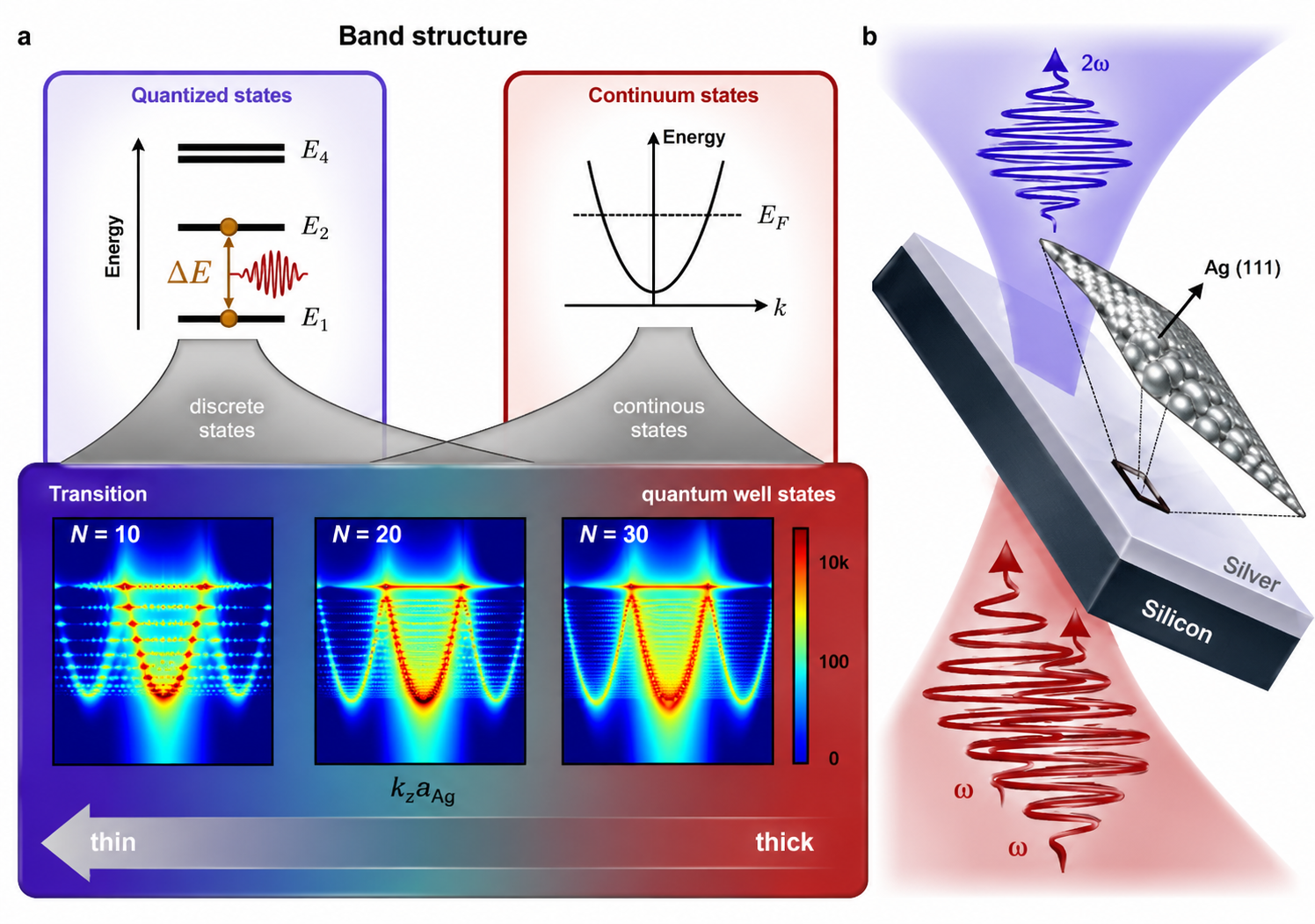

Interplay between electronic structure and nonlinear response in ultra-thin metal films. a, The simulated electronic density of states [23], represented here as a function of out-of-plane wave vector kz (bottom, horizontal scale) and energy (vertical state), shows an evolution from discrete quantum-well states (QWS) in thin films (N = 10 atomic monolayers (ML)) to a coalescing band at larger thicknesses (t = 30 ML). The discreteness of the electronic structure in the thin-film regime (upper-left scheme) enhances the nonlinear response (anharmonic excitation in response to harmonic light fields), in contrast to the more harmonic response associated with the parabolic band structure in the bulk limit (upper-right scheme). Here, aAg = 2.36 Å represents the atomic layer spacing. b, Schematic of the optical transmission geometry used to characterize the SHG signal. The ultra-thin silver film is excited from the silicon substrate, and SHG is collected in transmission. The silver film is a single-crystal with (111) orientation grown on the far silicon surface. A protective silica capping layer covers the silver surface (not shown). Image adapted from Jenke, P.K., et al. (2026). Few-atom-thick silver films for enhanced nanoscale nonlinear optics. Nature Communications. DOI: 10.1038/s41467-026-74804-4 using ChatGPT / OpenAI
Fabrication and Comprehensive Characterization
Researchers developed a scalable fabrication process based on the epitaxial growth of large-area crystalline silver (111) films on silicon substrates under ultra-high vacuum conditions. To protect the films from air-induced degradation, they applied a 1-nm silicon passivation layer that naturally oxidized to a stable silicon dioxide coating.
The films were characterized using multiple techniques. ARPES confirmed the formation of quantum-well states, while STM measured atomically flat surfaces with a root-mean-square roughness of about 1.52 monolayers for a 12-monolayer film. Characterization using low-energy electron diffraction, X-ray Photoelectron Spectroscopy">XPS, and SEM verified the crystal quality and ruled out film dewetting.
For optical measurements, the passivated samples were mounted at a 45° angle in a transmission focus-scan setup and exposed to linearly p-polarized, 200-femtosecond laser pulses at a repetition rate of 76 MHz. The excitation wavelength was then tuned to 1.8, 2.3, and 3.1 μm. The generated second-harmonic signal was isolated with optical filters and detected with silicon or indium gallium arsenide single-photon detectors. Additionally, DFT calculations were performed using the Vienna Ab-initio Simulation Package (VASP) to compute the band structure and effective electron masses. The nonlinear optical response was then modeled using a single-particle wavefunction technique.
Effects on Second-Harmonic Generation
The experiments showed a strong thickness-dependent increase in SHG as the silver films became thinner. At an excitation wavelength of 1.8 μm, reducing the film thickness from 30 to 11 atomic monolayers resulted in a nearly two-orders-of-magnitude increase in thickness-normalized conversion efficiency. This contrasts with conventional non-phase-matched nonlinear optics, where reducing the interaction volume typically lowers conversion efficiency. When the film thickness dropped below the optical skin depth of about 10 nm, its behavior approached that of a two-dimensional (2D) metallic screen rather than that of a bulk metal.
As the films became atomically thin, continuous electronic bands split into discrete quantum-well states, restricting electron motion perpendicular to the film. Under laser excitation, these electrons followed highly anharmonic trajectories, producing a stronger nonlinear optical response than that observed in bulk silver. Unlike earlier predictions of oscillating behavior with changing thickness, measurements confirmed a dominant non-oscillatory increase in conversion efficiency, indicating that the response depends on changes in the film's electronic structure.
The measured second-order nonlinear susceptibility was broadly consistent with the quantum-mechanical model, which captured the dominant increase with decreasing thickness, although the authors noted that the model did not fully reproduce all wavelength-dependent behavior. This demonstrates that quantum-well formation and interface symmetry breaking contribute to the enhanced optical response. The second-harmonic signal also exhibited the expected quadratic dependence on pump power, thereby confirming that the observed frequency conversion arose from a coherent second-order nonlinear process.
Advantages of Quantum-Engineered Silver Films
This quantum-engineered silver platform offers advantages over other 2D materials, such as transition-metal dichalcogenides and graphene. Although its measured nonlinear conversion efficiencies remain lower than those of some 2D materials, ultra-thin crystalline silver films exhibit higher electrical and thermal conductivities, can be easily patterned using established lithographic methods, and can be fabricated over centimeter-scale areas.
Unlike graphene, whose plasmonic response is limited to the mid-infrared range, these silver films operate across both the near-infrared and visible regions. Their broad spectral coverage and compatibility with optical cavities could support strong local field enhancement and enhanced nonlinear conversion. These characteristics make the platform suitable for future devices such as ultra-compact frequency converters, high-sensitivity biochemical sensors, and integrated nanophotonic, plasmonic, and quantum-technology platforms.
Future Directions in Nonlinear Optical Research
In summary, this study demonstrates that the electronic band structure of atomically thin silver films can overcome the classical scaling limits of nonlinear optics. The theoretical predictions captured the main thickness-dependent trend observed in the experimental results, confirming the increase in nonlinear susceptibility as silver films became thinner. More complete modeling will need to account for realistic non-parabolic band structures, atomistic d-band screening, and state-resolved damping. Further fabrication advances may also enable stable silver films thinner than 10 atomic monolayers, where simulations predict even stronger nonlinear optical enhancement.
