Static charges make the world’s most sensitive nanoresonators lose energy to nearby materials, revealing a hidden design limit for next-generation quantum and sensing devices.
Non-contact friction in ultracoherent nanomechanical resonators near dielectric materials. Image credit: AI-generated image created using ChatGPT/OpenAI
In a recent research article published in the journal Nature Physics, researchers identified a non-contact friction mechanism caused by nearby dielectrics that limits the mechanical quality factors of ultracoherent nanomechanical resonators, particularly affecting low-frequency modes through dielectric losses driven by the motion of static charges within microfabricated resonators.
Ultracoherent Resonator Challenges
Micro- and nanomechanical resonators have become essential tools in quantum technologies, precision sensing, and fundamental physics experiments due to their ability to couple with diverse degrees of freedom.
Recent advancements have led to the development of ultracoherent nanomechanical devices, some with mechanical quality factors (Q) exceeding 1 billion at room temperature, thereby surpassing the sensitivity of state-of-the-art atomic force microscope (AFM) cantilevers.
Many applications require positioning these resonators in close proximity to other systems, at sub-micron scales, such as optical cavities, spins, or superconducting circuits, to enable functional integration and readout. However, physical closeness to dielectrics introduces previously overlooked dissipation mechanisms that can limit their coherence.
While non-contact friction (NCF) due to dielectric loss and static charges has been observed in AFM cantilevers, its impact on ultracoherent nanomechanical resonators outside the AFM context has been largely overlooked.
This study investigates how the presence of nearby dielectric materials induces NCF-related dissipation, limiting the performance of these devices, particularly their low-frequency mechanical modes.
NCF Modeling and Measurements
The researchers utilized a combination of experimental measurements and theoretical modeling to analyze dielectric-induced mechanical loss in ultracoherent silicon nitride nanomechanical string resonators, including uniform strings suspended above dielectric substrates and binary-tree resonators integrated near photonic crystal cavities.
They examined newly fabricated string-and-integrated-resonator devices and applied their model to previously reported strained-engineered, hierarchical, and polygon-shaped resonators, each exhibiting distinct modal frequencies and effective masses ranging from a few to several tens of picograms. Quality factors were characterized as a function of the distance between the resonator and adjacent dielectric materials, including photonic crystal (PhC) cavities and the underlying substrate.
Ringdown measurements were performed under high vacuum to suppress gas-damping effects, while optical interferometry measured thermal motion and quantified mechanical dissipation rates. In practical terms, the team compared how rapidly different resonator modes stopped vibrating as device geometry, frequency, and separation from nearby materials changed. Calibrated thermal-force-noise measurements were also used to connect the increased linewidths to added mechanical loss. Finite element method (FEM) simulations were employed to compute mechanical mode shapes, susceptibilities, and NCF-induced energy dissipation in realistic device geometries.
These were complemented by a theoretical framework that models the interaction between resonator-distributed static charges and lossy dielectrics via complex frequency-dependent permittivity to quantify non-contact friction forces.
By comparing experimental data with analytical and numerical estimates, alternative loss mechanisms such as squeeze-film damping, local surface contamination, mechanical coupling to ancillary modes, conductive losses, and intrinsic thermal-electrodynamic damping were systematically ruled out.

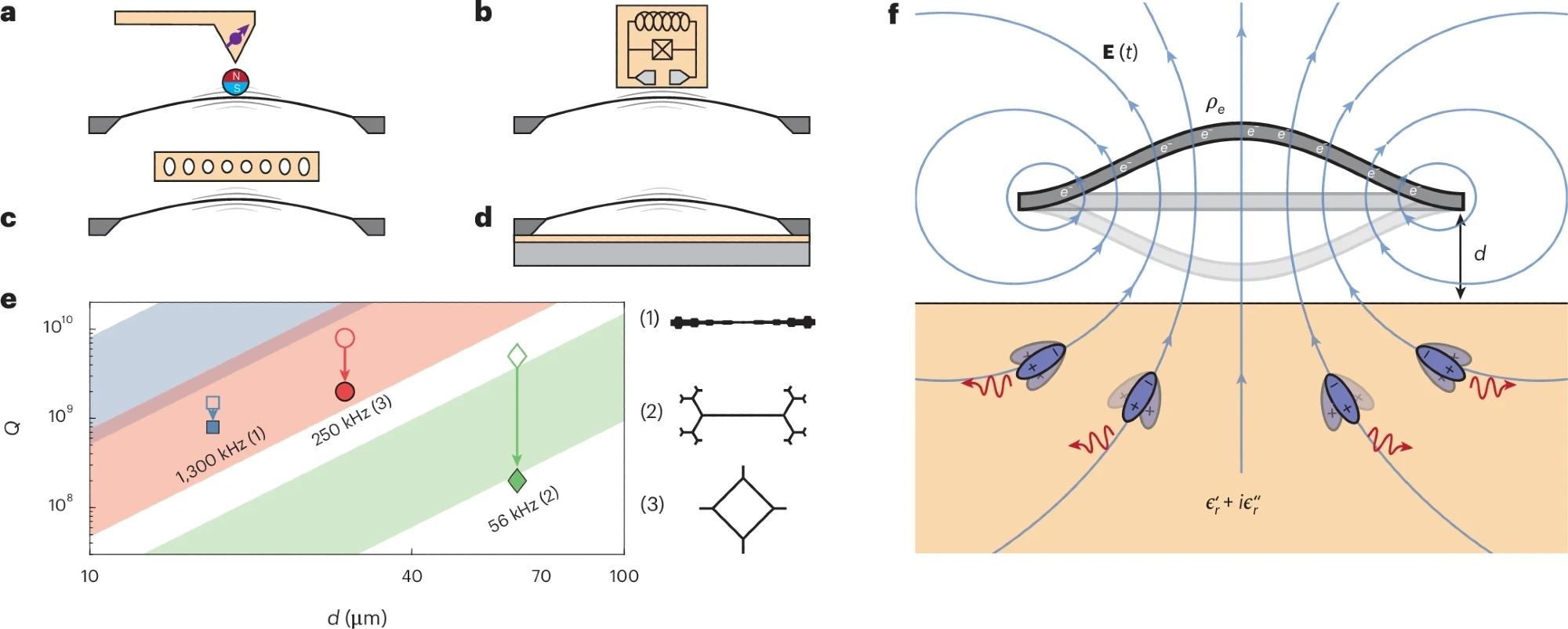

a–c, Schematics of platforms for coupling nanomechanical resonators to spins in solids (a), superconducting circuits (b), and nanophotonics cavities (c). In these platforms, dielectric materials are placed close to the resonator. d, Even in the absence of any external objects, the dielectrics on the substrate can also introduce loss. e, Dielectric loss within the substrate limits the quality factor of ultracoherent strings as a function of the string-substrate distance d (shown in f). The colors blue, red, and green correspond to (1) strained-engineered, (2) hierarchical, and (3) polygon designs, shown on the right-hand side. These modes have effective masses of 5, 46 and 24 pg, respectively. The ribbons correspond to the estimated NCF-limited quality factor for each design's frequency and geometry, suspended above a silicon substrate with a 4-nm native SiO2 layer. The filled and empty markers correspond to the measured and simulated quality factors, respectively, as adapted from the references. f, Concept of dielectric-induced mechanical loss. The charged nanomechanical resonator generates an electric field that polarizes the nearby dielectrics. This field couples the resonator's motion to the dielectric's lossy polarization, dissipating mechanical energy within the dielectric.
Dielectric-Induced Dissipation Analysis
The study demonstrated that the proximity of ultracoherent nanomechanical strings to dielectric materials substantially reduces their mechanical quality factors, especially for low-frequency modes in the tens to hundreds of kilohertz range.
A clear inverse proportionality was observed between the NCF damping coefficient and the resonator frequency, suggesting that the underlying mechanism is dielectric loss induced by resonator motion carrying static electric charges.
The authors found that the spatial electric field generated by the charged resonator polarizes the nearby dielectric, which, owing to its finite imaginary permittivity component, dissipates mechanical energy into the dielectric medium. This phenomenon aligns with previously known but seldom-studied non-contact friction observed in AFM cantilevers.
Their numerical modeling, accounting for surface or volume charge distributions and dielectric losses in the substrate layers, reproduced the observed quality-factor reductions across multiple mode shapes and designs, using physically constrained, fitted, or inferred parameters, including charge density and dielectric loss tangent.
Alternative conventional damping mechanisms were carefully investigated and excluded. Gas damping and squeeze-film effects were ruled out due to the high-vacuum environment and observed frequency dependence. Local surface contamination effects could not replicate the distinct frequency scaling of the loss.
Mechanical coupling to low-Q phononic cavity modes exhibited a resonant-frequency dependence inconsistent with the smooth 1/ω scaling. Conductive loss terms from finite charge mobility failed to reproduce the observed frequency dependence, given the known conductivities of silicon dioxide and silicon nitride.
In integrated photonic-crystal devices, the authors also found that modes with a central node experienced little Q reduction, supporting a local interaction between the resonator and nearby cavities.
Implications for Nanomechanics
This research elucidates the crucial role of dielectric-induced non-contact friction in limiting the mechanical quality factors of ultracoherent nanomechanical resonators operating near dielectric materials. By demonstrating that static charges on or in microfabricated resonators couple to the lossy polarization of nearby dielectrics, the study identifies a dissipation pathway that predominantly affects low-frequency mechanical modes.
The observed inverse frequency dependence of the NCF damping coefficient points to static or trapped charges on microfabricated resonator surfaces as a key limiting factor in achieving ultimate force sensitivity and quantum coherence in nanomechanics. These insights provide a foundational understanding for future efforts to integrate ultracoherent resonators into hybrid quantum and sensing architectures, underscoring the need to control charge states and nanoscale dielectric environments.
The work also suggests that the same charge-mediated coupling could be useful for probing dielectric losses in thin films or linking nanomechanical resonators to electric-field-sensitive quantum systems. Ultimately, the work pushes the boundaries of nanomechanics and precision measurement by revealing previously overlooked loss channels that must be overcome for advancing nano-enabled quantum technologies.
